The Critical Role of Cable Insulation Resistance (IR) Testing

Introduction

Electrical systems form the backbone of modern infrastructure, powering everything from residential buildings to industrial complexes. At the heart of these systems lie cables that transmit electrical energy from one point to another. While often overlooked, the integrity of these cables—particularly their insulation—is paramount to the safety and reliability of the entire electrical network.

Insulation Resistance (IR) refers to a cable's ability to confine electrical current to its intended path by resisting leakage through its insulating material. When this resistance deteriorates, it creates pathways for current leakage that can lead to system failures, electrical hazards, and even catastrophic incidents. This is why testing insulation resistance regularly has become an essential practice in electrical maintenance and safety protocols worldwide.

Why Insulation Resistance Matters

The primary purpose of insulation in electrical cables is to prevent the flow of current between conductors or from conductors to the ground. When working properly, this insulation ensures that electricity travels only where intended. However, various factors can compromise insulation integrity over time.

Consider a typical power cable in an industrial setting. Under ideal conditions, its insulation perfectly separates the current-carrying conductor from its surroundings. But in real-world applications, this insulation faces numerous challenges—environmental stressors, mechanical damage, aging, and thermal stress can all gradually weaken the insulating material. As this deterioration progresses, the cable's ability to resist current leakage diminishes, creating potentially dangerous situations.

Regular insulation resistance testing serves as an early warning system, detecting this deterioration before it reaches critical levels. By identifying problems early, maintenance teams can replace compromised cables before they cause system failures or safety hazards.

The Multifaceted Benefits of IR Testing

Protecting Lives and Property

Perhaps the most compelling reason for rigorous IR testing is safety. When insulation fails, it can lead to electric shocks, arc flashes, or electrical fires. In residential settings, this might endanger family members; in industrial environments, workers could face serious injury or death. Regular testing helps identify potential hazards before they manifest, creating safer environments for everyone.

For example, in a manufacturing facility with extensive cable networks, compromised insulation in a single cable section could expose workers to shock hazards or trigger equipment failures that lead to workplace accidents. Regular IR testing would identify this weakness before it becomes dangerous.

Ensuring Operational Continuity

In our increasingly electrified world, unexpected power interruptions can have severe consequences. In healthcare facilities, power failures can compromise critical care equipment. In data centers, they can lead to information loss and service disruptions. In manufacturing plants, they can halt production lines, resulting in significant financial losses.

Insulation resistance testing helps maintain operational continuity by identifying potential failure points before they cause system shutdowns. This proactive approach minimizes downtime and ensures that critical systems remain operational when needed most.

Extending Equipment Lifespan

Electrical systems represent substantial investments for organizations and homeowners alike. By identifying insulation weaknesses early, IR testing enables timely intervention that can significantly extend the service life of cables and connected equipment.

Compliance with Regulatory Standards

Beyond practical benefits, IR testing helps organizations meet regulatory requirements. Standards such as IEC 60364, IEEE 400, and BS 7671 establish minimum insulation resistance values for different applications. Regular testing ensures compliance with these standards, helping organizations avoid fines and legal complications while maintaining their reputation for safety and reliability.

Understanding the IR Testing Process

The Science Behind the Test

Insulation resistance testing operates on a simple principle: applying a known voltage to a cable's insulation and measuring the resulting current leakage. Using Ohm's Law (R = V/I), the tester calculates resistance values, typically expressed in megohms (MΩ).

The test involves applying a DC voltage—commonly 500V, 1000V, or 2500V depending on the cable's rating—across the insulation for a specified duration (typically one minute). The longer the test duration, the more reliable the results, as it allows time for absorption current to stabilize and provides a truer reading of insulation condition.

Factors Influencing Test Results

Several factors can affect insulation resistance measurements, making it essential to understand and account for them when interpreting results:

1. Temperature Effects: Insulation resistance decreases as temperature increases. For accurate comparison over time, readings should be converted to a standard temperature (usually 20°C).

2. Moisture and Contamination: Even microscopic moisture levels or contamination can create conductive paths that dramatically reduce insulation resistance. This is why proper preparation and cleaning before testing are crucial.

3. Cable Characteristics: Longer cables naturally exhibit lower insulation resistance due to the increased surface area for leakage. Similarly, different insulation materials have different baseline resistance values.

4. Aging and Deterioration: Over time, insulation materials can become brittle, crack, or absorb moisture, all of which reduce their resistance. The rate of this deterioration depends on operating conditions, environmental factors, and the quality of the insulation material.

Conducting an Effective IR Test

A proper insulation resistance test follows a methodical approach:

Preparation Phase

Before applying any test voltage, ensure the cable is completely de-energized and disconnected from all equipment. This step is crucial not only for accurate readings but also for safety. Clean and dry the cable terminations thoroughly to remove any surface contamination that might affect the readings.

Test Configuration

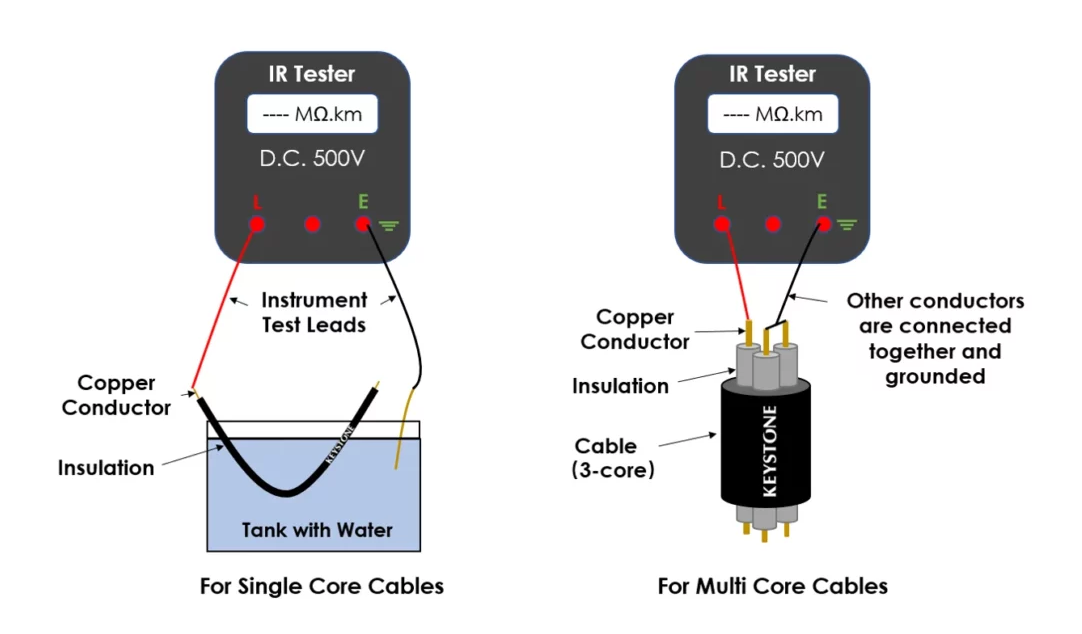

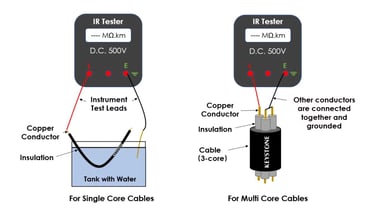

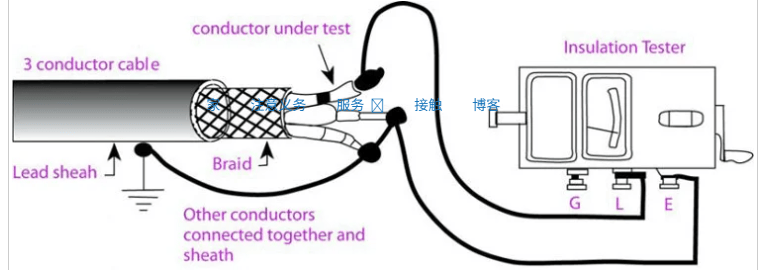

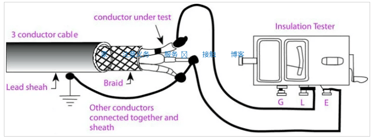

Connect the megohmmeter's positive terminal to the conductor being tested and the negative terminal to ground or shield. For multi-conductor cables, test each conductor against all other conductors and ground. If your equipment has a guard terminal, use it to eliminate surface leakage from the measurement for more accurate readings.

Selecting the Right Voltage

The test voltage must be appropriate for the cable's rating:

• For cables rated up to 1 kV, use a 1000V test voltage

• For cables rated between 1 and 5 kV, use 2500V

• For cables rated above 5 kV, use 5000V

Using too low a voltage may fail to detect weaknesses, while too high a voltage could damage already weakened insulation.

The Testing Process

Apply the test voltage steadily for the required duration. Most standards recommend a one-minute test, though longer tests can provide additional information about insulation condition. Record both the test voltage and the measured resistance value.

Interpreting Results

Compare the measured values against industry standards and the cable's historical test results. Generally accepted minimum values include:

• Low-voltage cables: at least 1 MΩ

• Medium-voltage cables: at least 100 MΩ

• High-voltage cables: at least 1000 MΩ

However, the trend in measurements over time often provides more valuable information than absolute values. A steady decline in insulation resistance, even if still above minimum thresholds, can indicate developing problems that warrant further investigation.

Post-Test Safety Measures

After testing, properly discharge the cable to eliminate any stored charge. This step is vital for safety, as capacitive cables can hold dangerous charges even after the test equipment is disconnected. Only after confirming complete discharge should you reconnect the cable to its normal configuration.

Advanced Testing Approaches

While the basic insulation resistance test provides valuable information, advanced testing techniques can offer deeper insights into insulation health:

Time-Resistance Method

This approach involves taking measurements at regular intervals (typically at 30 seconds, 1 minute, and 10 minutes) during a single test. In healthy insulation, the resistance typically increases over time as the insulation absorbs the applied voltage—a phenomenon known as dielectric absorption. A flat or decreasing curve may indicate moisture or contamination issues.

Polarization Index Test

The Polarization Index (PI) is the ratio of the 10-minute resistance reading to the 1-minute reading. A PI value less than 1 suggests serious insulation problems, while values above 2 generally indicate good insulation health. This test is particularly valuable for detecting moisture or contamination issues that might not be immediately apparent in standard tests.

Dielectric Absorption Ratio

Similar to the PI, the Dielectric Absorption Ratio (DAR) compares readings at 60 seconds to those at 30 seconds. This quicker test provides a faster assessment of insulation condition, with values below 1.25 suggesting potential problems.

Implementing an Effective IR Testing Program

To maximize the benefits of insulation resistance testing, organizations should develop comprehensive testing programs that include:

Regular Scheduling

Establish testing frequencies based on equipment criticality, operating conditions, and historical performance. Critical systems may require quarterly testing, while less critical applications might be tested annually.

Consistent Methodology

Standardize testing procedures to ensure comparable results over time. Document test conditions, including temperature and humidity, as these factors can significantly influence readings.

Comprehensive Documentation

Maintain detailed records of all test results, including test conditions and any observations. These records establish baseline performance and help identify trends that might indicate developing problems.

Response Protocols

Develop clear guidelines for addressing test results that fall below acceptable thresholds or show concerning trends. These protocols should specify required actions, timeframes, and responsibilities.

Conclusion

The insulation resistance test stands as one of the most valuable diagnostic tools in electrical maintenance. By providing insights into the hidden condition of cable insulation, it helps prevent unexpected failures, protects lives and property, and ensures the reliable operation of electrical systems.

As our dependence on electrical systems continues to grow, so too does the importance of maintaining their integrity. Regular insulation resistance testing represents a small investment of time and resources that yields substantial returns in safety, reliability, and system longevity.

For facility managers, maintenance professionals, and anyone responsible for electrical systems, implementing robust IR testing protocols is not merely a best practice—it's an essential component of responsible system management. In the world of electrical maintenance, few preventive measures offer as much value as this simple yet powerful test.
