Type 209 Flexible Mining Cables: Powering Australia's Open-Cut Mining Operations

Introduction

When you think about the massive scale of Australia's open-cut mining operations, it's easy to focus on the enormous draglines, towering shovels, and kilometres of conveyor belts that define these industrial landscapes. However, beneath the surface of these impressive operations lies a critical component that keeps everything running smoothly: the humble yet essential trailing cable. These specialised power cables represent the circulatory system of modern mining, delivering electricity to mobile equipment across challenging terrain and harsh environmental conditions.

Trailing cables in mining serve as the vital link between stationary power sources and mobile mining equipment. Unlike fixed installations where cables can be permanently secured and protected, open-cut mining operations require flexible, durable cables that can withstand constant movement, environmental extremes, and the demanding operational conditions that characterise Australia's mining industry. The ability of these cables to maintain reliable electrical connections whilst equipment moves across uneven terrain, through dust storms, and under intense UV radiation makes them indispensable to mining productivity.

The Type 209 Flexible Mining Cable stands as a testament to Australian engineering excellence, specifically designed to meet the unique challenges of our continent's open-cut operations. Rated from 1.1 kV to 11 kV, these cables represent decades of refinement in mining cable technology, combining the flexibility needed for mobile equipment with the electrical performance required for high-power applications. Their design philosophy centres on adaptability to Australia's diverse mining environments, from the red dust of Western Australian goldfields to the challenging conditions of Queensland's coal regions.

Understanding why Type 209 cables have become the standard for Australian mining requires appreciating the unique characteristics of open-cut operations in this country. The sheer scale of Australian mines, combined with the harsh environmental conditions and the need for maximum operational efficiency, creates demands that ordinary industrial cables simply cannot meet. Type 209 cables bridge this gap, offering the perfect balance of mechanical durability, electrical performance, and environmental resistance that Australia's mining industry demands.

Context: Australia's Major Open-Cut Mines

Open-cut mining, also known as open-pit or strip mining, represents the backbone of Australia's mineral extraction industry. This method involves removing overburden and ore from the surface in a series of benches or steps, creating vast excavations that can extend for kilometres and reach depths of several hundred metres. The scale of these operations in Australia is truly staggering, reflecting both the abundance of near-surface mineral resources and the advanced mining technologies that have been developed to extract them efficiently.

The process begins with careful geological surveying and planning, followed by the systematic removal of overburden using massive earthmoving equipment. Once ore-bearing rock is exposed, specialised mining equipment including draglines, hydraulic shovers, and haul trucks work in coordinated patterns to extract, transport, and process millions of tonnes of material annually. This process requires continuous, reliable electrical power delivered to mobile equipment operating across terrain that changes daily as mining progresses.

Australia's open-cut mining industry operates on a scale that dwarfs similar operations in most other countries. The combination of abundant mineral resources, advanced mining technology, and favourable geological conditions has created some of the world's largest and most productive open-cut mines. These operations not only contribute significantly to Australia's economy but also showcase the engineering excellence and operational efficiency that characterise Australian mining.

The Super Pit, officially known as the Fimiston Gold Mine in Kalgoorlie, Western Australia, stands as perhaps the most iconic example of Australian open-cut mining excellence. Measuring approximately 3.5 kilometres long, 1.5 kilometres wide, and reaching depths of around 600 metres, the Super Pit represents one of the largest gold mines in the world. The scale of this operation becomes apparent when you consider that the pit is visible from space and that its daily operations involve moving hundreds of thousands of tonnes of material using some of the largest mobile mining equipment ever constructed.

The electrical requirements of the Super Pit are equally impressive, with multiple high-capacity trailing cables required to power the massive draglines, shovels, and auxiliary equipment that keep the operation running twenty-four hours a day. The harsh conditions of the Western Australian goldfields, including extreme temperatures, intense UV radiation, and abrasive dust, create particular challenges for electrical infrastructure that Type 209 cables are specifically designed to address.

Moving east to New South Wales, the Cadia-Ridgeway operation represents Australia's second-largest open-cut mine and a major producer of copper and gold. Located in the Central Tablelands of NSW, this operation demonstrates the versatility of open-cut mining across different geological and climatic conditions. The Cadia operation's focus on copper-gold production requires different processing techniques and equipment configurations compared to gold-focused operations, but the fundamental need for reliable, flexible power delivery remains constant.

The electrical infrastructure at Cadia must support not only the primary extraction equipment but also the complex processing facilities required for copper-gold production. This creates additional demands for cable systems that can deliver power reliably across varying operational conditions whilst maintaining the flexibility needed for mobile equipment operations.

In Queensland's Bowen Basin, the Saraji Coal Mine represents the scale and complexity of Australia's coal mining operations. With annual production of approximately 10 million tonnes of coking coal, Saraji demonstrates the enormous throughput capabilities of modern open-cut mining. The Bowen Basin's humid subtropical climate presents different challenges compared to the arid conditions of Western Australian operations, with higher humidity, more frequent precipitation, and different temperature cycling patterns that cable systems must accommodate.

The coal mining environment also presents unique electrical challenges, including the need for enhanced safety systems and specialised equipment designed for potentially explosive atmospheres. Type 209 cables used in coal mining applications must meet additional safety requirements whilst maintaining the performance characteristics needed for large-scale operations.

Why Cable Matters in Australian Open-Cut Mines

The massive machinery that defines Australian open-cut mining operations creates electrical demands that few other industries can match. Draglines, the giants of the mining world, can consume several megawatts of power during operation, requiring cable systems capable of delivering enormous amounts of electrical energy safely and reliably. These machines, some weighing over 8,000 tonnes and capable of moving 100 cubic metres of material in a single bucket, represent the pinnacle of mobile mining equipment engineering.

Understanding the power requirements of this equipment helps explain why cable selection becomes so critical. A typical mining shovel might require 2-4 megawatts of power during peak operation, whilst conveyor systems can demand continuous power delivery over distances of several kilometres. The electrical infrastructure supporting these operations must not only deliver this power reliably but also accommodate the constant movement and repositioning that characterises open-cut mining operations.

The environmental conditions in Australian open-cut mines create challenges that extend far beyond simple power delivery. The intense UV radiation experienced in many Australian mining regions can degrade cable sheathing materials over time, whilst the extreme temperature variations between day and night create thermal cycling stresses that can lead to material failure. Dust and abrasive particles, particularly the fine silica dust common in many mining operations, can work their way into cable connections and cause gradual degradation of electrical performance.

Impact resistance represents another critical consideration in mining cable selection. The dynamic environment of open-cut mining means that cables face constant risk of impact from falling rocks, contact with heavy machinery, and the general rough handling that characterises mining operations. Traditional industrial cables simply cannot withstand these conditions over the extended periods required for mining operations, making specialised mining cables like Type 209 essential for operational reliability.

The choice between trailing cables and reeling systems represents a fundamental design decision in mining operations. Whilst reeling systems offer some advantages in terms of cable protection and organisation, the flexibility and operational simplicity of trailing cables make them preferable for many applications. Trailing cables allow equipment to move freely across mining terrain without the mechanical complexity and potential failure points associated with reeling systems, whilst also providing better accommodation for the irregular movement patterns common in mining operations.

Mobile equipment operations in open-cut mines require cable systems that can accommodate not only regular movement but also the rapid repositioning needed to respond to changing mining conditions. When a dragline must relocate to a new operating position, or when mining equipment needs to avoid unstable ground conditions, trailing cables provide the flexibility needed for quick response without interrupting power delivery.

Product Structure & Electrical Parameters

The Type 209 Flexible Mining Cable represents decades of engineering refinement specifically focused on meeting the demanding requirements of Australian mining operations. Compliance with Australian and New Zealand standards AS/NZS 1802, AS/NZS 1125, and AS/NZS 3808 ensures that these cables meet the stringent safety and performance requirements established for mining applications, whilst also providing compatibility with standard mining electrical systems and practices.

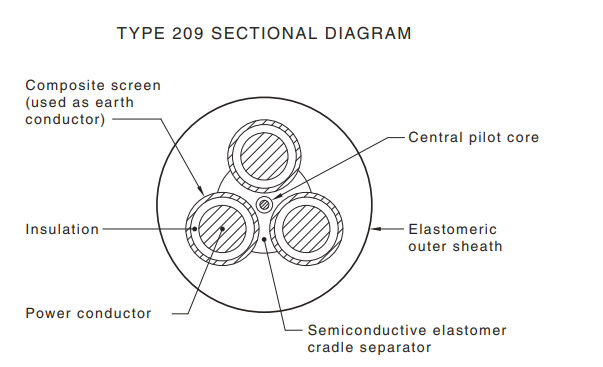

Understanding the construction architecture of Type 209 cables helps explain their superior performance in mining applications. At the heart of each cable lies stranded tinned annealed copper conductors, chosen for their excellent electrical conductivity, flexibility, and resistance to corrosion. The stranding pattern and wire gauge are carefully optimised to provide maximum flexibility whilst maintaining low electrical resistance, ensuring efficient power delivery even under mechanical stress.

The insulation system employs EPR (Ethylene Propylene Rubber) technology, specifically the R-EP-90 formulation designed for mining applications. This insulation provides excellent electrical properties across a wide temperature range whilst maintaining flexibility under the mechanical stresses common in mining operations. The R-EP-90 designation indicates that the insulation can operate continuously at temperatures up to 90°C, providing margin for the elevated temperatures that can occur in mining equipment operations.

Conductor and sheath screens represent critical safety features in mining cable design. The semi-conductive screening layers help control electrical stress distribution within the cable, preventing the formation of electrical stress concentrations that could lead to insulation breakdown. In higher voltage variants (3.3 kV and above), these screening systems become particularly important for maintaining long-term electrical integrity under the challenging conditions found in mining operations.

The heavy-duty PCP (Polychloroprene) and CPE (Chlorinated Polyethylene) sheath provides the primary mechanical and environmental protection for Type 209 cables. This sheath material is specifically formulated to resist UV radiation, chemical exposure, abrasion, and the extreme temperature variations common in Australian mining operations. The sheath also incorporates fill compounds that occupy the spaces between cable cores, providing additional mechanical support and preventing moisture ingress.

A central extensible pilot wire represents an important safety feature in Type 209 cable design. This pilot wire system allows continuous monitoring of cable integrity, providing early warning of potential cable damage before catastrophic failure occurs. In mining operations where cable failure can result in significant downtime and safety risks, this monitoring capability provides invaluable operational assurance.

The voltage rating variants of Type 209 cables reflect the diverse electrical requirements of mining operations. Type 209.1 cables, rated at 1.1 kV, serve applications where flexibility and durability are paramount but voltage requirements are modest. These cables often power auxiliary equipment, lighting systems, and smaller mobile machinery where their superior mechanical properties provide operational advantages over standard industrial cables.

Type 209.3 cables, rated at 3.3 kV, represent perhaps the most common variant in Australian mining operations. The 3.3 kV rating provides an excellent balance between power delivery capability and cable flexibility, making these cables suitable for medium-power mining equipment including many shovels, smaller draglines, and conveyor systems. The electrical characteristics at this voltage level also provide good efficiency for medium-distance power transmission within mining operations.

For larger equipment and longer transmission distances, Type 209.6 (6.6 kV) and Type 209.11 (11 kV) variants provide the higher voltage capabilities needed to minimise transmission losses whilst maintaining the mechanical properties required for mobile equipment applications. These higher voltage variants incorporate enhanced insulation systems and screening arrangements designed to handle the increased electrical stresses associated with higher operating voltages.

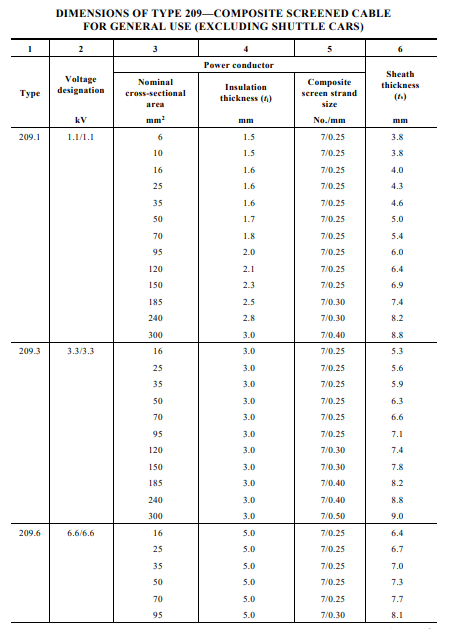

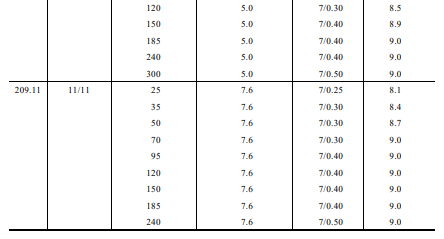

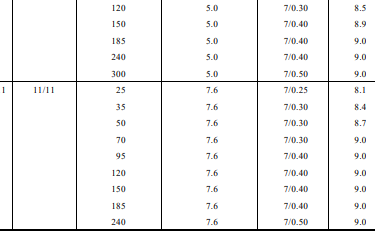

The electrical specifications for Type 209 cables reflect careful optimization for mining applications. Insulation thickness varies by voltage rating and conductor size, providing appropriate electrical clearances whilst minimising overall cable diameter and weight. The nominal outer diameter specifications ensure compatibility with standard mining equipment cable handling systems whilst providing adequate protection for the internal cable components.

Short-circuit and earth-fault ratings represent critical safety parameters in mining cable design. The AS/NZS standards specify minimum performance levels for these fault conditions, ensuring that cables can safely handle abnormal electrical conditions until protective systems can operate to clear faults. This capability is particularly important in mining operations where fault conditions can develop rapidly and protective system coordination becomes critical for personnel safety.

Application Examples in Open-Cut Mines

The practical application of Type 209 cables in major Australian mining operations demonstrates their versatility and reliability across diverse operational conditions. At the Super Pit in Kalgoorlie, these cables serve as the primary power delivery system for the massive draglines that define the operation's material handling capabilities. The extreme conditions of the Western Australian goldfields, including temperatures that can exceed 45°C in summer and intense UV radiation year-round, provide a demanding test environment for cable performance.

Dragline operations at the Super Pit require cables capable of delivering several megawatts of power whilst accommodating the complex movement patterns of these enormous machines. As draglines traverse the mining benches, their trailing cables must flex and bend repeatedly without compromising electrical integrity or mechanical durability. The Type 209 design's emphasis on flexibility and environmental resistance makes it particularly well-suited to these demanding applications.

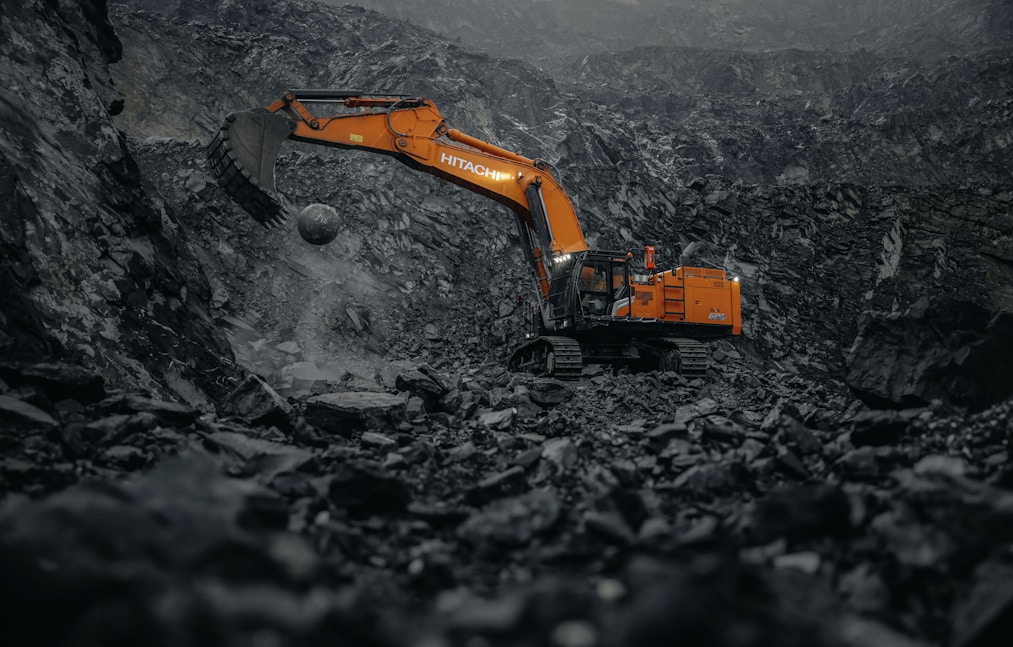

Shovel operations represent another critical application for Type 209 cables in open-cut mining. The rapid, repetitive motions of hydraulic shovels create mechanical stresses that can quickly degrade inferior cable designs. Type 209 cables' construction, with its emphasis on conductor flexibility and robust sheathing systems, provides the durability needed for continuous shovel operations whilst maintaining electrical performance over extended service periods.

Conveyor systems in operations like Saraji Coal Mine present different challenges for cable applications. These systems often require power delivery over significant distances, sometimes several kilometres, whilst maintaining the flexibility needed for periodic system modifications and expansions. Type 209 cables' electrical characteristics make them suitable for these longer-distance applications, whilst their mechanical properties ensure reliable operation despite the vibration and movement inherent in conveyor operations.

The Cadia-Ridgeway operation's focus on copper-gold production creates unique applications for Type 209 cables in supporting processing equipment that must operate continuously under demanding conditions. Crushers, mills, and flotation systems require reliable power delivery whilst operating in environments characterised by high dust levels, chemical exposure, and continuous vibration. The chemical resistance of Type 209 cables' sheathing systems makes them particularly suitable for these processing applications.

Pump operations represent another significant application area for Type 209 cables in Australian mining. Dewatering systems, essential for maintaining safe and productive mining conditions, often require pumps positioned in remote locations with power delivery over considerable distances. The electrical efficiency of Type 209 cables helps minimise power losses in these applications, whilst their environmental resistance ensures reliable operation in the challenging conditions often found at pump installations.

The compatibility of Type 209 cables with mobile equipment represents a key advantage in modern mining operations. Unlike reeling systems that can restrict equipment movement and create additional mechanical complexity, trailing cable systems allow full operational flexibility whilst providing reliable power delivery. This compatibility becomes particularly important in mining operations that emphasise rapid equipment repositioning to respond to changing geological conditions or operational requirements.

Recent automation developments in Australian mining, such as the autonomous haul truck systems deployed at operations like Goonyella Riverside, create new challenges and opportunities for cable applications. These systems require not only reliable power delivery but also sophisticated control and communication capabilities that must operate reliably in the challenging mining environment. Type 209 cables' pilot wire systems and electrical performance characteristics make them suitable for supporting these advanced mining technologies.

Common Mining-Site Issues & FAQs

Question 1: What should we do if a cable gets damaged by a haul truck or other heavy equipment?

Physical damage from mobile equipment represents one of the most common challenges facing mining cable systems. When a haul truck runs over a trailing cable or when falling rocks impact cable runs, the immediate response determines both safety outcomes and operational continuity. The first priority must always be electrical safety, which means immediately de-energising the affected circuit and ensuring that all personnel maintain safe distances from potentially energised cable sections.

Assessment of cable damage requires trained personnel who understand both the electrical and mechanical aspects of cable construction. Surface damage to the outer sheath may not immediately compromise electrical integrity, but it can create pathways for moisture ingress and environmental contamination that will lead to eventual failure. More severe damage that penetrates to conductor insulation requires immediate cable replacement to prevent electrical faults that could endanger personnel and equipment.

Prevention strategies prove more effective than damage response in most cases. Protective metallic armour can be installed over cable sections that traverse high-traffic areas, though this protection comes at the cost of reduced flexibility and increased weight. Route planning that minimises cable exposure to mobile equipment traffic represents a more fundamental approach, involving coordination between mining operations and maintenance personnel to establish safe cable corridors.

Regular inspection programmes help identify developing problems before they result in catastrophic failure. These inspections should focus on areas where cables cross equipment travel routes, pass through confined spaces, or experience repeated flexing cycles. Establishing replacement schedules based on inspection findings helps maintain operational reliability whilst avoiding the costs and safety risks associated with emergency cable repairs.

Question 2: How can we prevent electrical faults such as short circuits and earth faults in our cable systems?

Electrical fault prevention in mining cable systems requires a comprehensive approach that addresses both the inherent characteristics of the cables themselves and the environmental conditions in which they operate. Regular electrical testing forms the foundation of any effective fault prevention programme, with insulation resistance testing, capacitance measurements, and pilot wire monitoring providing early indication of developing problems.

Insulation resistance testing should be performed at regular intervals using appropriate high-voltage test equipment. The test results should be trended over time to identify gradual degradation that might not be apparent from single measurements. Sudden changes in insulation resistance often indicate moisture ingress, contamination, or physical damage that requires immediate attention to prevent fault development.

Earth screening systems in Type 209 cables provide important fault protection capabilities, but they require proper installation and maintenance to function effectively. Screen connections must be properly terminated and maintained to ensure effective fault current paths, whilst screen continuity testing helps verify that protective systems will operate correctly during fault conditions. Poor screen connections can actually worsen fault conditions by creating points of high electrical stress concentration.

Pilot wire monitoring systems offer continuous cable condition assessment during operation. These systems can detect developing insulation problems, moisture ingress, and mechanical damage before they progress to catastrophic failure. Proper pilot wire system setup requires understanding of both the monitoring equipment capabilities and the normal variations in cable parameters that occur during routine operations.

Environmental protection measures can significantly reduce fault development rates. Proper cable support systems that minimise mechanical stress, protection from direct UV exposure, and attention to drainage in areas where cables might be exposed to standing water all contribute to extended cable service life and reduced fault frequency.

Question 3: How do we address voltage drop issues over long cable runs?

Voltage drop in mining cable applications represents a complex engineering challenge that affects both operational efficiency and equipment performance. Understanding the relationship between cable resistance, current demand, and acceptable voltage variations forms the basis for effective voltage drop management in mining operations.

The fundamental approach to managing voltage drop involves selecting cable variants with appropriate voltage ratings for the transmission distances and power requirements involved. Type 209.6 (6.6 kV) and Type 209.11 (11 kV) variants provide higher voltage capabilities that allow the same power to be transmitted at lower currents, significantly reducing resistive losses over long cable runs. This approach proves particularly effective for fixed installations such as conveyor systems and processing equipment that require power delivery over substantial distances.

Conductor sizing represents another important consideration in voltage drop management. Larger conductor cross-sections provide lower resistance per unit length, reducing voltage drop for any given current demand. However, larger conductors also result in heavier, less flexible cables that may be more difficult to handle and install. The optimum conductor size represents a balance between electrical performance, mechanical properties, and economic considerations.

Load management techniques can help minimise voltage drop effects in mining operations. Coordination of equipment startup sequences to avoid simultaneous high-current demands, use of soft-start systems to reduce initial current surges, and load sharing between multiple cable circuits all contribute to improved voltage regulation. These techniques prove particularly effective in operations where multiple large pieces of equipment operate from common supply points.

Power factor correction can provide significant improvements in voltage drop performance for mining operations with substantial motor loads. Mining equipment often operates at relatively poor power factors due to the nature of the loads involved, and power factor correction systems can reduce the current required for any given real power demand, thereby reducing voltage drop effects.

Question 4: How do Type 209 cables handle chemical exposure and weather resistance in challenging environments like the Bowen Basin?

The chemical and environmental resistance of Type 209 cables reflects decades of development specifically focused on Australian mining conditions. The PCP/CPE sheath system provides excellent resistance to the range of chemicals commonly encountered in mining operations, including hydraulic fluids, diesel fuel, various processing chemicals, and the corrosive effects of salt-laden atmospheric conditions in coastal mining regions.

UV resistance represents a critical performance characteristic for cables used in Australian open-cut mining operations. The intense solar radiation experienced across much of Australia can rapidly degrade inferior cable materials, leading to sheath cracking, insulation deterioration, and eventual electrical failure. Type 209 cables incorporate UV-stabilised sheath compounds that maintain their properties over extended exposure periods, though periodic inspection remains important for early detection of any degradation effects.

Moisture resistance becomes particularly important in high-humidity environments such as the Bowen Basin, where tropical and subtropical conditions can create challenging operating environments. The construction of Type 209 cables incorporates moisture barriers and fill compounds designed to prevent water ingress even when minor sheath damage occurs. However, proper cable termination techniques and regular inspection of termination points remain critical for maintaining moisture resistance over extended service periods.

Temperature cycling effects in Australian mining operations can be severe, with daily temperature variations of 30°C or more common in many regions. Type 209 cables' construction addresses these thermal cycling stresses through careful selection of materials with compatible thermal expansion characteristics and construction techniques that accommodate thermal movement without inducing mechanical stress concentrations.

Chemical resistance testing forms an important part of cable qualification for specific mining applications. Different mining operations may involve exposure to different chemical environments, and verification of cable compatibility with specific chemicals can prevent premature failure and safety hazards. The broad chemical resistance of Type 209 cables makes them suitable for most mining applications, but specific high-concentration chemical exposures may require additional protective measures.

Question 5: What are the key indicators that a Type 209 cable is approaching end-of-life and needs replacement?

Recognising end-of-life indicators in mining cables requires understanding both the gradual degradation processes that affect cable performance and the sudden failure modes that can occur in mining operations. Effective cable condition monitoring programmes focus on tracking multiple parameters over time to identify trends that indicate approaching end-of-life conditions.

Insulation degradation represents one of the most important end-of-life indicators in mining cables. This degradation typically manifests as gradually decreasing insulation resistance measurements, increasing dielectric absorption values, and changes in cable capacitance characteristics. These electrical parameter changes often occur gradually over months or years, providing advance warning of approaching end-of-life conditions when proper monitoring programmes are in place.

Physical sheath condition provides visible indicators of cable aging and environmental exposure effects. Cracking, hardening, or discoloration of the outer sheath material indicates degradation that may compromise the cable's environmental protection capabilities. While surface sheath changes may not immediately affect electrical performance, they often signal that end-of-life conditions are approaching and replacement planning should begin.

Pilot wire system performance can provide early indication of developing cable problems. Increasing pilot wire resistance, intermittent continuity issues, or changes in pilot wire insulation characteristics often indicate moisture ingress, corrosion, or mechanical damage that will eventually affect main conductor performance. Since pilot wire systems are designed to provide early warning, changes in their performance should be taken seriously as end-of-life indicators.

Mechanical flexibility degradation becomes apparent through increased stiffness, difficulty in cable handling, or visible signs of stress concentration at bend points. Mining cables that no longer bend smoothly or that show signs of conductor bunching or sheath separation at bend points are approaching end-of-life conditions that could lead to sudden failure during operation.

Increased fault frequency often signals approaching end-of-life conditions in mining cable systems. Cables that begin experiencing intermittent faults, nuisance trips of protective systems, or increased ground fault currents may be developing insulation problems that will progress to complete failure if not addressed through replacement.

Question 6: How should Type 209 cables be properly stored and deployed in mining operations?

Proper storage and deployment techniques significantly affect the service life and performance of Type 209 cables in mining applications. Cable storage requirements begin with environmental protection, particularly protection from direct UV exposure that can degrade sheath materials even before installation. Storage areas should provide shade and adequate ventilation whilst protecting cables from mechanical damage and contamination.

Temperature control during storage helps preserve cable flexibility and prevents thermal damage to insulation and sheath materials. Extreme temperatures during storage can cause permanent changes in material properties that affect subsequent performance, making climate-controlled storage areas preferable for long-term cable storage. When climate control is not available, storage methods that minimise temperature extremes and thermal cycling should be employed.

Proper cable coiling and support during storage prevents the development of permanent set or kinking that can affect installation and service performance. Large-diameter reels or coiling methods that maintain gentle bend radii help preserve cable flexibility, whilst avoiding tight coils or small-radius bends that can damage internal cable structure. Cable reels should be stored in positions that prevent cable weight from causing deformation or damage.

Deployment techniques significantly affect both installation success and subsequent service life. Cable pulling methods should avoid excessive tension that can damage conductors or strain cable connections, whilst pulling lubricants compatible with cable sheath materials help reduce installation stresses. Proper cable support during installation prevents damage from dragging over rough surfaces or sharp edges.

Bend radius limitations represent critical considerations during cable deployment. Type 209 cables have specified minimum bend radii that must be observed to prevent conductor damage and maintain electrical performance. Installation techniques that respect these limitations during both initial installation and subsequent repositioning help ensure optimal cable performance throughout the service life.

Operator training programmes should address both proper handling techniques and recognition of installation problems that could affect cable performance. Personnel responsible for cable installation and maintenance should understand the mechanical and electrical principles that govern proper cable handling, enabling them to make appropriate decisions during installation and service activities.

Connection techniques and termination quality significantly affect overall system reliability. Proper preparation of cable ends, use of appropriate termination hardware, and attention to environmental sealing at connection points all contribute to reliable long-term performance. Poor connection practices can negate the benefits of high-quality cables and create reliability problems that affect entire mining operations.

Conclusion

The Type 209 Flexible Mining Cable represents the culmination of decades of engineering development specifically focused on meeting the unique challenges of Australian open-cut mining operations. As we have explored throughout this comprehensive examination, these cables embody the careful balance of electrical performance, mechanical durability, and environmental resistance that characterises truly effective mining infrastructure.

The proven track record of Type 209 cables across Australia's diverse mining environments, from the harsh conditions of Western Australian goldfields to the challenging climate of Queensland's coal regions, demonstrates their fundamental suitability for the demanding applications that define modern mining operations. Compliance with Australian and New Zealand standards ensures not only regulatory compliance but also compatibility with the established practices and safety systems that govern Australian mining operations.

The electrical performance characteristics of Type 209 cables, with their range of voltage ratings from 1.1 kV to 11 kV and comprehensive conductor sizing options, provide mining operations with the flexibility needed to optimise power delivery systems for specific applications and operational requirements. This versatility proves particularly valuable in the dynamic environment of open-cut mining, where changing operational conditions and evolving equipment requirements demand adaptable electrical infrastructure.

The mechanical properties that enable Type 209 cables to withstand the rigorous demands of mobile mining equipment represent perhaps their most distinctive advantage over conventional industrial cables. The ability to maintain electrical integrity whilst accommodating the constant movement, vibration, and mechanical stress that characterise mining operations provides operational reliability that translates directly into improved productivity and reduced maintenance costs.

Environmental resistance capabilities ensure that Type 209 cables can provide reliable service across the challenging conditions found in Australian mining operations. From UV resistance that addresses the intense solar radiation common across much of Australia to chemical resistance that handles exposure to the various fluids and processing chemicals used in mining operations, these cables demonstrate the comprehensive approach to environmental protection needed for effective mining applications.

The safety features incorporated into Type 209 cable design, including comprehensive screening systems, pilot wire monitoring capabilities, and robust fault protection characteristics, align with the emphasis on personnel safety that defines responsible mining operations. These features provide not only immediate operational benefits but also contribute to the long-term sustainability of mining operations through reduced accident potential and improved operational reliability.

Looking toward the future of Australian mining, the continued evolution of mining technology toward greater automation and remote operation creates new challenges and opportunities for cable systems. Type 209 cables' electrical and mechanical characteristics position them well to support these technological developments, whilst their proven reliability provides the foundation needed for the enhanced operational efficiency that characterises modern mining operations.

The economic benefits of proper cable selection extend beyond initial cost considerations to encompass operational reliability, maintenance requirements, and service life characteristics that affect total cost of ownership. Type 209 cables' demonstrated performance in Australian mining operations provides confidence that proper cable selection represents sound economic decision-making that supports long-term operational success.

For mining professionals tasked with electrical infrastructure decisions, the comprehensive performance characteristics of Type 209 cables offer a proven solution that addresses the full range of challenges encountered in Australian open-cut mining operations. The balance of flexibility, electrical performance, durability, and safety provided by these cables makes them an essential component of reliable, efficient mining electrical systems.

The continued success of Australia's mining industry depends on the reliability and efficiency of all infrastructure components, including the cable systems that provide essential electrical connectivity. Type 209 cables have demonstrated their ability to meet these demanding requirements whilst providing the operational flexibility and safety characteristics needed for effective mining operations.

As Australian mining operations continue to evolve in response to changing market conditions, technological developments, and environmental considerations, the electrical infrastructure supporting these operations must provide the reliability and adaptability needed for continued success. Type 209 cables represent a proven foundation for mining electrical systems that can support both current operational requirements and future technological developments.

The investment in proper cable systems represents a fundamental component of responsible mining operations that prioritise both operational efficiency and personnel safety. Type 209 cables' comprehensive performance characteristics make them an essential element in achieving these operational objectives whilst maintaining the high standards that characterise Australian mining excellence.

Through proper selection, installation, and maintenance of Type 209 cable systems, Australian mining operations can ensure reliable electrical infrastructure that supports productive, safe, and economically viable mining operations for years to come. The proven performance of these cables across Australia's diverse mining environments provides confidence that they will continue to serve as a critical foundation for the nation's mining industry.
