Type 275 Cable: The Underground Mining Workhorse - A Complete Guide for Australian Mines

Introduction: The Lifeline of Underground Mining Operations

Deep beneath the Australian landscape, where sunlight never penetrates and the air carries the weight of centuries, mining operations depend on a critical component that most people never see or think about: the humble yet sophisticated Type 275 cable. This specialized electrical cable serves as the vital circulatory system of underground mining, delivering power to the massive machines that extract coal from the earth's depths.

The Type 275 cable, with its distinctive 1.1/1.1 kV rating, represents decades of engineering evolution designed specifically for the punishing environment of underground coal mining. Unlike standard industrial cables that might work adequately in factories or construction sites, Type 275 cables must endure conditions that would destroy conventional electrical infrastructure within hours. They face constant flexing, abrasion against rock surfaces, exposure to coal dust, moisture, and the tremendous mechanical stresses of reeling and unreeling operations that occur hundreds of times per shift.

Understanding why this particular cable configuration became the backbone of Australian underground mining requires grasping the unique challenges that mining machinery presents. Continuous miners and longwall shearers operate in spaces where every cubic meter of room represents thousands of dollars in excavation costs, yet these machines require reliable electrical power to function safely and efficiently. The Type 275 cable bridges this gap, providing the essential electrical link between stationary power sources and mobile mining equipment that must navigate through narrow underground roadways and work faces.

The significance of the 1.1/1.1 kV rating becomes apparent when considering the power demands of modern mining equipment. This voltage level provides sufficient electrical potential to drive motors ranging from 100 to 500 horsepower while maintaining safety margins appropriate for underground environments where escape routes are limited and rescue operations are complex. The dual voltage specification (1.1 kV for both power and pilot circuits) ensures that safety monitoring systems operate at the same robust level as the primary power delivery, creating redundant protection for mining personnel.

Machinery Overview: Understanding Cutters and Shearers

To truly appreciate the engineering behind Type 275 cables, we must first understand the magnificent machines they power. The relationship between cable and machine in underground mining is so intimate that neither can function effectively without the other, creating a partnership that has evolved over decades of mining innovation.

Continuous Miners: The Underground Workhorses

Continuous miners represent the epitome of underground coal extraction technology, combining the functions of cutting, loading, and conveying into a single integrated machine. These behemoths, typically measuring 15 to 20 meters in length and weighing between 80 to 150 tonnes, operate with a level of precision that seems almost impossible given their size and the conditions they face.

The cutting head of a continuous miner rotates at speeds between 30 to 50 revolutions per minute, wielding tungsten carbide picks that can shatter coal seams with surgical precision. This cutting operation requires enormous electrical power, often demanding 300 to 500 kilowatts continuously during operation. The electrical system must not only deliver this power reliably but must do so while the machine moves forward into the coal face, requiring the cable to feed out smoothly from its reel system.

The reeling mechanism on a continuous miner presents unique challenges for cable design. As the machine advances into the coal seam, the cable must pay out from a powered reel that maintains proper tension to prevent tangling or damage. When the machine retreats to dump its load or reposition, the cable must reel back in smoothly without creating excessive stress on the electrical connections or mechanical components. This constant reeling and unreeling cycle can occur hundreds of times per shift, creating fatigue stresses that would quickly destroy inadequately designed cables.

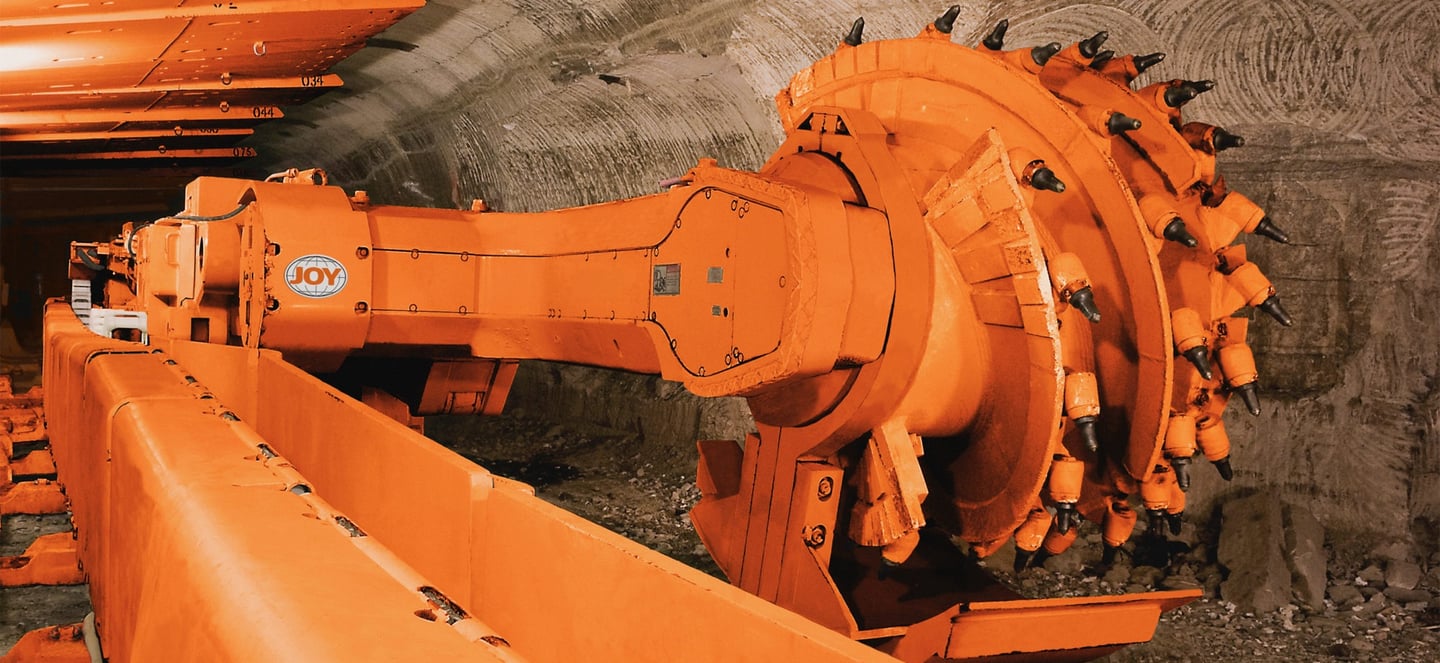

Longwall Shearers: Precision Giants

Longwall mining represents the most intensive form of underground coal extraction, and the longwall shearer stands as the crown jewel of this operation. These machines travel along coal faces that can extend for 150 to 300 meters, systematically shearing coal from the face in precisely controlled passes that maximize extraction while maintaining roof stability.

The electrical demands of longwall shearers exceed even those of continuous miners, often requiring 800 to 1200 kilowatts of continuous power to operate cutting drums, conveyor systems, and hydraulic pumps simultaneously. The shearer must maintain this power consumption while traveling at speeds of 10 to 30 meters per minute along the longwall face, creating dynamic loading conditions that test every aspect of the electrical supply system.

The cable management system for longwall shearers represents perhaps the most sophisticated reeling technology in underground mining. The cable must extend and retract smoothly across the entire length of the longwall face while maintaining perfect electrical continuity and mechanical integrity. The reel system incorporates tension monitoring, automatic level winding, and protection systems that can instantly shut down operations if cable integrity is compromised.

The interaction between shearer and cable during longwall operations creates a complex dance of mechanical and electrical coordination. As the shearer cuts coal from the face, the cable reel must maintain optimal tension to prevent cable damage while allowing smooth machine movement. This requires precise coordination between the shearer's advance rate, the reel's payout speed, and the cable's mechanical properties under varying load conditions.

Electrical Parameters: The Technical Foundation

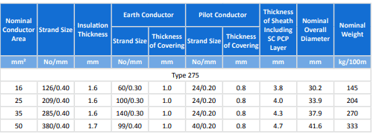

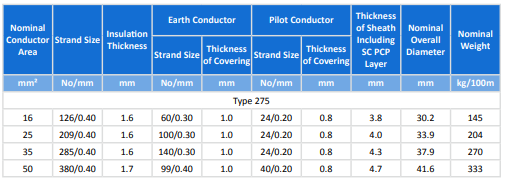

The electrical specifications of Type 275 cables reflect decades of experience in underground mining applications, where theoretical calculations must yield to practical realities of coal dust, moisture, mechanical stress, and operational safety requirements. Understanding these parameters provides insight into why this particular cable configuration has become the standard for Australian underground mining operations.

Voltage Rating: The 1.1/1.1 kV Standard

The 1.1/1.1 kV rating of Type 275 cables represents a carefully considered balance between power delivery capability and safety requirements in underground environments. This voltage level falls into Class 2 electrical classification, indicating cables designed for industrial applications where reliability and safety are paramount concerns.

The dual voltage specification (1.1 kV for both power and pilot circuits) ensures that safety monitoring systems operate at the same robust electrical level as the primary power delivery circuits. This design philosophy recognizes that in underground mining, the failure of safety monitoring can be as catastrophic as the failure of primary power systems. The pilot circuit, operating at full system voltage, can reliably detect earth faults and insulation failures that might not be apparent in lower voltage monitoring systems.

The choice of 1.1 kV rather than higher voltages reflects the practical constraints of underground mining operations. While higher voltages would reduce current requirements and allow smaller conductor sizes, they would also increase the risks associated with electrical faults in confined spaces where workers have limited escape routes. The 1.1 kV level provides sufficient power delivery capability for the largest mining machines while maintaining safety margins appropriate for underground operations.

Conductor Configuration: The 3+3+1 Architecture

The conductor arrangement in Type 275 cables follows the distinctive 3+3+1 configuration that has become synonymous with reliable underground mining power delivery. This arrangement includes three power conductors, three earth conductors, and one pilot conductor, each serving specific functions critical to safe mining operations.

The three power conductors, manufactured from flexible stranded tinned annealed copper, handle the primary electrical load delivery to mining equipment. These conductors range in size from 16 mm² to 50 mm², with the specific size selected based on the power requirements of the connected equipment and the length of cable run required. The stranding design uses multiple fine copper wires rather than solid conductors, providing the flexibility necessary for continuous reeling operations while maintaining excellent electrical conductivity.

The tinning process applied to the copper conductors serves multiple purposes in the harsh underground environment. Tin coating prevents copper oxidation in the presence of moisture and coal dust, maintaining consistent electrical contact over the cable's service life. Additionally, tinned copper provides better lubricity during cable manufacturing and installation, reducing friction that could damage the conductor stranding during reeling operations.

Earth Conductor System: Safety Through Redundancy

The three earth conductors in Type 275 cables provide redundant grounding that goes beyond simple electrical safety requirements. In underground mining, the earth conductor system serves as both electrical protection and mechanical reinforcement, creating a safety net that protects personnel and equipment under the most demanding operating conditions.

Each earth conductor consists of flexible stranded tinned copper similar to the power conductors but designed specifically for the unique stresses encountered during reeling operations. The earth conductors are covered with semiconductive PCP (Polychloroprene) compound that provides electrical screening while offering mechanical protection against abrasion and fatigue.

The redundant earth conductor design recognizes that in underground mining, single-point failures can have catastrophic consequences. If one earth conductor fails due to mechanical stress or electrical fault, the remaining conductors continue to provide effective grounding, maintaining system safety until repairs can be completed. This redundancy is particularly important during reeling operations, where mechanical stresses can exceed those encountered in stationary installations.

Pilot Conductor: The Guardian of Electrical Safety

The central pilot conductor in Type 275 cables serves as the electrical guardian of mining operations, continuously monitoring system integrity and providing immediate fault detection capability. This conductor, positioned at the geometric center of the cable construction, connects to sophisticated monitoring systems that can detect insulation failures, earth faults, and mechanical damage before they become dangerous.

The pilot conductor uses EPR (Ethylene Propylene Rubber) insulation, chosen for its excellent dielectric properties and resistance to water tree formation. Water trees, microscopic channels that can form in insulation when exposed to moisture and electrical stress, represent one of the primary failure modes for underground cables. The EPR insulation system effectively resists water tree formation, maintaining insulation integrity throughout the cable's service life.

The extensible design of the pilot conductor allows it to accommodate the stretching forces encountered during reeling operations without losing electrical continuity. This extensibility is achieved through special conductor stranding techniques and insulation formulations that provide controlled elongation under mechanical stress while maintaining electrical properties.

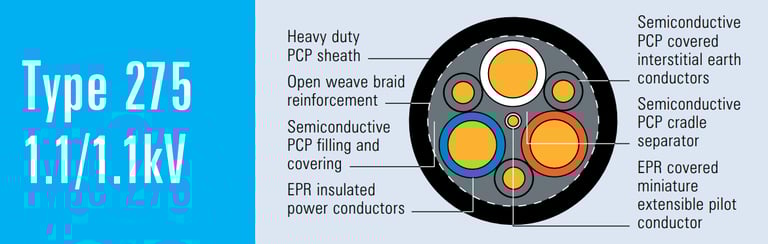

Product Structure and Construction: Engineering for Extremes

The construction of Type 275 cables represents a masterpiece of materials engineering, where every component serves multiple functions and contributes to the overall performance of the cable system. Understanding this construction provides insight into why these cables can survive in environments that would quickly destroy other electrical products.

Conductor Technology: Flexibility Meets Conductivity

The foundation of any electrical cable lies in its conductors, and Type 275 cables employ conductor technology specifically optimized for the dynamic stresses of underground mining. The flexible stranded tinned annealed copper conductors use Class 5 or Class 6 stranding according to international standards, providing maximum flexibility while maintaining excellent electrical conductivity.

The stranding pattern in these conductors follows sophisticated geometric arrangements that distribute mechanical stress evenly across all individual wire strands. This stress distribution is crucial during reeling operations, where the cable experiences continuous flexing that would quickly fatigue conductors with less sophisticated strand geometries. The individual copper wires are carefully sized and arranged to provide optimal balance between flexibility and electrical performance.

The annealing process applied to the copper ensures that the material maintains its flexibility characteristics throughout the cable's service life. Annealed copper exhibits superior fatigue resistance compared to hard-drawn copper, allowing it to withstand the millions of flex cycles that occur during normal underground mining operations. The tinning process provides additional benefits, including improved corrosion resistance and enhanced electrical contact reliability.

Insulation System: EPR Excellence

The EPR insulation system used in Type 275 cables represents the culmination of decades of research into insulation materials for demanding industrial applications. EPR offers an exceptional combination of electrical properties, mechanical strength, and environmental resistance that makes it ideally suited for underground mining applications.

The dielectric strength of EPR insulation exceeds requirements for 1.1 kV applications by substantial margins, providing safety factors that account for the harsh operating environment of underground mines. This insulation maintains its dielectric properties across the wide temperature range encountered in mining operations, from the cold conditions of surface storage to the elevated temperatures generated by high-power electrical equipment.

Water tree resistance represents one of the most critical properties of EPR insulation in underground applications. The constant presence of moisture in underground environments, combined with electrical stress and contamination from coal dust, creates ideal conditions for water tree formation. EPR insulation incorporates anti-oxidants and water tree retardants that prevent the formation of these microscopic failure paths, ensuring long-term insulation reliability.

Semiconductive Systems: Electrical Field Control

The semiconductive PCP layers in Type 275 cables serve the sophisticated function of electrical field stress control, ensuring that voltage gradients within the cable remain within safe limits throughout the cable's cross-section. These semiconductive layers, positioned strategically around power conductors and earth conductors, create controlled electrical field distributions that prevent localized stress concentrations.

The cradle separator system uses semiconductive PCP to create defined spaces for each conductor while providing electrical screening between adjacent conductors. This arrangement prevents electrical interference between circuits while maintaining the mechanical integrity of the overall cable structure. The semiconductive material exhibits precisely controlled electrical resistance, high enough to prevent short circuits but low enough to provide effective electrical screening.

The overall core screen, formed by semiconductive PCP filling and covering, creates a continuous electrical shield around the power conductor assembly. This shield provides protection against external electrical interference while containing the electrical fields generated by the power conductors. The filling compound ensures that all voids within the cable are occupied by controlled electrical environments, preventing the formation of air gaps that could lead to electrical breakdown.

Reinforcement Systems: Mechanical Protection

The textile reinforcement system in Type 275 cables provides critical mechanical protection while maintaining the flexibility necessary for reeling operations. The open-weave braid reinforcement distributes mechanical loads across the entire cable cross-section, preventing localized stress concentrations that could damage internal components.

The textile materials used in this reinforcement system are selected for their mechanical properties, including tensile strength, abrasion resistance, and fatigue life. These materials must maintain their protective function throughout millions of flex cycles while resisting degradation from exposure to oil, moisture, and coal dust. The open-weave construction allows controlled flexibility while providing radial compression resistance that protects internal cable components.

Sheath Systems: The Ultimate Protection

The outer sheath of Type 275 cables represents the final line of defense against the harsh underground mining environment. The heavy-duty PCP sheath provides exceptional resistance to abrasion, oil, ozone, and temperature extremes, maintaining its protective function across the operating temperature range of -25°C to +90°C.

The PCP sheath material incorporates sophisticated additive packages that provide specific performance characteristics required for underground mining. Abrasion resistance additives ensure that the sheath can withstand contact with rock surfaces, steel structures, and mining equipment without degradation. Oil resistance additives prevent swelling and degradation when exposed to hydraulic fluids and lubricants commonly used in mining equipment.

Alternative sheath materials, including CPE (Chlorinated Polyethylene) and CSP (Chlorosulfonated Polyethylene), offer enhanced chemical resistance for specific mining environments. These materials provide superior resistance to ozone, ultraviolet radiation, and aggressive chemicals that may be encountered in certain mining operations.

Installation Standards and Compliance: Safety Through Regulation

The installation of Type 275 cables in underground mining operations is governed by comprehensive standards that reflect decades of experience in mining safety and electrical engineering. These standards, developed through collaboration between mining companies, equipment manufacturers, and safety authorities, provide the framework for safe and reliable electrical installations in underground environments.

Australian Standards Compliance

Type 275 cables must comply with multiple Australian standards that address different aspects of mining electrical safety and performance. AS/NZS 1802:2003 specifically addresses reeling and trailing cables for underground mining, establishing requirements for construction, testing, and performance that ensure cables can withstand the unique stresses of mining operations.

AS/NZS 1125 provides additional requirements for electrical equipment in underground mining, addressing installation practices, earthing systems, and safety procedures that must be followed when installing and maintaining electrical systems in underground environments. This standard recognizes that underground mining presents electrical hazards not encountered in surface industrial applications, requiring specialized installation techniques and safety procedures.

AS/NZS 3808 addresses electrical installations in underground mining, providing comprehensive requirements for cable routing, protection, earthing, and fault detection systems. This standard establishes the framework for electrical safety in underground environments, ensuring that installations provide reliable service while protecting personnel from electrical hazards.

AS/NZS 5000.1 provides general requirements for electrical installations, establishing fundamental safety principles that apply to all electrical work including underground mining applications. This standard provides the foundation for electrical safety practices that are then specialized by mining-specific standards.

Installation Practices: Engineering for Reliability

The installation of Type 275 cables requires specialized techniques that account for the unique environment and operational requirements of underground mining. Proper installation begins with careful planning that considers cable routing, protection requirements, and accessibility for maintenance throughout the cable's service life.

Minimum bend radius requirements represent one of the most critical installation parameters for Type 275 cables. The bend radius must typically exceed six times the cable's overall diameter to prevent damage to internal components during installation and operation. This requirement becomes particularly challenging in underground environments where space is limited and cable routes must navigate around existing equipment and structures.

Reel tension management during installation requires sophisticated equipment and experienced technicians who understand the mechanical limits of the cable system. Excessive tension during installation can damage conductors or insulation, while insufficient tension can result in cable loops or tangles that create operational hazards. The installation process must maintain optimal tension throughout the cable pull, requiring coordination between multiple personnel and specialized equipment.

Grounding system installation represents a critical safety requirement that extends beyond simple electrical connections. The pilot conductor and earth conductors must be connected to comprehensive grounding systems that provide multiple paths for fault current while maintaining reliable earth fault detection capability. These grounding systems must account for the dynamic nature of mining operations, where equipment moves continuously and electrical connections experience constant mechanical stress.

Mechanical Protection Requirements

The installation of Type 275 cables in underground mining requires comprehensive mechanical protection systems that shield the cable from damage while maintaining operational flexibility. Shearer boom protection systems use specialized cable guides and guards that allow cable movement while preventing contact with cutting equipment or conveyor systems.

Miner boom protection incorporates sophisticated cable management systems that maintain proper cable positioning during all phases of machine operation. These systems must accommodate the complex movements of continuous miners while ensuring that cables remain clear of cutting heads, conveyor systems, and hydraulic equipment that could cause damage.

Cable support systems throughout underground installations must provide adequate support while allowing for thermal expansion, mechanical settlement, and equipment movement. These support systems use specialized hardware designed for the underground environment, including corrosion-resistant materials and designs that facilitate maintenance access in confined spaces.

Underground Mining Terminology and Real-World Usage

The language of underground mining reflects generations of practical experience, where precise communication can mean the difference between safe operations and catastrophic accidents. Understanding this terminology provides insight into how Type 275 cables integrate into the daily operations of underground mines and the critical role they play in mining safety and productivity.

The Language of Cable Operations

In the underground mining environment, Type 275 cables are rarely referred to by their technical designation. Instead, miners and technicians use practical terminology that reflects the cable's function and operational characteristics. "Reeling lead" or simply "lead cable" describes the flexible feeder cable that connects mobile equipment to stationary power sources, emphasizing the cable's role as the electrical lifeline for mining machinery.

The term "earth-check" has evolved into mining slang for the pilot and earth core integrity testing procedures that are performed regularly to ensure electrical safety. When miners say they need to "run an earth-check," they're referring to the comprehensive testing procedures that verify the continuity and insulation integrity of the safety circuits within the cable. This testing is so critical to mining safety that it has developed its own vernacular, with experienced miners able to diagnose cable problems based on subtle variations in earth-check results.

Operators frequently describe cable condition using colorful language that reflects the harsh realities of underground mining. When technicians say the "cable's cooked," they're describing heat damage to the cable sheath that can occur from overloading, excessive reel friction, or exposure to hot mining equipment. This condition is immediately recognizable to experienced miners, who can often identify heat-damaged cables by visual inspection of the sheath surface.

Operational Procedures and Practical Knowledge

The phrase "take the leads off the cutter" reflects the routine maintenance procedure where technicians disconnect and inspect the electrical connections on continuous mining equipment. This seemingly simple operation requires extensive knowledge of electrical safety procedures, cable handling techniques, and the mechanical systems that support cable management on mining equipment.

During this procedure, technicians examine not only the electrical connections but also the condition of the cable where it enters and exits the mining equipment. They look for signs of abrasion, heat damage, or mechanical stress that could indicate developing problems. The cable inspection during "taking leads off" often reveals issues before they become serious enough to cause equipment failure or safety hazards.

The reeling operation itself has developed specialized terminology that reflects the complexity of cable management in underground mining. "Paying out" describes the process of feeding cable from the reel as mining equipment advances, while "spooling back" refers to the retrieval of cable as equipment retreats. These operations require constant attention to cable tension, reel speed, and equipment position to prevent cable damage or operational interruptions.

Safety Culture and Cable Management

Underground mining safety culture has developed around the recognition that electrical failures can have catastrophic consequences in confined spaces where escape routes are limited. This culture is reflected in the terminology and procedures surrounding Type 275 cable operations, where redundant safety checks and conservative operating practices are standard procedure.

The concept of "cable integrity" extends beyond simple electrical testing to encompass the complete assessment of cable condition, including mechanical wear, environmental exposure, and operational stress factors. Mining supervisors regularly discuss cable integrity in safety meetings, emphasizing the connection between proper cable management and overall mining safety.

When miners discuss "cable life," they're referring not just to the technical service life of the electrical components but to the practical operational life considering the specific conditions and usage patterns in their mine. This practical knowledge often differs significantly from theoretical cable life calculations, reflecting the real-world challenges of underground mining operations.

Frequently Asked Questions and Troubleshooting

The complexity of Type 275 cable systems in underground mining environments generates numerous technical challenges that require experienced troubleshooting and practical solutions. Understanding these common issues and their solutions provides valuable insight into the operational realities of underground mining electrical systems.

Pilot Circuit Failures: The Silent Safety Threat

One of the most critical yet subtle problems encountered with Type 275 cables involves pilot circuit failures that can compromise the earth fault detection systems essential for mining safety. When technicians encounter a "pilot open" condition, the cable system loses its ability to detect earth faults, creating a potentially dangerous situation where electrical problems may not trigger protective shutdowns.

The pilot circuit failure typically occurs due to mechanical stress during reeling operations, where the central pilot conductor experiences different stress patterns than the surrounding power and earth conductors. The extensible design of the pilot conductor helps accommodate these stresses, but repeated flexing can eventually cause conductor fractures that interrupt the safety monitoring circuit.

Diagnosing pilot circuit problems requires systematic testing that begins with continuity measurements between the pilot conductor and earth conductors at both ends of the cable. Intermittent pilot failures, which may only occur during certain reeling positions, require dynamic testing while the cable is under operational stress. This testing often reveals mechanical problems in the cable construction or reel system that must be addressed to restore reliable safety monitoring.

The solution for pilot circuit failures depends on the nature and location of the problem. Minor conductor fractures near cable terminations can sometimes be repaired by reterminating the cable ends, but fractures within the cable length typically require replacement of the affected cable section. The critical nature of pilot circuit function means that temporary repairs are generally not acceptable, and permanent solutions must restore full safety monitoring capability.

Mechanical Damage and Sheath Protection

Sheath cuts and exposed conductors represent one of the most visible yet dangerous problems encountered with Type 275 cables in underground mining. These mechanical damage issues typically result from contact with mining equipment, abrasion against rock surfaces, or improper cable handling during installation or maintenance operations.

The identification of sheath damage requires careful visual inspection of the entire cable length, paying particular attention to areas where the cable contacts equipment or structural elements. Damage may range from superficial abrasion that doesn't compromise electrical integrity to deep cuts that expose conductors and create immediate safety hazards.

Minor sheath damage that doesn't expose conductors can often be repaired using specialized cable repair sleeves or high-voltage electrical tape systems designed for underground mining applications. These repair systems must provide electrical insulation equivalent to the original cable sheath while offering mechanical protection against further damage.

Serious sheath damage that exposes conductors requires immediate attention and typically necessitates replacement of the damaged cable section. The presence of exposed conductors in underground mining environments creates multiple hazards, including electrical shock, fire risk, and potential ignition of methane or coal dust. These situations require immediate shutdown of affected equipment and emergency repair procedures.

Thermal Management and Overheating Issues

Overheating problems with Type 275 cables can result from multiple factors, including excessive electrical loading, inadequate reel system maintenance, or environmental conditions that impede heat dissipation. Understanding and addressing these thermal issues requires comprehensive analysis of the electrical and mechanical systems that affect cable temperature.

Excessive current loading represents the most straightforward cause of cable overheating, where the electrical load exceeds the cable's current-carrying capacity for the specific installation conditions. This problem requires load analysis to determine whether the issue results from equipment problems, incorrect cable sizing, or operational practices that exceed design parameters.

Reel system problems can contribute to overheating by creating mechanical friction that generates heat or by preventing proper heat dissipation from the cable. Bearing problems in reel systems create additional mechanical resistance that appears as heat generation, while inadequate reel maintenance can result in uneven cable spooling that creates localized stress points and heat buildup.

Environmental factors in underground mining can significantly affect cable thermal performance, including restricted air circulation, elevated ambient temperatures from equipment operation, and dust accumulation that impedes heat dissipation. These factors require comprehensive thermal management strategies that may include improved ventilation, regular cleaning procedures, or modification of operational practices to reduce thermal stress.

Cold Weather Performance and Flexibility Issues

Underground mining operations in colder climates encounter specific problems with Type 275 cables related to low-temperature performance and flexibility. When miners describe cables as "stiff in cold," they're referring to the temporary loss of flexibility that occurs when cable materials cool below their optimal operating temperature range.

Cold temperature effects on cable performance include increased mechanical stiffness that makes reeling operations more difficult, potential cracking of sheath materials if cables are flexed before warming, and changes in electrical properties that may affect system performance. These effects are particularly problematic during equipment startup in cold conditions or when cables have been stored in unheated areas.

The solution for cold weather cable problems begins with proper storage and handling procedures that maintain cables at appropriate temperatures before deployment. This may require heated storage areas, gradual warming procedures before installation, or operational modifications that allow cables to reach operating temperature before full flexing operations begin.

Preventive measures for cold weather cable management include insulation of cable storage areas, heating systems for critical cable installations, and operational procedures that account for temperature effects on cable performance. These measures help ensure reliable cable operation throughout the wide temperature ranges encountered in underground mining operations.

Earth Conductor Integrity and Reeling Stress

Frequent earth conductor failures during reeling operations represent a complex problem that combines electrical safety concerns with mechanical engineering challenges. The earth conductor system must maintain electrical continuity while accommodating the mechanical stresses of continuous reeling operations, creating demands that can exceed the capabilities of inadequately designed or maintained systems.

Earth conductor failures typically occur due to differential stress patterns during reeling, where the earth conductors experience different mechanical loads than the power conductors due to their position within the cable cross-section. These differential stresses can cause earth conductor fractures that compromise the electrical safety system while potentially leaving the power circuits operational.

The diagnosis of earth conductor problems requires comprehensive testing of all earth paths within the cable system, including continuity testing, insulation resistance measurement, and dynamic testing under operational stress conditions. This testing often reveals problems with cable construction, reel system alignment, or operational practices that create excessive mechanical stress on the earth conductor system.

Solutions for earth conductor integrity problems may include cable replacement, reel system modifications, or changes in operational procedures that reduce mechanical stress during reeling operations. The critical safety function of the earth conductor system means that these problems require immediate attention and permanent solutions that restore full electrical safety capability.

Applications Summary: The Foundation of Underground Mining

Type 275 cables serve as the electrical foundation for virtually every aspect of underground mining operations, connecting stationary power sources to the mobile equipment that extracts coal from beneath the earth's surface. Understanding the breadth of these applications reveals the critical role these cables play in modern mining operations and the sophisticated engineering required to meet such diverse operational demands.

The primary application for Type 275 cables remains the power supply for continuous miners and longwall shearers, the massive machines that form the backbone of underground coal extraction. These applications demand the highest performance from cable systems, requiring reliable power delivery under conditions of constant movement, severe mechanical stress, and challenging environmental conditions. The success of these applications has established Type 275 cables as the standard for underground mining power distribution.

Shuttle cars, the mobile conveyor systems that transport coal from mining faces to main conveyor systems, represent another critical application for Type 275 cables. These vehicles operate in confined spaces with limited maneuvering room, requiring cables that can accommodate sharp turns, rapid acceleration and deceleration, and frequent reeling operations. The cable systems for shuttle cars must provide reliable power while maintaining flexibility that allows these vehicles to navigate the complex underground roadway systems.

Pump systems throughout underground mining operations rely on Type 275 cables for power delivery in applications ranging from water management to hydraulic power generation. These applications often involve stationary installations where cables experience less mechanical stress but must maintain reliable operation in the presence of moisture, corrosive substances, and variable electrical loads. The chemical resistance and electrical reliability of Type 275 cables make them ideally suited for these demanding pump applications.

Underground conveyor systems, which transport coal over long distances through underground roadways, use Type 275 cables for power distribution to drive motors positioned throughout the conveyor system. These applications require cables that can accommodate the thermal cycling associated with intermittent motor operation while providing reliable electrical connections in dusty, corrosive environments.

Drilling equipment used for roof support, ventilation, and exploration operations represents a specialized application for Type 275 cables where portability and reliability are equally important. These applications require cables that can be rapidly deployed and retrieved while maintaining electrical integrity under the mechanical stresses of drilling operations.

The earth conductor design in Type 275 cables provides particular benefits in reeling applications where mechanical stress can cause conductor failures in inadequately designed cable systems. The redundant earth conductor arrangement ensures that electrical safety systems remain operational even if individual earth conductors fail due to mechanical stress, providing the safety margins essential for underground mining operations.

The versatility of Type 275 cables extends beyond primary mining equipment to include auxiliary systems such as lighting, ventilation fans, and communication equipment that support underground operations. While these applications may not require the full electrical capacity of the cable system, they benefit from the mechanical robustness and environmental resistance that make Type 275 cables suitable for the underground mining environment.

Conclusion: The Engineering Excellence Behind Underground Mining

The Type 275 cable represents far more than a simple electrical component; it embodies decades of engineering evolution driven by the relentless demands of underground mining operations. From its sophisticated 3+3+1 conductor arrangement to its advanced EPR insulation system and robust PCP sheath, every aspect of this cable design reflects deep understanding of the challenges faced in underground coal extraction.

The success of Type 275 cables in Australian underground mining operations demonstrates the importance of specialized engineering solutions for extreme operating environments. These cables must simultaneously serve as power delivery systems, safety monitoring networks, and mechanical components capable of withstanding millions of flex cycles while maintaining electrical integrity in the presence of coal dust, moisture, and corrosive substances.

As underground mining operations continue to evolve with advancing technology and increasing safety requirements, Type 275 cables will undoubtedly continue to evolve as well. However, the fundamental engineering principles that make these cables successful - robust construction, redundant safety systems, and materials optimized for extreme service conditions - will remain the foundation for future developments in underground mining electrical systems.

Understanding Type 275 cables provides insight not only into the technical aspects of underground mining but also into the broader principles of engineering for extreme environments. The lessons learned from decades of underground mining cable development continue to influence electrical system design in other demanding applications, from offshore oil platforms to arctic installations, where reliable electrical power delivery under challenging conditions remains essential for operational success and personnel safety.
