Type 2S Individually Screened Mining Cables: Essential Infrastructure for Australian Gold Mining Operations

Introduction: The Backbone of Modern Mining Operations

When you walk through any major Australian gold mine, from the sprawling open pits of Western Australia to the deep underground workings of New South Wales, you'll find that beneath the massive machinery and complex operations lies a critical yet often overlooked infrastructure: the electrical cable systems that power everything from continuous miners to lighting circuits. Among these essential components, Type 2S individually screened cables stand out as the workhorses of the mining industry, providing reliable power distribution and signal transmission in some of the harshest environments on Earth.

These cables, manufactured to comply with AS/NZS 1972:2006 standards, represent decades of engineering evolution specifically tailored for Australian mining conditions. Think of them as the nervous system of a mine, carrying not just electrical power but also the vital control signals that keep operations running safely and efficiently. Understanding their design, application, and maintenance requirements is crucial for anyone involved in mining operations, from electrical engineers to maintenance supervisors.

The significance of properly specified and installed cables cannot be overstated in mining environments. Unlike standard industrial applications, mining operations present unique challenges including mechanical stress from heavy machinery, exposure to corrosive chemicals, extreme temperature variations, and the constant threat of moisture ingress. Type 2S cables are specifically engineered to address these challenges while maintaining the high safety standards demanded by Australian mining regulations.

Australia's Gold Mining Landscape: Where These Cables Make Their Mark

To truly appreciate the importance of Type 2S cables, we need to understand the scale and diversity of Australia's gold mining operations. Australia consistently ranks among the world's top gold producers, with the industry contributing billions of dollars annually to the national economy. The country's gold mining sector is characterised by both massive open-pit operations and sophisticated underground mines, each presenting unique electrical infrastructure challenges.

Western Australia dominates the Australian gold mining landscape, housing approximately eleven of the nation's most significant gold-producing operations. This concentration isn't coincidental – the region's geological formations, particularly the Yilgarn Craton, contain some of the world's richest gold deposits. The electrical infrastructure supporting these operations represents a massive investment in specialised equipment, with Type 2S cables forming the backbone of power distribution systems.

The Boddington Mine, located approximately 130 kilometres southeast of Perth, stands as Australia's largest gold mine by production volume. This open-pit operation produces around 24 tonnes of gold annually, along with significant copper output. The scale of electrical infrastructure required to support such an operation is staggering – imagine the complexity of powering draglines, shovels, conveyor systems, and processing equipment across a site covering thousands of hectares. Type 2S cables in various configurations carry power from central substations to individual equipment locations, often spanning distances of several kilometres.

Moving east to New South Wales, the Cadia Valley operations represent another pinnacle of Australian gold mining. Historically one of the country's top gold producers, Cadia utilises both open-pit and underground mining methods. The underground operations present particular challenges for cable installation, as systems must be designed to accommodate the dynamic nature of mining activities while maintaining reliable power supply to critical equipment like ventilation fans, pumps, and lighting systems.

The legendary Kalgoorlie Super Pit, officially known as the Fimiston Open Pit, represents perhaps the most iconic of Australia's gold mining operations. This massive open-pit mine, visible from space, has been in continuous operation for over a century. The electrical infrastructure supporting this operation has evolved dramatically over the decades, with modern Type 2S cables replacing older systems to provide improved reliability and safety margins.

Beyond these flagship operations, Australia's gold mining sector includes numerous other significant sites including Telfer in Western Australia's Pilbara region, St Ives near Kalgoorlie, the Agnew operation, Plutonic, Gwalia, Wiluna, and Cowal in New South Wales. Each of these sites presents unique electrical challenges, from the remote locations of Telfer requiring extended cable runs to the underground operations at St Ives demanding cables capable of withstanding constant flexing and movement.

Understanding Type 2S Cable Applications: Where Function Meets Harsh Reality

The application scenarios for Type 2S individually screened cables in Australian gold mines are as diverse as the operations themselves. To understand why these cables are so crucial, think of them as the circulatory system of a mine – they must reliably deliver power and signals to every corner of the operation while withstanding conditions that would quickly destroy conventional cables.

Machine wiring represents one of the most demanding applications for Type 2S cables. In both underground and open-pit operations, these cables connect major equipment pieces to power distribution systems. Consider a continuous miner working in an underground development heading – this machine requires not only primary power for its cutting head and conveyor systems but also control signals for remote operation and monitoring. The cable supplying this equipment must handle the mechanical stress of being dragged through confined spaces while maintaining electrical integrity in dusty, humid conditions.

Inter-equipment wiring presents another critical application area. Modern mining operations rely heavily on integrated systems where equipment must communicate with central control systems. Type 2S cables carry these communication signals between draglines and control rooms, between processing equipment and monitoring systems, and between safety systems and emergency response centres. The individual screening of each core becomes crucial in these applications, as it prevents electrical interference that could corrupt vital control signals.

Longwall lighting circuits represent a particularly interesting application of Type 2S cables. In underground longwall operations, reliable lighting is literally a matter of life and death. These circuits must provide consistent illumination across hundreds of metres of working face while accommodating the constant movement of mining equipment. The cables must be robust enough to withstand the mechanical stress of longwall operations while maintaining the electrical integrity necessary for safety-critical lighting systems.

The pilot and control core configurations available in Type 2S cables make them particularly suitable for complex mining applications. These smaller conductors, typically 30/0.20mm stranded copper, carry low-voltage control signals alongside the main power conductors. This integrated approach reduces cable count and simplifies installation while ensuring that control signals remain isolated from power circuits through individual screening.

Technical Construction: Engineering Excellence for Extreme Conditions

The construction of Type 2S cables reflects decades of engineering refinement specifically targeted at mining applications. Each component serves a specific purpose in ensuring reliable operation under the extreme conditions encountered in gold mining operations. Understanding this construction helps explain why these cables command premium prices compared to standard industrial cables – they're essentially precision-engineered solutions for challenging environments.

Starting from the inside, the conductor construction utilises stranded tinned annealed copper meeting AS/NZS 1125 requirements. The stranding provides mechanical flexibility while the tinning process protects against corrosion – a critical consideration in mining environments where moisture and corrosive chemicals are common. The annealing process ensures optimal conductivity while maintaining the mechanical properties necessary for installation and service life.

The insulation system employs ethylene propylene rubber (EPR), a material specifically chosen for its excellent electrical properties and resistance to environmental degradation. EPR maintains its insulating properties across wide temperature ranges and resists degradation from ozone, UV radiation, and chemical exposure. In mining applications, where cables may be exposed to hydraulic fluids, fuel oils, and various chemicals, this resistance becomes critical for long-term reliability.

The elastomer centre filler serves multiple purposes in the cable construction. It maintains the cable's round cross-section under mechanical stress, provides cushioning for individual cores during installation and service, and helps maintain consistent electrical characteristics by preventing core displacement. Think of it as the internal skeleton that maintains the cable's structural integrity under the constant flexing and stress of mining operations.

The individual composite screening system represents one of the most sophisticated aspects of Type 2S cable construction. Each core receives its own screen consisting of tinned copper braiding interwoven with polyester yarn. This composite approach provides excellent electromagnetic interference (EMI) protection while maintaining mechanical flexibility. The tinned copper provides the electrical characteristics necessary for EMI control, while the polyester yarn adds mechanical strength and helps maintain screen integrity during installation and service.

The heavy-duty CPE (chlorinated polyethylene) sheath represents the cable's first line of defence against the harsh mining environment. CPE was specifically chosen for its excellent resistance to oil, UV radiation, ozone, and mechanical abrasion. In mining applications, where cables may be dragged across rough surfaces, exposed to hydraulic fluids, and subjected to extreme temperature variations, the sheath must provide long-term protection for the internal components.

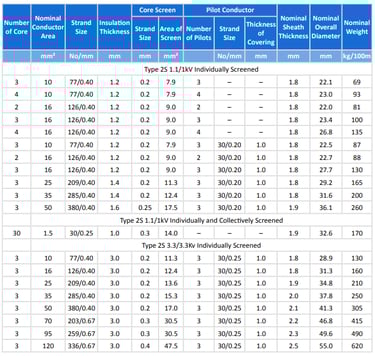

Electrical Parameters: The Numbers That Matter in Mining Operations

Understanding the electrical parameters of Type 2S cables is crucial for proper application and system design. These parameters directly impact system performance, safety, and reliability in mining operations. The voltage ratings of 1.1/1.1kV and 3.3/3.3kV represent the cable's ability to safely operate at these voltage levels under normal and fault conditions respectively.

The conductor size range from 10mm² to 120mm² provides flexibility in matching cable capacity to load requirements. In mining applications, proper conductor sizing is critical not only for carrying the required current but also for minimising voltage drop across long cable runs. Consider a pump station located two kilometres from the main substation – the conductor must be sized to deliver adequate voltage while accounting for the voltage drop across this distance.

Insulation thickness varies with voltage rating, with 1.2mm thickness for 1.1kV cables and 3.0mm for 3.3kV applications. This increased insulation thickness for higher voltage applications provides the additional electrical stress capability required for safe operation. The insulation must not only provide basic electrical isolation but also maintain this capability under the mechanical stress, temperature variations, and environmental conditions encountered in mining operations.

The screen construction parameters are equally important. The 0.2 to 0.4mm copper braid thickness provides adequate EMI protection while maintaining flexibility. The pilot cores, typically 30/0.20mm stranded copper, provide sufficient capacity for control and monitoring signals while maintaining separation from power circuits through individual screening.

Physical parameters including sheath thickness and overall diameter directly impact installation requirements and mechanical protection. Sheath thickness ranges from 1.8mm to 2.5mm depending on cable size and voltage rating, providing graduated protection based on application requirements. Overall diameters ranging from 22mm to 55mm must be considered during cable tray design and installation planning.

Weight considerations become particularly important in mining applications where cables may need to be manually handled during installation or maintenance. Weights ranging from 70 to 620 kg per 100 metres require careful consideration during installation planning and may influence routing decisions to minimise handling requirements.

Practical Mining Applications: Where Theory Meets Reality

The practical applications of Type 2S cables in mining operations demonstrate their versatility and reliability under real-world conditions. These applications often push the cables to their design limits while demanding consistent performance for safety and production requirements.

Longwall illumination systems represent one of the most demanding applications for Type 2S cables. In these operations, cables must provide reliable power to lighting systems across the entire working face while accommodating the constant movement of mining equipment. The cables experience continuous flexing, exposure to coal dust, and potential impact from mining equipment. The individual screening becomes crucial in these applications, as it prevents electrical interference from affecting lighting circuits that are critical for miner safety.

Drilling rig applications present another challenging environment for Type 2S cables. These mobile units require power for drilling operations, hydraulic systems, and control circuits. The cables must withstand the mechanical stress of being repeatedly coiled and uncoiled while maintaining electrical integrity for precision drilling operations. The composite screening system proves its worth in these applications by maintaining signal integrity for drilling control systems despite the electrically noisy environment created by high-power drilling equipment.

Stationary pump and motor feeds represent more traditional but equally important applications. Dewatering systems in particular require absolute reliability, as pump failure can quickly lead to mine flooding with catastrophic consequences. Type 2S cables feeding these critical systems must provide years of reliable service with minimal maintenance requirements. The EPR insulation system excels in these applications, maintaining its electrical properties despite constant exposure to moisture and temperature variations.

Signal and control circuits linking remote monitoring and instrumentation systems showcase the sophisticated capabilities of Type 2S cables. Modern mining operations rely heavily on real-time data collection and remote equipment monitoring. The individually screened cores in Type 2S cables ensure that these vital communication links remain interference-free despite operating in electrically noisy mining environments filled with variable frequency drives, large motors, and switching equipment.

Frequently Asked Questions: Addressing Common Mining Challenges

Can the individual screen carry earth-fault current in mining applications?

This question touches on a fundamental misunderstanding about the purpose of cable screening in mining applications. The individual composite screens in Type 2S cables are designed specifically for electromagnetic interference (EMI) control, not for carrying earth-fault currents. While the screens are electrically conductive, they're not designed or rated to carry the high fault currents that can occur during earth faults in mining systems.

For proper earth-fault protection, mining installations require separate earth conductors sized according to AS/NZS 1972 guidelines. These earth conductors must be capable of carrying the full fault current that might flow during an earth fault condition without exceeding safe temperature limits. The screening system should be properly bonded to the earthing system to ensure electrical safety, but it cannot substitute for properly sized earth conductors.

How do we address sheath damage from abrasion in harsh mining environments?

Sheath damage from abrasion represents one of the most common failure modes for mining cables. The heavy-duty CPE sheath used in Type 2S cables provides excellent abrasion resistance, but it's not indestructible. Prevention through proper installation practices proves more effective than attempting to repair damage after it occurs.

Regular inspection programmes should include visual examination of cable sheaths for signs of wear, particularly at cable entry points and areas where cables may contact moving equipment. In high-wear zones, protective measures such as steel cable trays, flexible conduits, or cable guards can significantly extend cable life. When abrasion damage is detected early, protective sleeves or overwraps can prevent further deterioration.

Does pilot core screening actually reduce EMI in mining environments?

The individual screening of pilot cores in Type 2S cables provides significant EMI reduction in mining environments, which are among the most electrically noisy industrial environments encountered. Mining operations typically include numerous variable frequency drives, large motors, welding equipment, and switching systems that generate substantial electromagnetic interference.

The composite screening system used in Type 2S cables combines the electrical properties of copper braiding with the mechanical properties of polyester yarn reinforcement. This combination provides excellent EMI attenuation while maintaining flexibility necessary for installation in mining applications. The screening effectiveness becomes particularly important for control and monitoring signals that may be low-level and susceptible to interference.

Can Type 2S cables handle the salty, humid climates common in Australian mining regions?

The CPE sheath used in Type 2S cables provides excellent resistance to moisture, salt spray, and UV radiation commonly encountered in Australian mining environments. However, proper installation practices remain crucial for long-term reliability in these conditions.

Cable terminations represent the most vulnerable points in humid, salty environments. Heat-shrink or cold-shrink termination systems rated for the environmental conditions provide essential protection against moisture ingress. In underground applications where humidity levels may approach saturation, additional sealing measures at termination points can prevent long-term reliability issues.

Are Type 2S cables suitable for flexible applications like cable reeling systems?

Type 2S cables are specifically designed for fixed installation applications and should not be used for dynamic applications such as cable reeling systems. The cable construction, while robust, is not designed to handle the constant flexing and mechanical stress associated with reeling operations.

For trailing cable applications in mining, AS/NZS 1972 specifies Type 1802 reeling cables with construction specifically designed for dynamic applications. These cables feature different stranding patterns, specialised insulation compounds, and reinforcement systems designed to handle millions of flex cycles without failure.

How do we address heat buildup in long cable runs common in mining operations?

Heat buildup in long cable runs represents a significant concern in mining applications where cables may span kilometres between substations and load centres. The current-carrying capacity of cables decreases as ambient temperature increases, and heat buildup from grouped cables can significantly reduce system capacity.

Proper derating calculations according to AS/NZS 3008 standards account for ambient temperature, grouping factors, and installation methods. In mining applications, adequate spacing between cables, proper ventilation, and thermal monitoring systems help prevent excessive temperature rise. The EPR insulation system used in Type 2S cables maintains its electrical properties at elevated temperatures better than many alternative insulation systems.

How do we select between 1.1kV and 3.3kV voltage classes for mining applications?

Voltage class selection in mining applications involves balancing several factors including system voltage requirements, cable size limitations, and installation constraints. The 1.1kV rating suits standard mining distribution systems operating at 1000V, providing adequate safety margin for normal operating conditions.

The 3.3kV rating becomes advantageous for higher-power applications where the increased voltage allows smaller conductor sizes for equivalent power transmission. This can result in lighter, more manageable cables for long-distance applications. However, the increased insulation thickness and termination requirements must be considered in the overall system design.

What are the critical termination requirements for Type 2S cables in mining applications?

Proper termination represents one of the most critical aspects of Type 2S cable installation in mining applications. The termination system must provide electrical isolation equal to the cable insulation while maintaining mechanical integrity in harsh environmental conditions.

Heat-shrink or cold-shrink termination systems rated for the cable voltage class provide essential protection against moisture ingress and electrical failure. The individual screen termination requires particular attention, with proper bonding to the earthing system through corrosion-resistant connections. Screen termination practices should follow manufacturer recommendations to ensure both EMI effectiveness and electrical safety.

Conclusion: The Foundation of Reliable Mining Operations

Type 2S individually screened cables represent far more than simple electrical components – they embody decades of engineering evolution specifically focused on meeting the unique challenges of Australian mining operations. From the massive open-pit operations of Western Australia to the sophisticated underground workings of New South Wales, these cables provide the reliable electrical infrastructure that keeps the industry running safely and efficiently.

The robust construction featuring stranded tinned copper conductors, EPR insulation, composite screening, and heavy-duty CPE sheaths reflects a deep understanding of mining environment requirements. Each component serves a specific purpose in ensuring long-term reliability under conditions that would quickly destroy conventional cables. The individual screening system, in particular, demonstrates the sophisticated engineering necessary to maintain signal integrity in electrically noisy mining environments.

Understanding the proper application, installation, and maintenance of Type 2S cables is crucial for anyone involved in mining electrical systems. The investment in quality cables and proper installation practices pays dividends through reduced maintenance requirements, improved system reliability, and enhanced safety performance. As Australian mining operations continue to evolve toward greater automation and remote monitoring, the importance of reliable electrical infrastructure becomes even more critical.

The future of Australian mining depends on the continued development and proper application of specialised infrastructure components like Type 2S cables. These cables represent the invisible foundation that supports the visible achievements of the mining industry, ensuring that Australia's gold mines continue to operate safely, efficiently, and profitably for generations to come.
