Type G Two-Conductor Flat Portable Power Cable 2kV: Powering Australia's Underground Mining Operations

Introduction

Underground mining operations demand electrical infrastructure that can withstand extreme conditions while delivering reliable power to critical equipment. Among the specialized cables engineered for these challenging environments, the Type G Two-Conductor Flat Portable Power Cable rated at 2,000 volts stands as a testament to advanced cable engineering. This heavy-duty, flat-profile DC power cable represents decades of innovation in mining electrical systems, specifically designed to power off-track equipment including shuttle cars, drilling rigs, and loading machines that form the backbone of modern underground mining operations.

The Type G cable's unique flat configuration distinguishes it from traditional round cables, offering significant advantages in space-constrained underground environments. Unlike conventional power cables that may struggle with the physical demands of mining operations, this specialized cable system addresses the specific challenges faced in underground workings where space is at a premium, environmental conditions are harsh, and equipment mobility is essential.

Compliance with rigorous industry standards ensures that Type G cables meet the exacting requirements of mining operations. These cables adhere to ICEA S-75-381/NEMA WC 58 standards, which specifically address portable power cables for mining applications. Additional compliance with ASTM B 172 and ASTM B 33 standards ensures proper conductor specifications, while CAN/CSA C22.2 No. 96 certification validates the cable's performance in Canadian mining environments, making it suitable for international mining operations.

The development of Type G cables reflects the mining industry's evolution toward more sophisticated electrical systems. As underground operations have become deeper and more mechanized, the demand for reliable, flexible power distribution has intensified. These cables represent the culmination of engineering efforts to create a power transmission solution that balances electrical performance, mechanical durability, and operational flexibility in the world's most challenging industrial environments.

Construction and Electrical Parameters

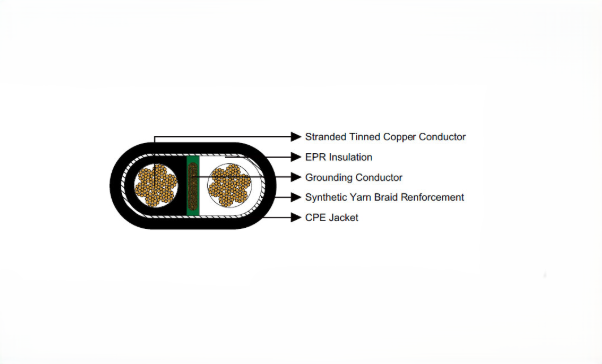

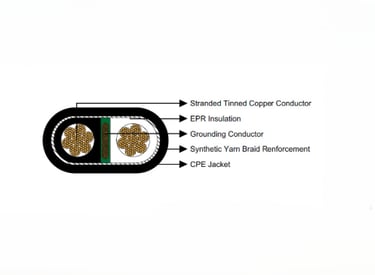

Understanding the construction of Type G cables reveals why they excel in underground mining applications. The foundation of these cables lies in their carefully engineered conductor system, which utilizes stranded annealed tinned copper conductors. This conductor design provides several critical advantages over solid copper alternatives. The stranding configuration offers superior flexibility, essential for cables that must navigate the complex pathways of underground mining equipment. The annealing process ensures optimal conductivity by relieving internal stresses in the copper, while the tin coating provides enhanced corrosion resistance crucial in the moisture-rich environment of underground mines.

The insulation system employs Ethylene Propylene Rubber (EPR), a material specifically chosen for its exceptional performance in demanding industrial applications. EPR insulation offers superior resistance to heat, moisture, and chemical exposure compared to traditional insulation materials. This synthetic rubber compound maintains its electrical properties across a wide temperature range, from the cold surface conditions where equipment may be stored to the elevated temperatures encountered in deep underground workings. The EPR insulation also demonstrates excellent aging characteristics, maintaining its integrity over the extended service life expected in mining applications.

A critical safety feature of Type G cables is the integrated grounding conductor, constructed from tinned copper and optionally covered with green insulation for easy identification. This grounding system provides essential personnel protection by ensuring that any fault current has a reliable path to ground, immediately triggering protective devices and preventing dangerous voltage levels on equipment surfaces. The grounding conductor's size is carefully calculated to handle the maximum expected fault current while maintaining the cable's flexibility and space efficiency.

Reinforcement layers consist of synthetic yarn that provides mechanical strength without compromising flexibility. This reinforcement system distributes mechanical stresses across the cable structure, preventing localized damage that could compromise electrical integrity. The synthetic yarn also provides cushioning between the electrical conductors and the outer jacket, reducing the risk of insulation damage from external mechanical forces.

The outer jacket represents the cable's first line of defense against the harsh mining environment. Heavy-duty and extra-heavy-duty Chlorinated Polyethylene (CPE) jackets provide exceptional resistance to abrasion, oil, chemicals, and moisture. CPE's superior aging characteristics ensure long-term performance even under continuous exposure to hydraulic fluids, diesel exhaust, and other contaminants common in mining operations. For cables with nominal outside diameters exceeding 2.0 inches, extra-heavy-duty jackets are required to provide adequate protection for the larger conductor sizes.

Alternative jacket materials including CSP (Chlorosulfonated Polyethylene), PCP (Polychloroprene), NBR (Nitrile Butadiene Rubber), and PVC (Polyvinyl Chloride) are available to meet specific environmental requirements. Two-layer jacket construction with reinforcing fiber between layers offers enhanced protection for the most demanding applications, providing redundant protection against mechanical damage.

The thermal and mechanical properties of Type G cables reflect their specialized design for mobile equipment applications. The minimum bending radius of six times the cable's outer diameter ensures that the cable can navigate tight spaces without damaging its internal structure. This flexibility is crucial for equipment that must maneuver through narrow mine tunnels and around obstacles. The maximum conductor operating temperature of 90°C provides adequate safety margin for normal operation while allowing for temporary overload conditions that may occur during peak equipment operation.

Detailed Electrical Specifications and Performance Characteristics

The electrical performance of Type G cables spans a comprehensive range of conductor sizes, from 2×6 AWG to 2×4/0, accommodating power requirements from light auxiliary equipment to heavy-duty mining machinery. The ampacity ratings, calculated based on a conductor temperature of 90°C and an ambient air temperature of 40°C per ICEA S-75-381 standards, range from 95 amperes for the smallest configuration to 328 amperes for the largest.

Understanding these ampacity ratings requires consideration of the unique operating conditions in underground mines. The specified 40°C ambient temperature may seem conservative compared to surface industrial applications, but underground environments often experience elevated temperatures due to geothermal heating, equipment operation, and limited ventilation. The 90°C conductor temperature limit provides adequate safety margin while ensuring optimal cable life.

The flat configuration of Type G cables offers distinct advantages in ampacity compared to round cables of equivalent conductor size. The flat geometry provides superior heat dissipation due to increased surface area relative to conductor cross-section. This enhanced cooling capability allows for higher current-carrying capacity in the same installation space, making flat cables particularly valuable in underground applications where space constraints are critical.

Voltage drop calculations become particularly important in underground mining applications due to the extended cable runs often required. The resistance characteristics of tinned copper conductors, combined with the specific geometry of flat cables, must be carefully considered when designing power distribution systems. The flat configuration typically results in slightly higher resistance per unit length compared to round conductors due to the proximity effect, but this disadvantage is often offset by the ability to use larger conductor sizes in the same installation space.

Electrical testing requirements for Type G cables exceed those of conventional industrial cables. Insulation resistance testing at elevated voltages ensures that the EPR insulation system maintains adequate dielectric strength throughout its service life. High-voltage testing, typically performed at 2.5 times the rated voltage plus 1000 volts for one minute, validates the insulation system's ability to withstand transient overvoltages that may occur in mining electrical systems.

Applications in Underground Mining Operations

The primary application of Type G cables lies in powering DC off-track mining equipment, where their unique characteristics provide significant operational advantages. Shuttle cars, which transport coal and ore from mining faces to conveyor systems or loading points, require flexible power connections that can accommodate the vehicle's mobility while maintaining reliable electrical contact. The flat profile of Type G cables allows for more compact cable management systems on these vehicles, reducing the risk of cable damage from contact with tunnel walls or equipment.

Drilling operations represent another critical application where Type G cables excel. Underground drilling equipment, whether used for exploration, blast hole preparation, or ground support installation, requires power cables that can handle the mechanical stresses associated with equipment movement and positioning. The enhanced flexibility of flat cables allows drill operators to position equipment in tight spaces while maintaining reliable power connections.

Cutting and loading machines, including continuous miners and longwall equipment, place extreme demands on their power cables. These machines operate continuously in abrasive environments while generating significant mechanical vibration and movement. Type G cables' robust construction and flexible design enable them to withstand these demanding conditions while maintaining electrical integrity.

Beyond mobile equipment applications, Type G cables find use in temporary power distribution systems within underground mines. During mine development, construction, or maintenance activities, flexible power distribution becomes essential. The portability and durability of these cables make them ideal for powering temporary lighting, ventilation equipment, and construction tools in areas where permanent electrical infrastructure is not yet available.

The cables' suitability for demanding environments extends to their performance in the presence of oil, moisture, and elevated temperatures common in underground mining. Hydraulic fluid leaks, water seepage, and diesel exhaust create challenging conditions that would quickly degrade conventional cables. The chemical resistance of CPE jackets and EPR insulation ensures continued performance even with direct exposure to these contaminants.

Australian Underground Mining: Major Operations and Applications

Australia's underground mining industry represents some of the world's most technologically advanced and challenging mining operations. The continent's geological diversity and mineral wealth have driven the development of sophisticated underground mining techniques that rely heavily on advanced electrical infrastructure, including specialized cables like the Type G system.

The Cadia Valley Operations in New South Wales exemplify modern underground mining at its most sophisticated. Located near Orange, these gold and copper mines utilize panel caving techniques that require extensive underground infrastructure. Panel caving operations create large underground caverns where ore is extracted through gravitational flow, necessitating complex electrical systems to power the extraction equipment, ventilation systems, and materials handling infrastructure. Type G cables in these operations power shuttle cars that transport ore from draw points to underground crushing facilities, as well as mobile equipment used for infrastructure maintenance and development.

The scale of Cadia's operations, with multiple underground levels spanning hundreds of meters vertically, creates unique challenges for power distribution. Cable runs may extend over several kilometers through winding underground tunnels, making voltage drop calculations critical. The flat profile of Type G cables allows for more efficient cable tray utilization in these extended runs, while their robust construction ensures reliability in the high-stress environment of active mining operations.

Olympic Dam in South Australia represents one of the world's most complex underground mining operations, extracting copper, uranium, gold, and silver from a single orebody. The mine's depth, exceeding 1,000 meters below surface, creates extreme environmental conditions including elevated temperatures and complex ventilation requirements. Type G cables in Olympic Dam applications must withstand not only the mechanical stresses of mobile equipment operation but also the elevated temperatures encountered at depth.

The poly-metallic nature of Olympic Dam's ore requires sophisticated processing equipment underground, including grinding mills, flotation cells, and materials handling systems. Each of these systems requires reliable power distribution that can accommodate the varying electrical loads associated with mineral processing. Type G cables' high ampacity ratings and thermal performance make them suitable for powering the high-current equipment required in these applications.

Mount Isa's underground copper operations in Queensland feature some of Australia's most extensive underground tunnel networks, with approximately 950 kilometers of tunnels spanning multiple levels and mining zones. This vast underground infrastructure requires a power distribution system that can reliably deliver electricity across long distances while accommodating the continuous expansion and modification of mining areas.

The complexity of Mount Isa's underground layout creates unique challenges for cable installation and maintenance. Type G cables must navigate complex routing through existing infrastructure while maintaining the flexibility required for future modifications. The cables' flat profile allows for installation in narrow spaces between existing utilities, while their durability ensures continued performance despite the mechanical stresses associated with ongoing mining activities.

Ernest Henry Mine in Queensland represents the transition from open-pit to underground mining, a process that requires careful integration of surface and underground electrical systems. As the mine develops deeper underground zones, Type G cables play a critical role in extending power distribution from surface facilities to underground operations. This transition phase demands cables that can accommodate the changing electrical requirements as mining progresses from surface to underground operations.

Gwalia Mine in Western Australia holds the distinction of being Australia's deepest trucking gold mine, with operations extending to approximately 1,600 meters below surface. The extreme depth creates unique challenges for electrical systems, including increased ambient temperatures, elevated ground pressures, and complex ventilation requirements. Type G cables must perform reliably at these depths while withstanding the mechanical stresses associated with deep mining operations.

The vertical extent of Gwalia's operations requires power distribution systems that can handle the electrical demands of equipment operating at significant depths. Voltage drop becomes a critical consideration over the extended cable runs required to reach the deepest mining levels. Type G cables' electrical characteristics and the ability to specify larger conductor sizes help minimize voltage drop while maintaining system efficiency.

Coal mining operations in Queensland's Bowen Basin, including Moranbah North and the newer Curragh "Mammoth" Mine, represent the cutting edge of underground coal extraction technology. These longwall mining operations require continuous, reliable power to maintain the high production rates essential for economic viability. Longwall equipment, including shearers, armored face conveyors, and powered supports, operates continuously during production shifts, placing extreme demands on the electrical infrastructure.

The Curragh "Mammoth" Mine, with its 2 million tonnes per annum capacity, exemplifies the scale of modern underground coal mining. Type G cables in these operations must support the electrical requirements of multiple longwall faces operating simultaneously, each requiring hundreds of amperes of electrical power. The cables' high ampacity ratings and robust construction enable them to meet these demanding electrical requirements while maintaining the reliability essential for continuous production operations.

Specific Mining Scenarios and Applications

Panel caving operations represent one of the most demanding applications for Type G cables. In these operations, large underground chambers are created through controlled caving of the ore body, with material extracted through a network of draw points at the base of the cave. Mobile equipment, including load-haul-dump units and shuttle cars, operates within these confined spaces to transport ore to underground crushing facilities.

The environment within panel caves creates unique challenges for electrical equipment. Dust levels are typically high due to the continuous movement of broken ore, while the confined spaces limit ventilation effectiveness. Type G cables must maintain electrical integrity despite exposure to abrasive dust particles and elevated temperatures. The flat profile of these cables allows for more effective cable protection systems, while their robust jacket construction provides resistance to abrasion from contact with moving ore.

Longwall mining operations in coal mines create different but equally demanding conditions for electrical cables. The longwall face represents a continuously moving work environment where all equipment must advance as coal extraction progresses. Type G cables powering longwall equipment must accommodate this continuous movement while maintaining electrical connections to high-power equipment including the longwall shearer, which may draw several hundred amperes during cutting operations.

The confined space of longwall operations, typically less than two meters in height, places premium value on the space efficiency of flat cables. Type G cables can be routed along the mine floor or ceiling with minimal clearance requirements, allowing maximum utilization of the limited space available for personnel and equipment movement. The cables' flexibility enables them to accommodate the complex routing required around longwall equipment while maintaining the bend radius requirements necessary for electrical integrity.

Decline development operations require Type G cables to support mobile drilling and excavation equipment operating on steep grades. These operations often involve equipment working on grades exceeding 15 degrees, creating additional mechanical stresses on power cables. The enhanced flexibility of Type G cables allows them to accommodate the complex cable routing required when equipment operates on inclined surfaces while maintaining reliable electrical connections.

Underground crushing and materials handling systems represent stationary applications where Type G cables may be used for permanent or semi-permanent installations. These systems typically require higher power levels than mobile equipment, taking advantage of the higher ampacity ratings available in larger Type G cable configurations. The cables' resistance to oil and chemical exposure makes them suitable for installation in areas where hydraulic equipment and materials handling systems may create contaminated environments.

Emergency and backup power applications in underground mines require cables that can be rapidly deployed and reliably operated under emergency conditions. Type G cables' portability and robust construction make them suitable for temporary power distribution during emergency response operations or planned maintenance activities when primary power systems are unavailable.

Frequently Asked Questions: Common Underground Mining Challenges

Question 1: What happens if the cable is cut or damaged underground?

Cable damage represents one of the most serious safety hazards in underground mining operations. When a Type G cable is cut or damaged, the immediate response depends on whether the installation includes ground-check monitoring systems. Type G-GC (Ground Check) versions incorporate continuous monitoring systems that detect ground faults and automatically shut down power when insulation integrity is compromised.

For standard Type G cables without ground-check systems, damage detection relies on overcurrent protection devices and regular visual inspection. However, this approach may not provide immediate detection of insulation damage that could create hazardous conditions. Best practice involves regular cable inspection, proper installation techniques to minimize damage risk, and immediate power shutdown when damage is suspected.

Repair procedures for damaged Type G cables must follow strict safety protocols. Power must be completely de-energized and locked out before any repair work begins. Temporary repairs using approved splice kits may be acceptable for emergency situations, but permanent repairs typically require cable replacement or factory-certified splicing procedures performed by qualified technicians.

Question 2: Is the cable safe at high temperatures and in abrasive environments?

Type G cables are specifically engineered for the harsh conditions encountered in underground mining. The 90°C conductor temperature rating provides substantial safety margin for normal mining operations, while the EPR insulation system maintains its electrical properties even at elevated temperatures. The chlorinated polyethylene jacket offers superior resistance to abrasion, chemical exposure, and thermal aging compared to conventional cable jackets.

However, sustained operation at maximum temperature limits will reduce cable life. Temperature monitoring and proper cable sizing are essential to ensure that normal operating temperatures remain well below the maximum rated temperature. In applications where elevated temperatures are expected, consider using larger conductor sizes to reduce resistive heating, or implement forced cooling systems to maintain acceptable operating temperatures.

Abrasion resistance testing per applicable standards demonstrates that Type G cables can withstand the mechanical wear associated with mobile equipment operation and contact with mine surfaces. However, proper cable protection systems, including cable guards, strain reliefs, and appropriate routing, remain essential to maximize cable life in abrasive environments.

Question 3: What bending radius is needed when navigating tight tunnels?

The minimum bending radius requirement of six times the cable's outer diameter represents a critical design parameter that must be observed to prevent damage to the cable's internal structure. Exceeding this bending radius can cause conductor deformation, insulation damage, or jacket cracking that may not be immediately apparent but will lead to premature cable failure.

In practice, achieving the minimum bending radius in tight underground spaces requires careful planning and often custom cable management systems. Cable guides, pulleys, and support systems must be designed to maintain adequate bend radius even when equipment moves through its full range of motion. For extremely tight spaces, consider using smaller conductor sizes with multiple parallel runs rather than attempting to route larger cables through inadequate bend radius conditions.

Dynamic bending applications, where cables must flex repeatedly during equipment operation, require even more conservative bending radius calculations. The continuous flexing action can cause fatigue failure even when the minimum static bend radius is maintained. In these applications, consider using cables specifically designed for continuous flex service or implement cable management systems that minimize dynamic bending stresses.

Question 4: Can it be used in wet or submerged conditions?

Type G cables are designed for direct burial and wet location applications, with jacket materials that provide excellent moisture resistance. The EPR insulation system also offers superior moisture resistance compared to conventional insulation materials. However, prolonged submersion in water may eventually compromise cable integrity, particularly if the water contains dissolved minerals or chemicals common in mine environments.

For applications where cables may be exposed to standing water or high humidity conditions, regular insulation resistance testing becomes critical. Insulation resistance values should be monitored and trended over time to detect any degradation that might indicate moisture ingress. Values below acceptable limits indicate the need for immediate cable replacement to prevent safety hazards.

Underwater applications require special consideration of the cable's mechanical properties. Water pressure at depth can compress the cable structure, potentially affecting its electrical characteristics. Additionally, the buoyancy of the cable may create mechanical stresses if proper support and anchoring systems are not provided.

Question 5: What if conductivity degrades over time?

Conductor resistance naturally increases over time due to corrosion, particularly in harsh mining environments. The tin coating on Type G cable conductors provides enhanced corrosion resistance, but some degradation is inevitable over extended service life. Regular electrical testing, including conductor resistance measurements, helps identify cables that may require replacement before they affect system reliability.

Factors that accelerate conductor degradation include exposure to moisture, chemical contaminants, and elevated temperatures. Proper cable installation and maintenance practices can significantly extend conductor life. These practices include maintaining adequate drainage to prevent water accumulation, protecting cables from chemical exposure, and avoiding sustained operation at elevated temperatures.

When conductor resistance increases beyond acceptable limits, cable replacement is typically more cost-effective than attempted repairs. Splicing additional conductors to compensate for increased resistance creates additional failure points and rarely provides satisfactory long-term performance.

Question 6: Are alternatives like round cables better?

Round Type G-GC cables offer the advantage of integrated ground-check monitoring systems that provide immediate detection of insulation failures. However, the space efficiency of flat cables often makes them preferred in underground mining applications where installation space is limited. The choice between flat and round cables depends on the specific application requirements and available installation space.

Round cables may offer advantages in applications where the cable must be frequently coiled or stored, as their circular cross-section may be less prone to twisting and kinking. However, flat cables typically provide better heat dissipation and can often be installed in smaller spaces, making them advantageous for many underground mining applications.

The decision between flat and round cables should consider factors including available installation space, required electrical characteristics, environmental conditions, and safety requirements. In many cases, the choice is dictated by the physical constraints of the installation rather than purely electrical considerations.

Question 7: How should cables be sized for deeper mining operations?

Cable sizing for deep mining operations requires consideration of several factors beyond the basic ampacity requirements. Voltage drop becomes increasingly important as cable runs extend over greater distances to reach deeper mining levels. The extended cable lengths required for deep operations can result in significant voltage drop if cables are not properly sized.

Ampacity derating may be required for deep mining operations due to elevated ambient temperatures encountered at depth. Geothermal heating can significantly increase underground temperatures, requiring larger conductor sizes to maintain safe operating temperatures. Temperature monitoring and proper ventilation become critical for deep mining electrical systems.

Mechanical considerations also become more important in deep mining operations. The increased weight of longer cable runs creates additional mechanical stresses that must be accommodated through proper support systems and strain relief. Cable support systems must be designed to handle the full weight of extended cable runs while maintaining proper bend radius requirements.

Field monitoring tools become essential for deep mining operations to ensure that electrical systems continue to operate within safe parameters. These tools should include insulation resistance monitoring, temperature monitoring, and voltage monitoring to detect any degradation in system performance that might indicate the need for maintenance or cable replacement.

Conclusion

The Type G Two-Conductor Flat Portable Power Cable represents a specialized solution engineered specifically for the demanding requirements of underground mining operations. Its unique combination of electrical performance, mechanical durability, and environmental resistance makes it an essential component of modern mining electrical infrastructure. From the deep gold mines of Western Australia to the sophisticated panel caving operations of New South Wales, these cables provide the reliable power distribution necessary for safe and efficient underground mining operations.

The comprehensive technical specifications of Type G cables, including their robust construction with EPR insulation and CPE jackets, demonstrate the engineering sophistication required to meet mining industry demands. Their compliance with rigorous industry standards ensures compatibility with international mining operations while providing the safety margins necessary for personnel protection in hazardous underground environments.

Understanding the specific applications and challenges associated with Type G cables enables mining professionals to make informed decisions about power distribution systems. The cable's performance in Australia's diverse underground mining operations, from coal mining in Queensland to metal mining in Western Australia, demonstrates its versatility and reliability across different mining environments and operational requirements.

The detailed examination of common challenges and solutions provided in the FAQ section offers practical guidance for mining professionals dealing with the day-to-day realities of underground power distribution. These insights, combined with proper installation and maintenance practices, help ensure that Type G cables provide the long-term reliability essential for successful underground mining operations.

As underground mining operations continue to evolve toward greater mechanization and deeper excavation, the importance of reliable electrical infrastructure will only increase. Type G cables represent the current state of the art in mining power distribution technology, providing the foundation for safe, efficient, and profitable underground mining operations across Australia and worldwide. Their proven performance in the world's most challenging mining environments establishes them as the standard for underground mining power distribution applications.
