Type G Two-Conductor Round Portable Power Cable 2kV

Introduction

In the demanding world of heavy-duty industrial operations, reliable power transmission forms the backbone of successful projects. Type G Two-Conductor Round Portable Power Cable rated at 2kV represents a specialized solution engineered specifically for the most challenging environments where standard cables simply cannot perform. These robust electrical conduits serve as the lifeline for critical equipment in mining operations, construction sites, and marine platforms, where failure is not an option.

Understanding what makes Type G cables unique begins with recognizing their fundamental design philosophy. Unlike conventional fixed installation cables, these portable power cables must withstand constant movement, harsh environmental conditions, and mechanical stress while maintaining electrical integrity. The "Type G" designation indicates a specific construction standard that emphasizes portability, durability, and safety in applications where equipment frequently relocates or operates in temporary installations.

The 2kV voltage rating represents the cable's ability to safely handle up to 2,000 volts of electrical potential, making it suitable for medium-voltage applications that require more power than standard 600V systems can provide. This voltage level sits in a sweet spot for many industrial applications, offering substantial power transmission capability while remaining manageable from safety and installation perspectives.

Think of Type G cables as the heavy-duty workhorses of the electrical world. Just as a construction vehicle differs fundamentally from a passenger car in its ability to handle rough terrain and heavy loads, Type G cables are purpose-built to excel where standard electrical cables would quickly fail. Their two-conductor design with integrated grounding provides a complete power delivery system in a single, manageable package.

Application Scenarios

Mining Industry Applications

The mining industry presents perhaps the most demanding environment for electrical cables, and Type G 2kV cables excel in these challenging conditions. Underground mining operations require portable power solutions that can energize drilling equipment, ventilation fans, water pumps, and lighting systems while withstanding the constant abuse of rough handling, chemical exposure, and mechanical stress.

Consider a typical underground coal mine scenario where a continuous mining machine needs reliable power as it advances through coal seams. The Type G cable must flex and bend repeatedly as the machine moves, resist damage from sharp rock edges and abrasive coal dust, and maintain electrical integrity despite exposure to moisture and potentially explosive atmospheres. The cable's robust construction handles these demands while providing the high current capacity needed for powerful mining equipment.

Surface mining operations present different but equally challenging requirements. Open-pit mines often require temporary power installations that must relocate as mining operations progress. Draglines, shovels, and conveyor systems need substantial electrical power delivered through cables that can withstand weather extremes, from scorching desert heat to arctic cold. The Type G cable's temperature rating and weather-resistant jacket materials make it ideal for these applications.

Construction Site Applications

Large construction projects frequently require temporary power distribution systems that can adapt as work progresses. Type G cables serve as the arterial network connecting portable generators to heavy equipment like tower cranes, concrete pumps, and welding stations. The cable's portability becomes crucial when construction schedules demand rapid setup and teardown of power systems.

Imagine a high-rise construction project where temporary power must reach equipment on various floors as the building rises. The Type G cable's flexibility and durability allow it to be routed through temporary openings, around structural elements, and up elevator shafts without suffering damage that could interrupt critical construction activities. The 2kV rating provides sufficient voltage to minimize power losses over long distances typical in large construction sites.

Industrial and Manufacturing Settings

Manufacturing facilities often require portable power for maintenance operations, temporary production lines, or emergency backup systems. Type G cables excel in these applications where equipment may need relocation or where temporary power connections support facility modifications. The cables handle the high current demands of industrial machinery while providing the flexibility needed for frequent reconfiguration.

Process industries like petrochemical facilities particularly benefit from Type G cables' chemical resistance and robust construction. When maintenance operations require temporary power in areas exposed to corrosive chemicals or extreme temperatures, the cable's specialized jacket materials and high-temperature rating ensure reliable operation throughout the maintenance period.

Marine and Offshore Platform Applications

Maritime environments present unique challenges that Type G cables address effectively. Offshore oil rigs require portable power for drilling operations, where cables must resist saltwater corrosion, withstand constant motion from wave action, and provide reliable power in potentially explosive atmospheres. The cable's tinned copper conductors resist corrosion, while the robust jacket materials handle the physical stress of shipboard operations.

Ship maintenance and repair operations often require flexible power connections that can adapt to the vessel's configuration. Type G cables provide the mechanical flexibility needed to route power through tight spaces while maintaining the electrical integrity required for critical ship systems. The cables' ability to handle frequent flexing makes them ideal for applications where power connections must move with the vessel's motion.

Electrical and Mechanical Parameters

Voltage Rating and Power Handling

The 2kV voltage rating represents the cable's continuous operating voltage capability, with the insulation system designed to handle voltage stresses well above this level for safety margins. This voltage rating places Type G cables in the medium-voltage category, suitable for applications requiring more power than standard 600V systems can economically deliver. The higher voltage reduces current requirements for a given power level, which translates to smaller conductor sizes and reduced voltage drop over long distances.

Understanding ampacity ratings helps users select the appropriate cable size for their applications. The ampacity represents the maximum current the cable can carry continuously without exceeding its temperature rating. For Type G cables, ampacity ranges from 72 amperes for the smallest 2×8 AWG configuration up to 328 amperes for the largest 2×4/0 AWG size. These ratings assume a conductor operating temperature of 90°C and ambient air temperature of 40°C, following ICEA S-75-381 standards.

The relationship between conductor size and ampacity follows electrical engineering principles where larger conductors have lower resistance and can carry more current without excessive heating. Think of electrical conductors like water pipes where larger pipes can carry more water with less pressure drop. Similarly, larger electrical conductors can carry more current with less voltage drop and heat generation.

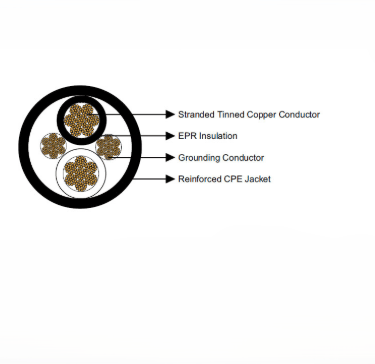

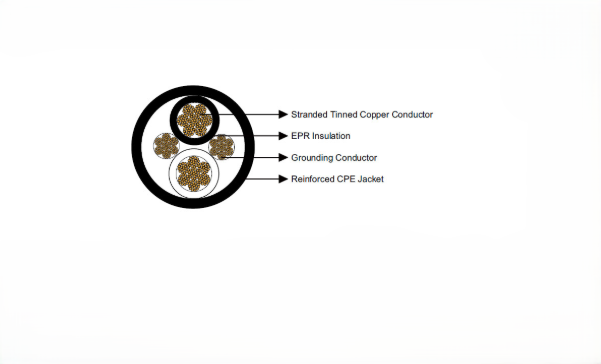

Conductor Construction and Materials

The stranded, annealed, tinned copper conductors represent a carefully engineered solution for portable applications. Stranding provides the flexibility essential for portable cables, allowing them to bend repeatedly without conductor failure. The individual copper strands can flex independently, distributing mechanical stress throughout the conductor cross-section rather than concentrating it at bend points.

Annealing is a heat treatment process that makes copper more flexible by relieving internal stresses created during the wire drawing process. This treatment ensures that the copper maintains its flexibility even after repeated bending cycles. The tinning process applies a thin layer of tin to the copper surface, providing corrosion protection particularly important in marine environments or applications with exposure to moisture and chemicals.

The conductor construction follows specific strand patterns optimized for flexibility while maintaining good electrical contact between individual strands. The stranding process twists individual wires together in patterns that distribute mechanical stress evenly and maintain the conductor's circular cross-section even when bent. This attention to construction detail ensures long service life in demanding portable applications.

Insulation System Design

Ethylene Propylene Rubber (EPR) insulation provides the electrical barrier between conductors and ensures safe operation at the 2kV voltage level. EPR offers excellent electrical properties combined with superior resistance to heat, moisture, and chemical exposure compared to other insulation materials. The rubber-like flexibility of EPR complements the stranded conductor construction to create a cable that maintains its electrical integrity through repeated flexing cycles.

The insulation thickness varies with conductor size to maintain proper electrical stress distribution. Smaller conductors have proportionally thicker insulation relative to their diameter, while larger conductors can use relatively thinner insulation while still meeting electrical requirements. This approach optimizes the overall cable diameter while ensuring adequate electrical performance across all conductor sizes.

EPR insulation excels in temperature performance, maintaining its electrical and mechanical properties across a wide temperature range. The 90°C conductor operating temperature rating allows the cable to handle high current loads without insulation degradation. This temperature capability proves particularly valuable in applications where ambient temperatures are high or where the cable must carry heavy electrical loads.

Grounding System Integration

The integrated grounding conductor provides essential safety protection by offering a low-impedance path for fault currents. This grounding conductor uses tinned copper construction similar to the main conductors, ensuring reliable electrical connection and corrosion resistance. The optional green outer covering provides visual identification to help installation personnel properly connect the grounding system.

Proper grounding becomes critical in portable applications where equipment frequently connects and disconnects from power sources. The integrated grounding conductor ensures that protective grounding remains intact throughout these operations, maintaining personnel safety and equipment protection. The grounding conductor size scales with the main conductor size to handle the potential fault currents that could occur in the electrical system.

Understanding grounding principles helps appreciate why this feature is essential in portable power applications. When electrical faults occur, the grounding conductor provides a path for fault current to return to the source, allowing protective devices like circuit breakers to operate and clear the fault. Without proper grounding, faulted equipment could remain energized at dangerous voltage levels, creating serious safety hazards for personnel.

Jacket Construction and Protection

The Chlorinated Polyethylene (CPE) jacket provides the cable's primary defense against environmental hazards and mechanical damage. CPE offers exceptional resistance to oils, chemicals, abrasion, and weather exposure while maintaining flexibility across a wide temperature range. This material choice reflects the demanding environments where Type G cables typically operate.

The jacket thickness varies with cable size, with larger cables requiring extra-heavy-duty jackets to provide adequate protection for their greater size and weight. Cables with nominal outside diameters exceeding 2.0 inches automatically receive extra-heavy-duty jackets to ensure proportional protection. This approach recognizes that larger cables face greater mechanical stresses and require enhanced protection.

Alternative jacket materials like CSP (Chlorosulfonated Polyethylene), PCP (Polychloroprene), NBR (Nitrile Butadiene Rubber), and PVC (Polyvinyl Chloride) are available for specialized applications. Each material offers specific advantages: CSP provides enhanced ozone and weather resistance, PCP offers good flexibility at low temperatures, NBR excels in oil resistance, and PVC provides cost-effective protection for less demanding applications.

The optional two-layer jacket construction with reinforcing fiber between layers provides maximum protection for the most severe applications. This construction approach uses an inner jacket for primary cable protection and an outer jacket for additional mechanical protection, with reinforcing fibers between the layers to resist tearing and puncture damage.

Mechanical Properties and Installation Requirements

The minimum bending radius of six times the outside diameter (6×OD) represents an important installation parameter that ensures cable longevity. Bending cables beyond this radius creates excessive stress in the conductors and insulation, potentially leading to premature failure. This bending radius requirement reflects the cable's construction and materials, balancing flexibility with mechanical integrity.

To put this in perspective, a cable with a 2-inch outside diameter would have a minimum bending radius of 12 inches. This means installation personnel must use gentle curves rather than sharp bends when routing the cable around obstacles or through equipment connections. Proper installation techniques that respect these bending limitations are essential for achieving the cable's design life in portable applications.

The cable's weight varies significantly with conductor size, ranging from 495 pounds per thousand feet for the smallest size to 3,500 pounds per thousand feet for the largest. This weight factor affects installation planning, as larger cables require appropriate lifting equipment and support systems. Understanding weight implications helps project planners select appropriate handling equipment and plan installation logistics.

Common Mining Issues and Frequently Asked Questions

Mechanical Durability in Harsh Environments

Question: How does the cable handle mechanical abrasion from rough mining terrain and heavy equipment?

The CPE jacket material is specifically formulated to resist cuts, gouges, and abrasion that characterize mining environments. The jacket's molecular structure creates a tough, resilient surface that can withstand contact with sharp rock edges, metal surfaces, and abrasive materials like coal dust or sand. For applications with extreme abrasion potential, the reinforced double-layer jacket option provides additional protection through its fiber-reinforced construction.

Real-world performance in mining applications demonstrates the jacket's effectiveness. Underground coal mines, where cables must resist damage from continuous mining machines, roof bolters, and shuttle cars, have successfully used Type G cables for years without premature jacket failure. The key lies in the jacket's ability to deform under impact without cracking or tearing, then return to its original shape once the stress is removed.

Installation practices also play a crucial role in maximizing abrasion resistance. Using appropriate cable protection like temporary covers or routing cables away from high-traffic areas extends service life even in the most demanding conditions. When direct contact with abrasive surfaces is unavoidable, regular inspection schedules can identify potential issues before they compromise cable integrity.

Flexibility and Handling Characteristics

Question: Can the cable withstand frequent relocation and bending during underground operations without conductor damage?

The stranded conductor construction and EPR insulation work together to provide exceptional flexibility for repeated bending cycles. Each individual copper strand can flex independently, distributing mechanical stress throughout the conductor cross-section rather than concentrating it at specific points. This design approach prevents the work hardening and eventual breakage that affects solid conductors in flexing applications.

Laboratory testing demonstrates that properly installed Type G cables can withstand hundreds of thousands of bending cycles without electrical or mechanical failure. The key factor is maintaining the minimum bending radius of 6×OD during all handling operations. Installation crews trained in proper cable handling techniques can relocate equipment repeatedly without compromising cable integrity.

The EPR insulation contributes significantly to flex life by maintaining its properties through repeated deformation cycles. Unlike some insulation materials that become brittle with repeated flexing, EPR maintains its elasticity and dielectric strength throughout the cable's service life. This characteristic proves particularly valuable in mining applications where cables may flex daily as equipment moves through mine workings.

Fire Safety and Chemical Resistance

Question: Is the cable flame retardant and oil resistant for underground coal mine applications?

Standard Type G cables incorporate flame-retardant additives in the CPE jacket material to meet applicable fire safety standards. These additives work by releasing flame-suppressing gases when exposed to heat, helping prevent fire propagation along the cable surface. However, specific flame-retardant requirements vary by mining jurisdiction and application, so users should verify that the cable meets their local safety standards.

For enhanced oil resistance, alternative jacket materials like NBR (Nitrile Butadiene Rubber) provide superior performance when cables must operate in environments with hydraulic fluid spills or oil contamination. NBR jackets resist swelling and degradation when exposed to petroleum-based fluids, maintaining their protective properties throughout the exposure period.

Underground coal mine applications may require additional safety certifications beyond standard flame retardancy. Mine Safety and Health Administration (MSHA) approval may be necessary for certain applications, and specialized cable constructions are available to meet these requirements. Users should consult with cable manufacturers and mine safety officials to ensure compliance with all applicable regulations.

Temperature Performance in High-Heat Applications

Question: How does the cable perform at elevated temperatures found near mining equipment like generators and motors?

The 90°C conductor operating temperature rating provides substantial margin above typical ambient temperatures encountered in mining applications. This rating means the conductors can safely operate at 194°F continuously without insulation degradation or reduced service life. The EPR insulation system maintains its electrical and mechanical properties throughout this temperature range, ensuring reliable performance even when carrying maximum rated current.

Heat sources in mining applications typically create localized temperature increases rather than uniform heating along the entire cable length. The cable's thermal design can handle these hot spots as long as the average conductor temperature remains within the rating. Proper installation practices, such as avoiding cable coiling in high-temperature areas and providing adequate ventilation, help maintain temperatures within safe limits.

For applications with extreme temperature exposure, such as cables routed near furnaces or heating equipment, special high-temperature insulation systems are available. These systems can handle conductor temperatures up to 105°C or higher, providing additional safety margin for the most demanding thermal environments. However, such applications require careful engineering analysis to ensure all cable components can handle the elevated temperatures.

Moisture and Chemical Exposure Protection

Question: What protection does the cable provide against moisture and chemical exposure in wet mining conditions?

The EPR insulation provides excellent moisture resistance through its non-polar molecular structure, which does not absorb water readily. This characteristic maintains the insulation's dielectric strength even in continuously wet conditions. The thick CPE jacket provides additional moisture protection by creating a barrier that prevents water penetration to the insulation system.

Chemical resistance varies with the specific chemicals encountered, but CPE jackets resist most acids, bases, and salt solutions commonly found in mining environments. The tinned copper conductors provide additional corrosion protection, as the tin coating prevents direct contact between copper and corrosive substances. This protection proves particularly valuable in marine mining applications where saltwater exposure is common.

For applications with specific chemical exposure concerns, laboratory testing can verify compatibility between the cable materials and the chemicals present. Alternative jacket materials may provide enhanced protection for specific chemical environments. Regular inspection schedules help identify any chemical attack before it compromises cable integrity, allowing for preventive replacement when necessary.

Power System Integration and Compatibility

Question: Can Type G cables integrate effectively with portable mining generators and mobile substation equipment?

Type G cables are specifically designed for portable power applications, making them ideal for connecting generators, mobile substations, and temporary power distribution equipment. The cable's flexibility allows easy connection to equipment that may require repositioning, while the robust construction handles the mechanical stress of frequent connections and disconnections.

The 2kV voltage rating matches common portable power system voltages, providing efficient power transmission with minimal voltage drop over typical distribution distances. The range of available conductor sizes allows system designers to select the appropriate cable for specific load requirements, from small portable tools to large mining equipment.

Connection hardware compatibility is an important consideration when integrating Type G cables with existing equipment. Standard industrial connectors and termination methods work well with the cable's construction, but proper installation techniques are essential for reliable connections. Trained personnel should perform all terminations following manufacturer recommendations and applicable electrical codes.

Conclusion

Type G Two-Conductor Round Portable Power Cable rated at 2kV represents a sophisticated engineering solution for the most demanding portable power applications. Its combination of robust construction, flexible design, and reliable electrical performance makes it indispensable in mining operations, construction sites, industrial facilities, and marine environments where failure is not acceptable.

The cable's success lies in its thoughtful design that balances competing requirements. The stranded copper conductors provide necessary flexibility while maintaining excellent electrical performance. The EPR insulation offers superior electrical properties with resistance to environmental hazards. The CPE jacket provides mechanical protection without sacrificing flexibility. The integrated grounding conductor ensures safety in all applications.

Understanding the cable's capabilities and limitations helps users make informed decisions about application suitability and installation practices. Proper selection based on electrical requirements, environmental conditions, and mechanical demands ensures optimal performance and service life. Regular inspection and maintenance programs help identify potential issues before they compromise operations.

The Type G cable's compliance with established industry standards provides confidence in its design and performance capabilities. ICEA S-75-381/NEMA WC 58 standards ensure consistent quality and performance across manufacturers. ASTM standards verify material properties and construction quality. CSA standards provide additional verification for Canadian applications.

As industrial operations become increasingly demanding and portable power requirements continue to grow, Type G Two-Conductor Round Portable Power Cable 2kV will remain an essential component in the electrical infrastructure that powers modern industry. Its proven performance in the world's most challenging environments makes it the cable of choice for applications where reliability, durability, and safety are paramount concerns.
