Understanding AS/NZS 1802 Type 260 1.1 KV Mining Cables

Introduction

Mining operations demand specialized electrical infrastructure capable of withstanding extreme conditions while maintaining safety and reliability. Mining cables form a critical component of this infrastructure, providing power to essential machinery and equipment in some of the harshest industrial environments on earth.

AS/NZS 1802 Type 260 mining cables represent a specific category of armored mining cables engineered to meet the stringent requirements of the Australian and New Zealand standards. These cables are designed with enhanced mechanical protection and strength to ensure reliable power transmission in challenging mining scenarios.

The adherence to AS/NZS standards ensures these cables meet comprehensive safety, reliability, and performance benchmarks necessary for critical mining applications where cable failure could result in significant operational disruption, equipment damage, or safety hazards.

What are AS/NZS 1802 Type 260 1.1 KV Mining Cables?

Standard Overview

The AS/NZS 1802:2003 standard provides comprehensive guidelines for electric cables designed specifically for reeling and trailing applications in mining environments. Type 260 designation refers to armored mining cables primarily used as feeder cables where enhanced mechanical protection and strength are essential requirements.

The 1.1 kV voltage rating indicates these cables are designed for low-voltage power transmission applications in mining operations, providing sufficient electrical isolation while maintaining flexibility and durability for their intended use cases. This voltage rating makes them suitable for powering most standard mining equipment without requiring the additional clearances and protections needed for medium or high-voltage systems.

Key Features of AS/NZS 1802 Type 260 Cables

Conductor Material

Based on the specifications provided, these cables utilize flexible stranded tinned annealed copper conductors. The tinning process provides enhanced corrosion resistance, while the stranded construction (indicated by notations like 84/0.30 - meaning 84 strands of 0.30mm diameter) ensures excellent flexibility despite the robust construction.

Insulation & Sheath

These cables employ:

• Insulation: Ethylene Propylene Rubber (EPR) - offering excellent electrical properties, temperature resistance, and durability

• Inner Sheath: Polychloroprene (PCP) providing initial protection and structural integrity

• Outer Sheath: Heavy-duty PCP offering superior resistance to abrasion, oils, weather, and flame propagation

Alternative sheathing options of CPE/CSP (chlorinated polyethylene/chlorosulfonated polyethylene) can be offered upon request for applications requiring specific chemical or temperature resistance properties.

Armoring

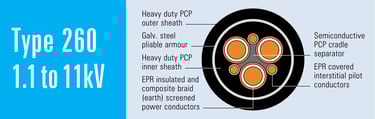

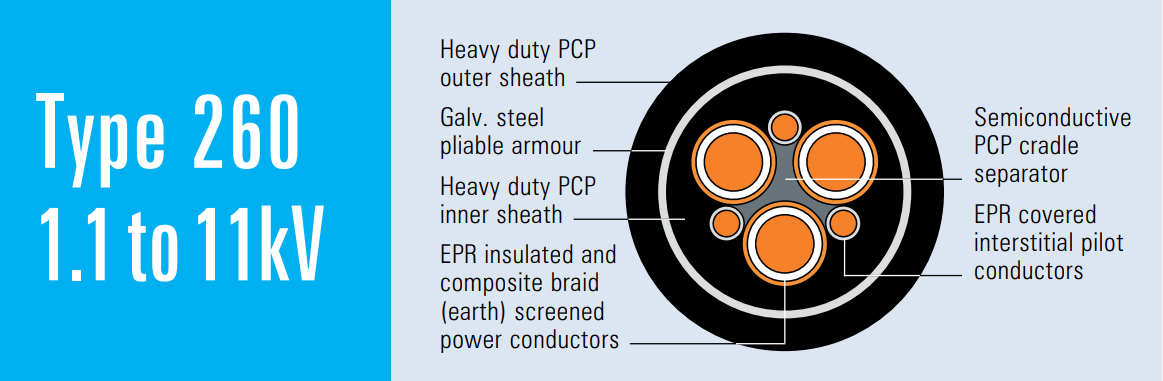

A key distinguishing feature of Type 260 cables is their pliable galvanized steel armor, consisting of galvanized low carbon (mild) steel strands. This armor layer provides:

• Enhanced mechanical protection against crushing and impact

• Improved tensile strength for pulling operations

• Additional shielding against external interference

• Protection against rodent damage in certain environments

Screening and Safety Features

The cables incorporate multiple safety features:

• Conductor Screen: Semiconductive compound (for cables 3.3kV and above)

• Insulation Screen: Semiconductive elastomer

• Composite Screen/Earth Conductor: Tinned annealed copper braiding interwoven with polyester yarn

• Interstitial Pilots: Three EPR-covered flexible stranded tinned copper conductors for monitoring and control purposes

Applications of AS/NZS 1802 Type 260 1.1 KV Mining Cables

Underground Mining

In underground mining environments, these armored cables excel at:

• Providing power to fixed underground infrastructure

• Feeding power distribution boards and substations

• Supplying electricity to stationary heavy equipment like pumps and ventilation systems

• Creating reliable power backbones in main tunnels and shafts

Open-Cut Mining

In surface mining operations, Type 260 cables are utilized for:

• Powering fixed processing equipment

• Connecting primary electrical infrastructure to semi-portable equipment

• Establishing reliable power networks across expansive mining sites

• Providing electrical feeds to operational areas where protection from heavy vehicles is required

Mining Equipment

These cables are specifically designed to supply power to critical mining equipment including:

• Transportable mining substations (particularly in sand mining applications)

• Fixed crushing and processing equipment

• Water management systems

• Conveyor systems and material handling equipment

Hazardous Areas

While all mining environments present hazards, Type 260 cables incorporate features enhancing safety in challenging conditions:

• Flame-retardant materials limiting fire propagation

• Earth screening systems for fault detection

• Pilot conductors enabling monitoring of electrical system integrity

• Robust construction preventing damage that could create ignition sources

Mobile and Semi-Mobile Applications

Though primarily designed as feeder cables rather than highly flexible trailing cables, Type 260 cables can support:

• Relocatable mining substations

• Semi-mobile processing equipment

• Equipment that requires occasional repositioning

• Applications where standard feeder cables would be vulnerable to damage

Electrical Parameters of AS/NZS 1802 Type 260 1.1 KV Mining Cables

Voltage Rating

Type 260 cables are available in multiple voltage ratings:

• Type 260.1: 1.1 kV (1100 Volts) - Suitable for standard low-voltage mining applications

• Type 260.3: 3.3 kV (3300 Volts) - Medium voltage mining applications

• Type 260.6: 6.6 kV (6600 Volts) - Higher voltage mining applications

• Type 260.11: 11 kV (11000 Volts) - High voltage mining applications

The appropriate rating should be selected based on the system voltage and safety requirements of the specific application.

Current-Carrying Capacity

The current capacity varies significantly based on conductor size:

• Smaller conductors (6mm²) are suitable for control and auxiliary circuits

• Mid-range conductors (25-70mm²) handle standard equipment power requirements

• Larger conductors (95-300mm²) support major power distribution and high-demand equipment

The current-carrying capacity is influenced by:

• Installation method (buried, in air, grouped)

• Ambient temperature

• Soil or surrounding medium thermal characteristics

• Duration of load (continuous vs. intermittent)

Insulation Properties

The EPR insulation provides:

• Excellent dielectric strength

• High temperature stability

• Superior resistance to moisture ingress

• Good long-term aging characteristics

• Resistance to many chemicals found in mining environments

Insulation thickness increases with voltage rating:

• Type 260.1: 1.5-3.0mm insulation thickness

• Type 260.3: 3.0mm insulation thickness

• Type 260.6: 5.0mm insulation thickness

• Type 260.11: 7.6mm insulation thickness

Temperature Range

These cables typically operate reliably within:

• Standard operating temperature range of -25°C to +90°C

• Emergency short circuit temperatures up to 250°C for limited durations

• Mechanical flexibility maintained even at lower temperature extremes

Potential Issues Encountered in Mining Applications

Mechanical Damage

Mining environments present significant mechanical hazards to cables:

• Heavy vehicles and equipment can crush or impact cables

• Sharp rocks and debris can abrade outer sheaths

• Tension during installation can strain conductors and insulation

Type 260 cables address these concerns through:

• Steel armor providing crush resistance

• Heavy-duty outer sheaths resistant to abrasion

• Flexible stranded conductors tolerating reasonable tension

Corrosion and Chemical Exposure

Mining operations often involve:

• Groundwater with dissolved minerals

• Process chemicals and lubricants

• Fuels and hydraulic fluids

• Corrosive dust and particulates

The cable design counters these threats through:

• Tinned copper conductors resisting corrosion

• PCP or optional CPE/CSP sheaths with good chemical resistance

• Multiple layers preventing penetration to critical components

Overheating

Heat-related issues can arise from:

• Overloading beyond rated capacity

• Poor installation limiting heat dissipation

• Environmental high temperatures

• Grouping of multiple cables without adequate spacing

Proper installation practices are essential to maintain operating temperatures within specifications.

Voltage Fluctuations and Power Surges

Mining electrical systems often experience:

• Start-up surges from large motors and equipment

• Capacity fluctuations when multiple systems operate simultaneously

• Transient spikes from switching operations

The robust insulation system and proper grounding through the composite screen help manage these electrical stresses.

Long-Term Durability

Extended service in harsh conditions can lead to:

• Gradual degradation of polymer components

• Accumulation of minor mechanical damage

• Moisture ingress at terminations or damage points

• UV degradation for exposed outdoor sections

Regular inspection and maintenance are essential for identifying early signs of degradation.

Frequently Asked Questions (FAQ)

Q1: What makes AS/NZS 1802 Type 260 1.1 KV Mining cables different from other industrial cables?

A: Unlike standard industrial cables, Type 260 mining cables feature pliable galvanized steel armor providing superior mechanical protection against crushing, impact, and abrasion. They incorporate dedicated earth screening systems, interstitial pilot conductors for monitoring, and heavy-duty sheaths specifically formulated to withstand the extreme conditions found in mining operations. The multi-layer construction with semiconductive screens ensures even electrical stress distribution and enhanced safety in fault conditions.

Q2: Can these cables be used in both underground and open-pit mining operations?

A: Yes, Type 260 cables are suitable for both environments. Their robust armored construction protects against the crushing hazards and sustained moisture exposure common in underground mines, while their resistance to UV radiation, temperature extremes, and chemical exposure makes them equally suitable for surface applications. Their primary limitation is in applications requiring frequent movement or flexibility, where Type 245 or other reeling cable types may be more appropriate.

Q3: How should AS/NZS 1802 Type 260 cables be installed to avoid overheating?

A: Proper installation includes ensuring adequate spacing between cables, avoiding sharp bends that can concentrate stress, providing proper support to prevent sagging, and ensuring the cable rating matches or exceeds the expected load. For buried installations, proper backfill material with good thermal dissipation characteristics should be used. Cable grouping factors must be applied when multiple cables are run together, and ambient temperature conditions must be considered when determining the appropriate cable size.

Q4: How do mining cables cope with exposure to chemicals and extreme temperatures?

A: Type 260 cables employ multiple defense strategies against harsh conditions. The PCP or optional CPE/CSP sheaths provide excellent resistance to oils, fuels, many industrial chemicals, and UV radiation. The EPR insulation maintains stable electrical properties across a wide temperature range (-25°C to +90°C). The tinned copper conductors resist corrosion, while the multi-layer construction prevents rapid degradation even if the outer sheath experiences damage.

Q5: Are AS/NZS 1802 Type 260 cables resistant to mechanical damage?

A: Yes, mechanical resilience is a key design feature of Type 260 cables. The pliable galvanized steel armor provides exceptional protection against crushing forces, impacts, and abrasion. The heavy-duty outer sheath (ranging from 3.8mm to 10.4mm thickness depending on cable size) offers additional protection against cuts and wear. For the most demanding applications, larger armor wire sizes (up to 7/1.25mm) provide enhanced structural integrity and protection.

Q6: Can these cables be used for high voltage applications?

A: The Type 260 family includes variants designed for different voltage levels. Type 260.1 (1.1kV) is suitable only for low voltage applications. For higher voltage requirements, Type 260.3 (3.3kV), Type 260.6 (6.6kV), and Type 260.11 (11kV) variants are available, featuring increased insulation thickness and enhanced semiconductor screening systems appropriate for their voltage class. Selection should always match the system voltage and include appropriate safety margins.

Q7: What maintenance is required for AS/NZS 1802 Type 260 mining cables?

A: Regular visual inspections should check for physical damage to the outer sheath, signs of overheating, deformation of the cable, or exposure of internal components. Periodic insulation resistance testing can identify degradation before failure occurs. Cable support systems should be maintained to prevent excessive tension or bending. Terminations should be inspected for signs of corrosion, overheating, or moisture ingress. Any mechanical damage that exposes the armor or internal components requires immediate attention and potential replacement.

Conclusion

AS/NZS 1802 Type 260 1.1 KV mining cables represent specialized electrical infrastructure designed to meet the extreme demands of modern mining operations. Their armored construction provides the mechanical protection and durability necessary for reliable power transmission in environments where standard cables would quickly fail.

The comprehensive design incorporates multiple features enhancing both operational reliability and safety, including flexible tinned copper conductors, EPR insulation, semiconductor screening systems, integrated earth conductors, monitoring pilots, and heavy-duty sheathing protected by galvanized steel armor.

By selecting the appropriate cable type and voltage rating for each application and following proper installation and maintenance practices, mining operations can ensure safe, efficient, and reliable electrical systems even in the most challenging conditions. This attention to infrastructure quality contributes significantly to operational continuity, equipment longevity, and workplace safety in an industry where electrical system integrity is paramount.
