Understanding AS/NZS 2802 Type 409 Mining Cables: Essential Infrastructure for Safe Mining Operations

Introduction

In the demanding world of mining operations, cables are not merely conduits for power—they are critical lifelines that ensure the continuity, safety, and efficiency of operations in some of the world's most challenging environments. The AS/NZS 2802:2000 standard represents a comprehensive framework governing reeling and trailing cables specifically designed for mining applications, with Type 409 being one of the most versatile configurations within this standard.

Mining environments present unique challenges for electrical infrastructure, combining mechanical stress, exposure to moisture, chemicals, dust, and potential explosive atmospheres. In such conditions, ordinary cables would quickly fail, potentially leading to costly downtime or even catastrophic safety incidents. This is where purpose-built mining cables like Type 409 become indispensable components of modern mining operations.

1. Application Scenarios

Underground Mining

In the confined spaces of underground mines, Type 409 cables serve as heavy-duty trailing cables for essential equipment including:

• Continuous miners that cut through coal seams and rock faces

• Shuttle cars that transport extracted materials from the mining face to conveyor systems

• Load-haul-dump (LHD) machines responsible for moving large volumes of material

The smaller diameter configurations (6-35mm²) of Type 409 cables are commonly deployed for hand-held drills and portable equipment, while larger sizes support heavier machinery.

Surface Mining

Above ground, Type 409 cables play an equally crucial role in powering:

• Draglines used for removing overburden and exposing mineral deposits

• Surface drills creating blast holes and sampling bores

• Mobile earth-moving machinery requiring reliable, flexible power delivery

As specified in the technical documentation, Type 409 is "mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling," making it ideal for applications where the cable must follow equipment movements while withstanding significant mechanical stress.

Other Industrial Use

Beyond traditional mining, Type 409 cables find application in:

• Tunneling operations where conditions mirror those of underground mines

• Heavy industrial environments where cables must resist abrasion, chemicals, and moisture

• Construction sites requiring temporary but robust power distribution

Key Environmental Challenges

Type 409 cables are engineered to withstand:

• High mechanical stress from dragging, crushing, and tension

• Elevated moisture levels and potential submersion in water

• Exposure to corrosive chemicals and petroleum-based fluids

• Temperature extremes ranging from freezing to high heat near machinery

• Potential explosive atmospheres where electrical sparks could trigger disasters

2. Electrical Parameters and Construction Features

Voltage Rating

Type 409 cables are available in voltage ratings from 1.1kV to 22kV, making them suitable for a wide range of mining equipment. The construction varies according to voltage requirements, with higher-voltage variants featuring additional screening and insulation layers.

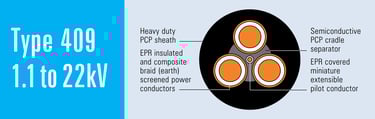

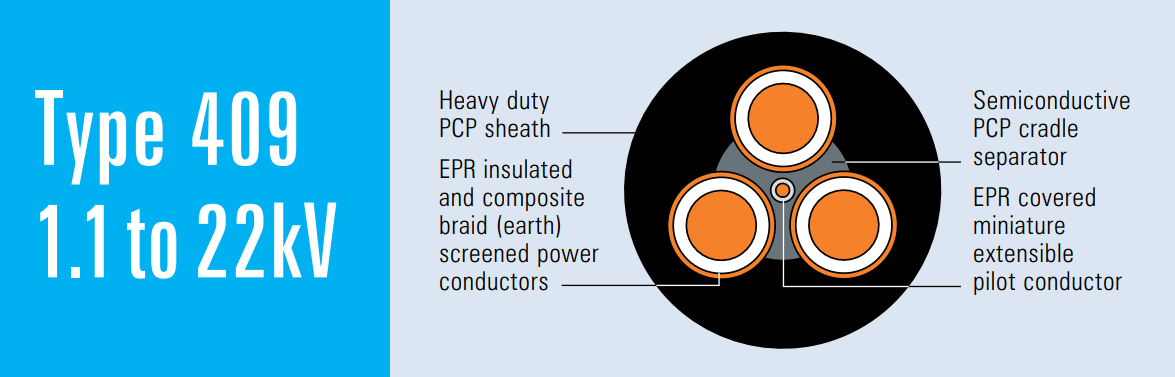

Construction Details

The Type 409 cable features a sophisticated multi-layer design:

• Conductors: Flexible stranded tinned annealed copper conductors, available in sizes ranging from 6mm² to 300mm². The tinning process enhances corrosion resistance and extends service life in harsh mining environments.

• Conductor Screen: For cables rated 3.3/3.3kV and above, a semiconductive compound surrounds the conductors to ensure uniform electrical field distribution, reducing electrical stress.

• Insulation: Ethylene Propylene Rubber (EPR) provides excellent electrical properties along with superior thermal stability. The insulation thickness varies from 1.5mm in lower voltage cables to 10.5mm in higher voltage variants.

• Insulation Screen: A semiconductive elastomer layer encases the insulation, forming part of the cable's electrical field control system.

• Composite Screen (Earth Conductor): Tinned annealed copper braiding interwoven with polyester yarn creates a flexible earth path while adding mechanical reinforcement. The screen area ranges from 7.2mm² to 71.5mm² depending on cable size.

• Cradle Separator: A semiconductive PCP (Polychloroprene) separator organizes and protects the internal components.

• Central Extensible Pilot: An EPR-covered flexible stranded tinned copper conductor runs through the center of the cable, providing control signaling capabilities essential for mining equipment safety systems.

• Sheath: A heavy-duty PCP sheath provides the outer protective layer, with alternative heavy-duty CPE/CSP (Chlorinated Polyethylene/Chlorosulfonated Polyethylene) sheaths available upon request for environments requiring additional chemical or abrasion resistance.

Temperature Range

Type 409 cables typically operate reliably across a temperature range from approximately -25°C to +90°C, making them suitable for both cold-climate open-cut mines and hot underground environments.

Other Notable Features

• Flexibility: The stranded conductor design (featuring between 84 and 854 individual strands depending on cable size) ensures excellent flexibility for moving applications.

• Mechanical Durability: Overall cable diameters range from 30mm for smaller variants to over 114mm for the largest configurations, with correspondingly robust construction.

• Weight Considerations: Weight varies substantially from 129kg per 100m for the smallest Type 409.1 cable to over 2,100kg per 100m for the largest variants—an important factor in cable handling and installation planning.

3. Common Mining Cable Challenges — FAQ Section

Q1: What are the main risks if the wrong cable type is used in mining?

A: Using inappropriate cables in mining environments can lead to numerous hazards:

• Electrical fires due to insulation failure under mechanical stress

• Short circuits from moisture ingress or physical damage

• Equipment malfunctions from inadequate power delivery

• Production losses from unexpected cable failures

• Potential for serious injuries or fatalities from electrical accidents

Type 409 cables are specifically engineered with multiple protective features to mitigate these risks, including reinforced sheaths, moisture barriers, and pilot cores for safety monitoring.

Q2: How does Type 409 handle mechanical stresses like abrasion and crushing?

A: Type 409 cables incorporate several design elements to withstand mechanical abuse:

• Heavy-duty outer sheaths with thicknesses ranging from 3.8mm to 10.7mm

• Flexible stranded conductors that can withstand repeated flexing without fatigue failure

• Composite screens that provide both electrical screening and mechanical reinforcement

• Overall robust construction with diameters up to 114mm that resists crushing

• The interwoven copper/polyester composite screen adds significant tensile strength

These features allow Type 409 cables to survive constant dragging over rough surfaces, impacts from falling rock, and compression from vehicle traffic.

Q3: Can AS/NZS 2802 Type 409 cables be used in wet conditions?

A: Yes, Type 409 cables are specifically designed for wet mining environments:

• The PCP or optional CPE/CSP outer sheaths provide excellent water resistance

• The multi-layer construction prevents water migration along the cable length

• Tinned copper conductors resist corrosion even if moisture penetrates the outer layers

• The cable construction maintains electrical integrity even when submerged temporarily

This moisture resistance is critical in underground mining where water ingress is common and in open-cut operations exposed to rain and standing water.

Q4: How often should mining cables like Type 409 be inspected or replaced?

A: Regular inspection and maintenance schedules should include:

• Visual inspections before each shift for obvious damage

• Comprehensive examinations monthly, including sheath integrity checks

• Electrical testing quarterly, including insulation resistance measurements

• Replacement based on condition rather than fixed schedules, with immediate replacement when any of the following are observed:

  • Cuts or abrasions that expose inner layers

  • Crushed or permanently deformed sections

  • Failed electrical insulation tests

  • Degraded outer sheath flexibility or hardening

Typical service life varies dramatically based on application severity, from 1-2 years in harsh dragline service to 5+ years in less demanding applications.

Q5: What special maintenance procedures should be followed for Type 409?

A: To maximize service life and safety:

• Regularly clean cables to remove abrasive coal dust, dirt, and chemicals

• Store unused cable on properly sized reels to prevent kinking

• Maintain minimum bend radius requirements (typically 6-8 times the cable diameter)

• Train operators to avoid dragging cables over sharp edges

• Implement proper cable management systems to prevent crushing by vehicles

• Test pilot cores and earthing systems regularly to ensure safety systems remain functional

• Document all inspections and test results for regulatory compliance

Q6: Is Type 409 compliant with fire safety requirements?

A: Yes, Type 409 cables meet the fire performance requirements outlined in AS/NZS 2802:

• The standard PCP outer sheath is flame retardant

• Optional CPE/CSP sheaths offer enhanced fire resistance properties

• The cable design limits flame propagation in case of fire

• Smoke emission and toxicity characteristics comply with mining safety regulations

These fire safety features are essential in underground environments where evacuation is difficult and ventilation may be limited.

Conclusion

AS/NZS 2802 Type 409 mining cables represent a specialized solution for one of industry's most demanding applications. Their robust construction, electrical reliability, and resistance to environmental challenges make them indispensable components in modern mining operations.

The selection of the appropriate cable configuration—considering conductor size, voltage rating, and sheath type—plays a direct role in operational safety, efficiency, and cost-effectiveness. While Type 409 cables represent a significant investment compared to general-purpose cables, their specialized design pays dividends through reduced downtime, enhanced safety, and longer service life in punishing mining environments.

By adhering to proper installation practices, regular maintenance routines, and prompt replacement when damage is identified, mining operations can realize the full benefit of these purpose-engineered cables while maintaining the highest standards of workplace safety and operational reliability.
