Understanding AS/NZS 2802 Type 412 1.1/1.1kV Mining Cables

Introduction

In the challenging world of mining operations, reliable power distribution is essential for safety, efficiency, and productivity. Mining cables represent a critical component of this infrastructure, delivering power to various equipment under some of the harshest industrial conditions imaginable. Among these specialized cables, the AS/NZS 2802 Type 412 1.1/1.1kV mining cable stands out as a purpose-built solution designed to withstand the rigors of mining environments.

Standards like AS/NZS 2802:2000 play a crucial role in ensuring these cables meet strict safety and performance requirements. This article explores the Type 412 mining cable: its applications, technical specifications, construction details, and answers to frequently asked questions that mining engineers and technicians might encounter.

Application Scenarios

Mining operations present unique challenges for electrical infrastructure. From dust and moisture to constant movement and physical impact, cables must perform reliably under conditions that would quickly destroy standard industrial wiring.

Mining Environments

Type 412 cables are designed for use across various mining settings:

• Underground mines: Where space is limited, moisture is prevalent, and cables may be subject to rock falls or equipment impacts

• Open-cut mines: Where cables are exposed to weather extremes, UV radiation, and heavy mobile equipment

• Surface installations: Including processing plants and materials handling facilities

Specific Applications

The Type 412 cable is particularly valuable in:

• Power supply to mobile mining equipment: Including drills, loaders, and continuous miners

• Feeder cables in sand mining operations: As specifically noted in the technical documentation

• Installations where mechanical damage is likely: The pliable armoring provides excellent protection against crushing and impact

• Applications requiring flexible, durable connections: The cable's construction allows for movement while maintaining integrity

Key Performance Requirements

In these environments, Type 412 cables deliver:

• Robust mechanical protection: The galvanized steel armoring significantly reduces downtime from cable damage

• Excellent flexibility: Despite the armoring, the cable maintains good handling characteristics

• Chemical resistance: The outer PCP sheath resists oils, chemicals, and moisture common in mining operations

• Flame retardancy: Critical for underground safety in the event of fire

Electrical and Physical Specifications

Voltage Rating

The 1.1/1.1kV rating indicates:

• Nominal line-to-line voltage: 1.1kV

• Maximum operating voltage: 1.1kV

• Suitable for low-voltage power distribution in mining applications

Cable Construction

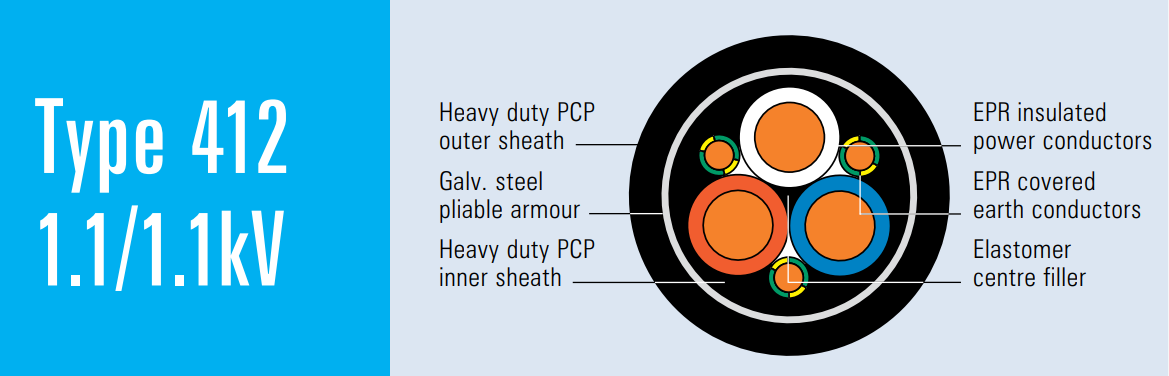

Type 412 cables feature a sophisticated multi-layer design:

1. Conductors: Flexible stranded tinned annealed copper conductor, available in sizes from 16mm² to 300mm²

2. Insulation: Ethylene Propylene Rubber (EPR) with thickness varying from 1.6mm to 3.0mm depending on conductor size

3. Insulation Screen: Semiconductive elastomer for uniform electric field distribution

4. Central Filler: Elastomer center filler maintaining cable geometry

5. Interstitial Earth Conductors: Three EPR-covered flexible stranded tinned copper conductors

6. Inner Sheath: Polychloroprene (PCP) providing initial protection and structural integrity

7. Pliable Armour: Galvanized low carbon (mild) steel strands for superior mechanical protection

8. Outer Sheath: Heavy-duty PCP sheath (with CPE/CSP options available upon request)

Physical Parameters

The cable's physical characteristics vary by conductor size:

• Overall Diameter: Ranges from 38.3mm (16mm² conductor) to 100.9mm (300mm² conductor)

• Weight: From 265kg/100m to 2200kg/100m, increasing with conductor size

• Temperature Rating: The EPR insulation provides excellent thermal stability, typically allowing continuous operation at 90°C

• Bending Radius: Generally 6-8 times the overall diameter, specific to each cable size

Standards Compliance

Type 412 cables meet multiple standards:

• AS/NZS 2802:2000: Main standard for reeling and trailing cables

• AS/NZS 1125: For conductor specifications

• AS/NZS 3808: For insulation and sheath materials

• AS/NZS 5000.1: For general cable requirements

Common Challenges and FAQs

Q1: What makes Type 412 different from other mining cables?

A: Type 412 cables feature a distinctive combination of three power cores, three interstitial earth conductors, and pliable galvanized steel armoring. This construction provides superior mechanical protection compared to unarmored cables, making it ideal for applications where damage is likely. The galvanized steel armoring significantly reduces instances of costly downtime that would otherwise occur with standard cables.

Q2: Can these cables be used in wet or chemically aggressive environments?

A: Yes. The PCP outer sheath provides excellent resistance to moisture, oils, and many chemicals found in mining operations. For particularly aggressive chemical environments, CPE/CSP sheath options can be requested for enhanced protection. The tinned copper conductors also provide additional corrosion resistance compared to bare copper.

Q3: How can I ensure the cable remains functional under mechanical stress?

A: While the pliable armor provides excellent protection, several practices can extend cable life:

• Observe minimum bending radius limits to prevent internal stress

• Use proper cable handling and laying techniques

• Install appropriate cable support systems

• Implement regular inspection schedules

• Avoid dragging cables over sharp edges or abrasive surfaces

• Ensure mobile equipment operators are trained to avoid cable damage

Q4: What happens if the cable overheats?

A: Overheating can accelerate insulation degradation, potentially leading to:

• Reduced cable lifespan

• Increased risk of electrical faults

• In extreme cases, conductor melting or fire

To prevent overheating:

• Size cables appropriately for the current load

• Consider derating factors for ambient temperature and installation method

• Ensure adequate ventilation in cable runs

• Install appropriate overcurrent protection devices

• Monitor cable temperature in critical applications

Q5: Are there specific maintenance requirements?

A: Yes, regular maintenance is essential:

• Visual inspection for outer sheath damage

• Checking for armoring deformation or exposure

• Insulation resistance testing

• Earth continuity verification

• Monitoring for signs of overheating or chemical attack

• Immediate repair or replacement of damaged sections

• Documentation of inspection results and trends

Conclusion

AS/NZS 2802 Type 412 1.1/1.1kV mining cables represent a specialized solution for the demanding conditions of mining operations. Their unique construction with pliable armor provides exceptional mechanical protection, significantly reducing downtime and maintenance costs compared to standard cables.

The selection of the appropriate cable size and configuration should be based on detailed analysis of:

• Electrical load requirements

• Environmental conditions

• Mechanical stress factors

• Flexibility needs

• Expected service life

For optimal performance and safety, it's advisable to consult with certified cable manufacturers or qualified electrical engineers familiar with mining applications during the specification and installation process. Regular inspection and maintenance according to the applicable standards will ensure these cables continue to deliver reliable power distribution throughout the mining operation.

By understanding the unique features of Type 412 cables, mining operators can make informed decisions that enhance safety, reduce downtime, and optimize the performance of their electrical systems in these challenging environments.
