Understanding IEC 60228: The Global Standard for Electrical Cable Conductors

The Foundation of Electrical Infrastructure

Imagine a world where every manufacturer of electrical cables followed their own unique sizing system, where a cable marked as "standard size" in one country would be completely incompatible with installations in another. This chaotic scenario would make international trade nearly impossible, create safety hazards, and leave engineers guessing about the true capabilities of their electrical systems. Fortunately, we live in a world where standardization prevents such confusion, and at the heart of this order lies IEC 60228, one of the most crucial standards governing electrical infrastructure worldwide.

The International Electrotechnical Commission (IEC) 60228 standard serves as the global blueprint for conductor sizes and characteristics in power cables. This seemingly technical document touches every aspect of our electrified world, from the wiring in our homes to the massive cables that carry electricity across continents. Understanding this standard helps us appreciate the remarkable engineering coordination that makes modern electrical systems possible.

The Birth and Scope of a Global Standard

The International Electrotechnical Commission, established in 1906, recognized early in the electrical age that global standardization would be essential for the safe and efficient distribution of electrical power. IEC 60228 emerged from this recognition, developed through decades of international collaboration between engineers, manufacturers, and safety experts from around the world.

This standard specifically addresses insulated power cables, which form the backbone of electrical distribution systems. It's important to understand that IEC 60228 does not cover telecommunications wiring or specialized applications like coaxial cables. Instead, it focuses exclusively on the conductors that carry electrical power, establishing precise specifications for conductor sizes ranging from the smallest residential applications at 0.5 square millimeters up to massive industrial installations requiring conductors of 3,500 square millimeters.

The scope of IEC 60228 encompasses several critical aspects of conductor design. It specifies not only the nominal cross-sectional areas but also the maximum allowable electrical resistance, the number and arrangement of individual wire strands within each conductor, and the acceptable materials for construction. This comprehensive approach ensures that cables meeting the standard will perform predictably regardless of where they are manufactured or installed.

Why Cross-Section Matters More Than Diameter

To truly understand IEC 60228, we must first grasp why electrical engineers focus on cross-sectional area rather than diameter when specifying conductors. This choice reflects fundamental principles of electrical engineering that directly impact safety, performance, and cost.

The cross-sectional area of a conductor determines its current-carrying capacity, which engineers call ampacity. Think of electrical current as water flowing through a pipe. Just as a larger pipe can carry more water, a conductor with a larger cross-sectional area can safely carry more electrical current. This relationship is not merely proportional but follows specific physical laws that make cross-sectional area the most meaningful measurement for electrical applications.

Additionally, the cross-sectional area directly determines the conductor's electrical resistance, which affects both efficiency and heat generation. A conductor with twice the cross-sectional area will have half the resistance, leading to lower power losses and reduced heating. This relationship makes cross-sectional area far more engineering-relevant than diameter, especially when comparing conductors made from different materials or with different strand configurations.

The mechanical properties of conductors also relate more closely to cross-sectional area than to diameter. The tensile strength, weight per unit length, and flexibility characteristics all depend primarily on the total amount of conducting material, which the cross-sectional area measurement captures precisely.

The Standardized Conductor Size Series

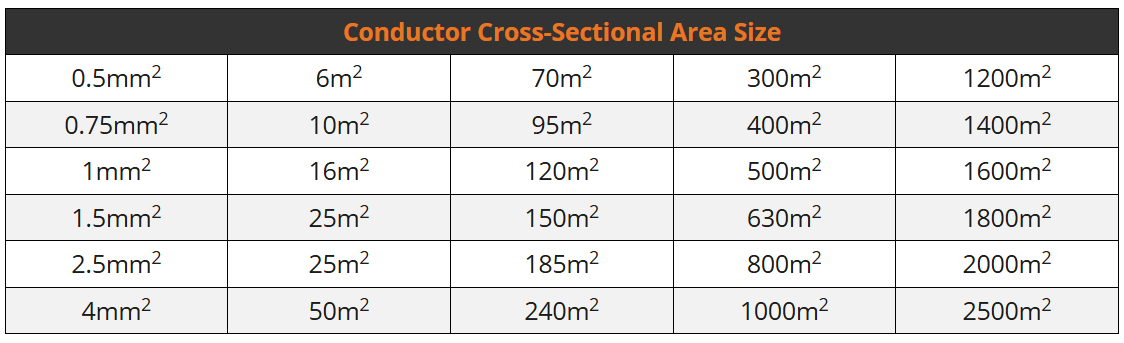

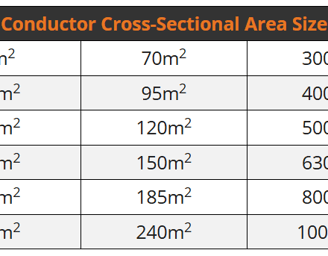

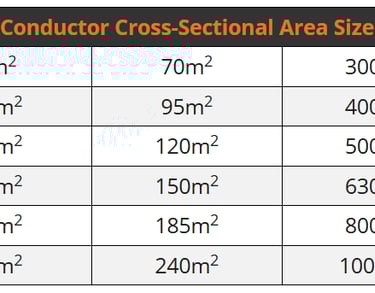

IEC 60228 establishes a carefully chosen series of nominal conductor sizes that spans an enormous range of applications. The standard sizes begin at 0.5 square millimeters, suitable for light-duty residential wiring, and progress through 0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2240, 2500, and up to 3500 square millimeters for the largest power transmission applications.

This series might appear arbitrary at first glance, but it reflects careful engineering considerations. The progression follows approximately a geometric sequence, where each size represents roughly a 25% to 60% increase in cross-sectional area over the previous size. This progression ensures that engineers always have access to a conductor size reasonably close to their calculated requirements without requiring an excessive number of different sizes.

The smaller sizes in the series, from 0.5 to 6 square millimeters, typically serve residential and light commercial applications. These conductors might power household circuits, lighting systems, or small appliances. The middle range, from 10 to 185 square millimeters, covers most industrial and commercial electrical distribution needs, including motor feeds, panel connections, and building main electrical services.

The larger sizes, from 240 square millimeters upward, enter the realm of power transmission and heavy industrial applications. These massive conductors carry electricity between substations, power large industrial facilities, or connect major electrical equipment like transformers and generators. The largest sizes specified in IEC 60228 can carry thousands of amperes safely, making them suitable for the most demanding electrical applications.

Understanding Conductor Classes and Flexibility

One of the most practical aspects of IEC 60228 involves its classification system for conductor flexibility. The standard recognizes that different applications require different levels of flexibility, from permanently installed rigid conductors to highly flexible cables that must withstand constant movement. To address these varied needs, IEC 60228 defines several conductor classes, each with specific strand count and construction requirements.

Class 1 conductors represent the simplest construction: solid, single-wire conductors. These rigid conductors offer the lowest cost and highest current-carrying capacity for their size, making them ideal for permanent installations where flexibility is not required. Think of the solid copper wire used in residential electrical systems, where the conductor is installed once and rarely disturbed afterward.

Class 2 conductors introduce stranded construction for improved flexibility while maintaining suitability for fixed installations. These conductors consist of multiple wire strands twisted together, providing some flexibility for installation while maintaining good electrical and mechanical properties. The stranding also provides redundancy; if one strand breaks, the remaining strands continue to carry current.

Class 5 conductors feature much finer strands and higher strand counts, creating conductors suitable for applications requiring regular flexing. These might include portable power cords, equipment connections that must be occasionally disconnected, or installations where the cable must bend around tight corners during installation.

Class 6 conductors represent the most flexible construction specified in IEC 60228, with very fine wire strands and high strand counts. These conductors can withstand frequent flexing and are often used in applications like welding cables, crane power feeds, or portable electrical equipment that must move regularly during operation.

The strand count and wire diameter specifications for each class ensure consistent performance across manufacturers. For example, a 25 square millimeter Class 5 conductor must contain between 196 and 396 individual strands, each with a diameter between 0.41 and 0.31 millimeters. These precise specifications guarantee that the conductor will have the expected flexibility and electrical properties regardless of which manufacturer produces it.

Materials and Construction Methods

IEC 60228 recognizes several conductor materials, each with specific applications and performance characteristics. Pure copper remains the gold standard for most electrical applications, offering excellent conductivity, corrosion resistance, and mechanical properties. The standard also covers tinned copper conductors, where a thin layer of tin protects the copper from corrosion in harsh environments.

Aluminum conductors offer significant weight and cost advantages over copper, particularly in large sizes used for power transmission. While aluminum has higher electrical resistance than copper, its light weight makes it attractive for overhead power lines and large cable installations where weight matters. IEC 60228 specifies requirements for both pure aluminum and aluminum alloy conductors, with aluminum alloys offering improved mechanical strength at the cost of slightly higher electrical resistance.

The standard also addresses various construction methods beyond simple stranding. Compacted conductors undergo a manufacturing process that compresses the stranded conductor to reduce its overall diameter while maintaining the same cross-sectional area. This compaction allows more conductor material to fit within a given cable diameter, improving current-carrying capacity and reducing material costs.

Milliken-type conductors represent another specialized construction where the individual strands are shaped rather than round. These conductors achieve better packing efficiency and improved electrical properties by using strands with trapezoidal or other optimized cross-sections. While more expensive to manufacture, these conductors offer superior performance in demanding applications.

Electrical Performance Requirements

The electrical performance requirements specified in IEC 60228 ensure that conductors will perform predictably in electrical systems worldwide. The most critical specification involves maximum allowable resistance per unit length, typically expressed in ohms per kilometer at a reference temperature of 20 degrees Celsius.

These resistance limits directly impact system efficiency and safety. Higher resistance leads to greater power losses, increased heating, and reduced voltage at the load end of long cable runs. By specifying maximum resistance values, IEC 60228 ensures that system designers can accurately predict cable performance and losses.

The resistance specifications vary by conductor material and size. Copper conductors have the lowest resistance values, followed by aluminum, with aluminum alloys showing the highest resistance among the materials covered by the standard. For example, a 25 square millimeter copper conductor must have a resistance no greater than 0.727 ohms per kilometer, while the same size aluminum conductor may have up to 1.20 ohms per kilometer resistance.

These specifications also account for the effects of stranding and conductor class. More flexible conductors, with their finer strands and more complex construction, typically have slightly higher resistance than solid or simple stranded conductors of the same nominal size. The standard includes adjustment factors to account for these construction differences while maintaining consistent performance expectations.

Temperature effects on resistance receive careful attention in IEC 60228. All resistance measurements use 20 degrees Celsius as the reference temperature, with correction factors specified for measurements at other temperatures. This standardization ensures that resistance measurements made anywhere in the world can be compared meaningfully.

Global Impact and Practical Applications

The practical implications of IEC 60228 extend far beyond the technical specifications themselves. This standard enables global compatibility between cable manufacturers, electrical equipment designers, and installation contractors. An engineer in Japan can specify a cable using IEC 60228 designations and be confident that a manufacturer in Germany can produce exactly what is needed.

This global compatibility has profound economic benefits. Manufacturers can design and build products for the global market rather than creating different versions for each country. Electrical contractors can work internationally without learning completely different sizing systems. Equipment manufacturers can specify connection requirements that work worldwide.

The standard also serves as the foundation for numerous national standards. The European EN 60228 standard adopts IEC 60228 directly, as does the British BS EN 60228. Many other countries have developed their national standards based on IEC 60228, sometimes with additional requirements for local conditions but maintaining compatibility with the core specifications.

Safety represents another crucial benefit of IEC 60228 standardization. By ensuring consistent conductor properties, the standard helps prevent dangerous situations that could arise from using undersized or inappropriate conductors. Electrical fires, equipment damage, and personal injury risks all decrease when conductors meet predictable performance standards.

The standard also facilitates proper conductor selection for specific applications. Rather than relying on visual appearance or manufacturer claims, engineers can use IEC 60228 classifications to select conductors based on their actual electrical and mechanical properties. This scientific approach to conductor selection improves system reliability and performance.

Evolution and Modern Developments

IEC 60228 continues to evolve as electrical technology advances and new applications emerge. The standard undergoes regular revision cycles, typically every five to ten years, to incorporate new conductor materials, construction methods, and performance requirements.

Recent revisions have expanded coverage to include larger conductor sizes, reflecting the growing scale of power transmission systems and industrial electrical installations. The 2023 edition introduced specifications for conductor sizes up to 3500 square millimeters, enabling standardized specification of cables for the largest power transmission projects.

New conductor types also receive attention in standard revisions. Advanced aluminum alloys with improved strength and conductivity characteristics have been added to the standard as these materials prove their value in demanding applications. Similarly, new stranding techniques and compaction methods are incorporated as they become commercially viable.

Environmental considerations increasingly influence standard development. Recent revisions include provisions for conductors made from recycled materials, provided they meet the same performance requirements as conductors made from virgin materials. This approach supports sustainability goals while maintaining electrical system reliability.

The standard has also expanded its coverage of conductor marking and identification requirements. Modern electrical systems often contain hundreds or thousands of individual conductors, making proper identification crucial for maintenance and troubleshooting. IEC 60228 now includes detailed requirements for conductor marking that ensure cables can be properly identified throughout their service life.

Testing and quality assurance requirements have become more sophisticated as well. The standard now includes specific procedures for verifying conductor properties, including electrical resistance, mechanical strength, and dimensional accuracy. These testing requirements help ensure that conductors meeting IEC 60228 specifications will perform as expected in real-world applications.

The Future of Conductor Standardization

Looking ahead, IEC 60228 faces several emerging challenges and opportunities. The growth of renewable energy systems creates new requirements for conductor performance, particularly in applications involving variable loads and harsh environmental conditions. Solar panel wiring, wind turbine connections, and energy storage system cables all present unique requirements that may influence future standard revisions.

Smart grid technologies also impact conductor requirements. Modern electrical systems increasingly rely on communication and monitoring capabilities that may require new conductor designs or additional specifications for electromagnetic compatibility. The integration of fiber optic elements within power cables represents one area where IEC 60228 may need to expand its scope.

Electric vehicle charging infrastructure presents another area of rapid growth that may influence conductor standards. High-power charging systems require conductors capable of carrying large currents safely while maintaining flexibility for user handling. These applications may drive development of new conductor classes or construction methods.

Conclusion: The Invisible Foundation of Modern Life

IEC 60228 represents one of those remarkable achievements that remain largely invisible to most people while enabling the comfortable, productive lives we take for granted. Every time we flip a light switch, plug in an appliance, or rely on industrial processes that depend on electricity, we benefit from the careful engineering standardization embodied in this document.

The standard ensures that the conductors carrying electricity throughout our world meet consistent performance requirements, enabling safe, efficient, and reliable electrical systems. It facilitates global trade in electrical equipment and materials while providing the technical foundation for increasingly sophisticated electrical infrastructure.

Perhaps most importantly, IEC 60228 demonstrates how international cooperation and technical expertise can create solutions that benefit everyone. The standard represents decades of collaborative work by engineers, scientists, and safety experts from around the world, all working toward the common goal of safe, efficient electrical power distribution.

As our world becomes increasingly electrified, from transportation systems to heating and cooling to industrial processes, the importance of standards like IEC 60228 will only grow. The foundation laid by this standard will continue to support the electrical infrastructure that powers human progress, often working invisibly but always essential to the modern world we inhabit.

Understanding IEC 60228 helps us appreciate the remarkable coordination and technical expertise that make modern electrical systems possible. Behind every electrical device, every power line, and every electrical installation lies a carefully engineered system built on standards like IEC 60228, ensuring that electricity flows safely and efficiently to power our interconnected world.
