Understanding the BS 6708 Type 7M Mining Cable

Introduction

Mining is a demanding industry that relies on robust and reliable equipment to ensure both productivity and safety. Among the critical components in mining operations are the cables that power heavy machinery, such as coal cutters, excavators, and crushing machines. These cables must withstand harsh conditions, including extreme temperatures, mechanical stress, and exposure to chemicals and moisture. The BS 6708 Type 7M mining cable, compliant with British Standard BS 6708, is a specialized solution designed to meet these challenges. This article explores the applications, specifications, and common questions about the Type 7M cable, providing a comprehensive overview for those interested in mining technology and safety.

The Role of Mining Cables

Mining cables are the lifeline of mining operations, delivering power to equipment in environments where safety is paramount. These cables must be flexible to accommodate movement, durable to resist physical damage, and safe to operate in potentially explosive atmospheres. The Type 7M cable is engineered to meet these requirements, making it a trusted choice for powering critical machinery in both underground and surface mining settings.

Introducing the BS 6708 Type 7M

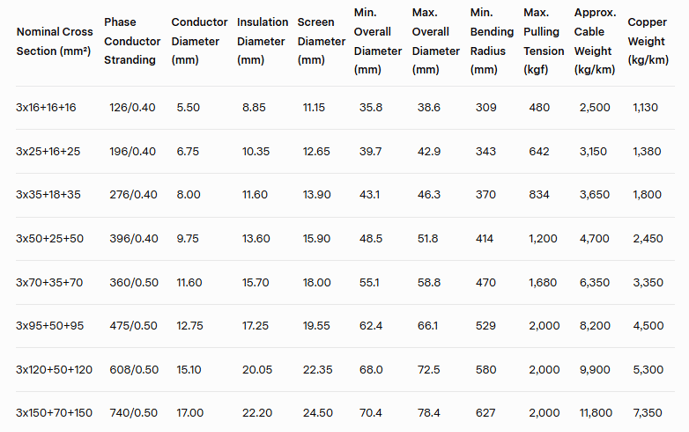

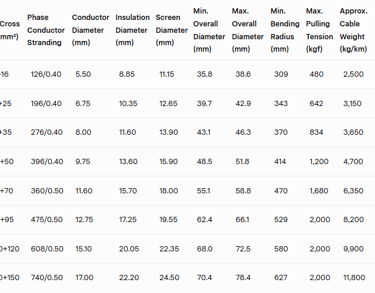

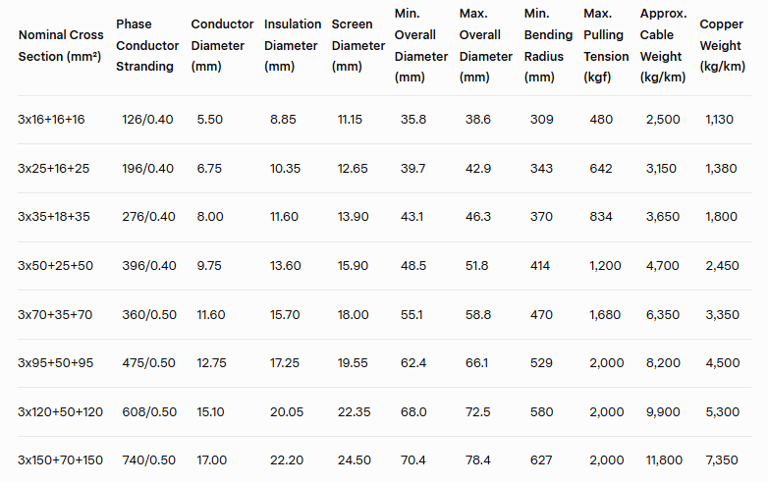

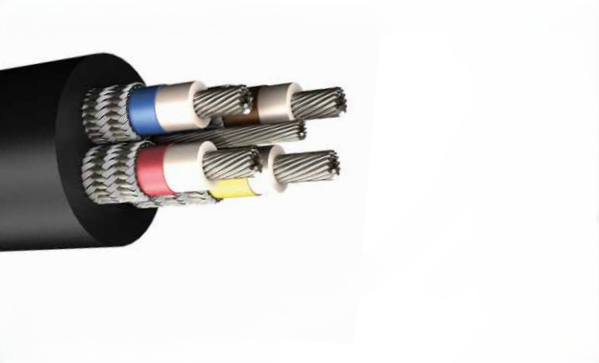

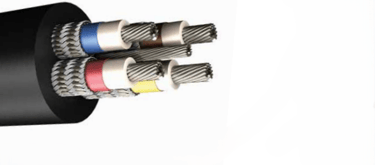

The Type 7M is a flexible trailing cable specifically designed for mining and quarrying environments. It adheres to the rigorous standards set by BS 6708, which specifies requirements for flexible cables used in mines and quarries. Its construction includes high-quality materials and features that ensure reliability, safety, and performance in the toughest conditions. Whether powering a coal cutter in a deep mine or an excavator on a quarry surface, the Type 7M is built to deliver consistent power while prioritizing safety.

Application Scenarios

The BS 6708 Type 7M cable is versatile, serving a range of applications in mining and quarrying operations. Its design makes it suitable for both underground and surface environments, where it powers essential equipment under challenging conditions.

Primary Uses

The primary function of the Type 7M cable is to supply power to heavy mining equipment. This includes:

• Coal Cutters: Used in underground coal mines to extract coal efficiently.

• Excavators: Employed in surface quarries to dig and move earth.

• Crushing Machines: Essential for processing mined materials into smaller sizes.

The cable’s flexibility allows it to be used as a trailing cable, meaning it can be moved or dragged as machinery operates, without compromising its integrity. This makes it ideal for dynamic applications where equipment is frequently repositioned.

Operational Environments

The Type 7M cable is designed to perform in harsh mining environments:

• Underground Mines: In deep mines, the presence of explosive gases and dust poses significant risks. The Type 7M’s construction, including its screened cores and flame-retardant sheath, helps mitigate these hazards, ensuring safe operation.

• Surface Operations: On the surface, the cable is exposed to weather, abrasion, and mechanical stress. Its robust chloroprene sheath protects against these elements, making it suitable for outdoor use in quarries and open-pit mines.

The cable’s ability to operate in temperatures ranging from -20°C to +85°C ensures reliability across various climates, from cold underground tunnels to sun-exposed quarry sites.

Electrical Characteristics

The Type 7M cable’s electrical properties ensure efficient power delivery:

• Continuous Current Rating at 25°C Ambient: Ranges from 85A (16mm²) to 320A (150mm²).

• Intermittent Current Rating at 25°C Ambient: Ranges from 96A (16mm²) to 385A (150mm²).

• Max. DC Resistance at 20°C (Phase/Pilot Conductor): Varies from 1.24 Ω/km (16mm²) to 0.132 Ω/km (150mm²).

• Nominal Reactance at 50Hz: Ranges from 0.109 Ω/km to 0.08 Ω/km.

• Minimum Insulation Resistance at 20°C: 250–435 MΩ·km, depending on the cable size.

• 3-Phase Voltage Drop on Full Load Current: Ranges from 2.62 mV/A/m (16mm²) to 0.32 mV/A/m (150mm²).

These characteristics ensure the cable can handle high power loads while maintaining efficiency and safety.

Frequently Asked Questions (FAQs)

1. What makes the Type 7M cable suitable for mining environments?
   The Type 7M cable’s robust construction, including a heavy-duty chloroprene outer sheath and individually screened cores, provides exceptional resistance to mechanical stress, moisture, and chemical exposure. These features make it ideal for the harsh conditions of mining, where cables are subjected to abrasion, bending, and environmental hazards.

2. Can the Type 7M cable be used in explosive atmospheres?
   Yes, the Type 7M cable is specifically designed for use in environments where explosive gases and dust may be present, such as underground coal mines. Its screened cores and flame-retardant materials help prevent ignition, ensuring safe operation in hazardous areas.

3. How does the cable’s construction enhance safety?
   The individual screening of phase and pilot cores minimizes electromagnetic interference, which can cause equipment malfunctions. The bare earth conductor ensures effective grounding, reducing the risk of electrical faults. Additionally, the chloroprene sheath protects against physical damage, further enhancing safety.

4. What standards does the Type 7M cable comply with?
   The Type 7M cable complies with British Standard BS 6708, which outlines requirements for flexible cables used in mines and quarries. This standard ensures the cable meets rigorous safety and performance criteria.

5. Are there specific installation guidelines for the Type 7M cable?
   Installation should follow manufacturer recommendations, including adhering to the minimum bending radius and avoiding installation at temperatures below 5°C or above 60°C. These guidelines help prevent damage to the insulation and sheath, ensuring the cable’s longevity and performance.

Conclusion

The BS 6708 Type 7M mining cable is a critical component for safe and efficient mining operations. Its specialized design, featuring high-quality materials like tinned copper conductors, EPR insulation, and a chloroprene sheath, ensures durability and reliability in the harshest environments. By complying with BS 6708, the cable meets stringent safety standards, making it suitable for use in explosive atmospheres and rugged surface conditions.

Proper selection and installation of the Type 7M cable are essential for maximizing its performance and ensuring the safety of mining operations. Engineers, safety officers, and mining professionals can rely on this cable to power critical equipment while minimizing risks. As mining continues to evolve, cables like the Type 7M will remain vital to maintaining productivity and safety in this challenging industry.
