Understanding Type W Four-Conductor Flat Portable Power Cable 2kV

Introduction: The Backbone of Heavy-Duty Power Distribution

When you think about the electrical systems that power Australia's massive mining operations, construction sites, and industrial facilities, it's easy to focus on the impressive machinery and sophisticated control systems. However, the unsung heroes of these operations are often the cables themselves - the robust, flexible lifelines that deliver electrical power safely and reliably in some of the harshest environments on Earth.

Among the most critical components in this electrical infrastructure is the Type W Four-Conductor Flat Portable Power Cable rated at 2kV. This specialised cable represents decades of engineering evolution, designed specifically to meet the demanding requirements of industries where failure isn't just inconvenient - it can be catastrophic. Whether you're powering draglines in an open-cut coal mine in Queensland, running equipment in underground gold mines in Western Australia, or operating heavy machinery on construction sites across the continent, understanding the capabilities and proper application of these cables is essential for maintaining safe, efficient operations.

The importance of reliable power distribution in heavy-duty applications cannot be overstated. In mining operations, for instance, a single power failure can halt production worth hundreds of thousands of dollars per hour, not to mention the potential safety implications for workers operating in challenging environments. This is why the Type W Four-Conductor Flat Portable Power Cable has been engineered with such meticulous attention to durability, flexibility, and safety standards.

Applications: Where Robust Power Distribution Matters Most

The Type W Four-Conductor Flat Portable Power Cable 2kV finds its primary application in environments where traditional fixed wiring simply won't suffice. Understanding these applications helps us appreciate why this cable's unique design features are so crucial.

General Industrial Applications

In industrial settings across Australia, these cables serve a vital role where grounding conductors are either not required or not desired in the system design. This might seem counterintuitive at first - after all, we're often taught that grounding is essential for electrical safety. However, in certain industrial configurations, particularly those involving portable equipment or temporary installations, the four-conductor design without a separate ground conductor can actually provide advantages in terms of flexibility and installation efficiency.

Consider a manufacturing facility that regularly reconfigures its production lines. The portable nature of this cable allows maintenance teams to quickly reroute power as machinery is moved or replaced, without the constraints that come with permanently installed conduit systems. The flat profile of the cable is particularly advantageous in these scenarios, as it can be run under temporary flooring or through tight spaces where round cables might prove problematic.

Mining Industry: The Ultimate Testing Ground

The mining industry represents perhaps the most demanding application for the Type W cable. Australian mining operations, from the iron ore mines of the Pilbara to the coal fields of the Hunter Valley, present unique challenges that test every aspect of a cable's design.

In surface mining operations, these cables must withstand not only the mechanical stresses of being moved frequently as equipment repositions, but also exposure to extreme weather conditions, abrasive dust, and potential chemical contamination from mining processes. The cables often power massive equipment such as electric shovels, conveyor systems, and drilling rigs, where reliable power delivery is absolutely critical.

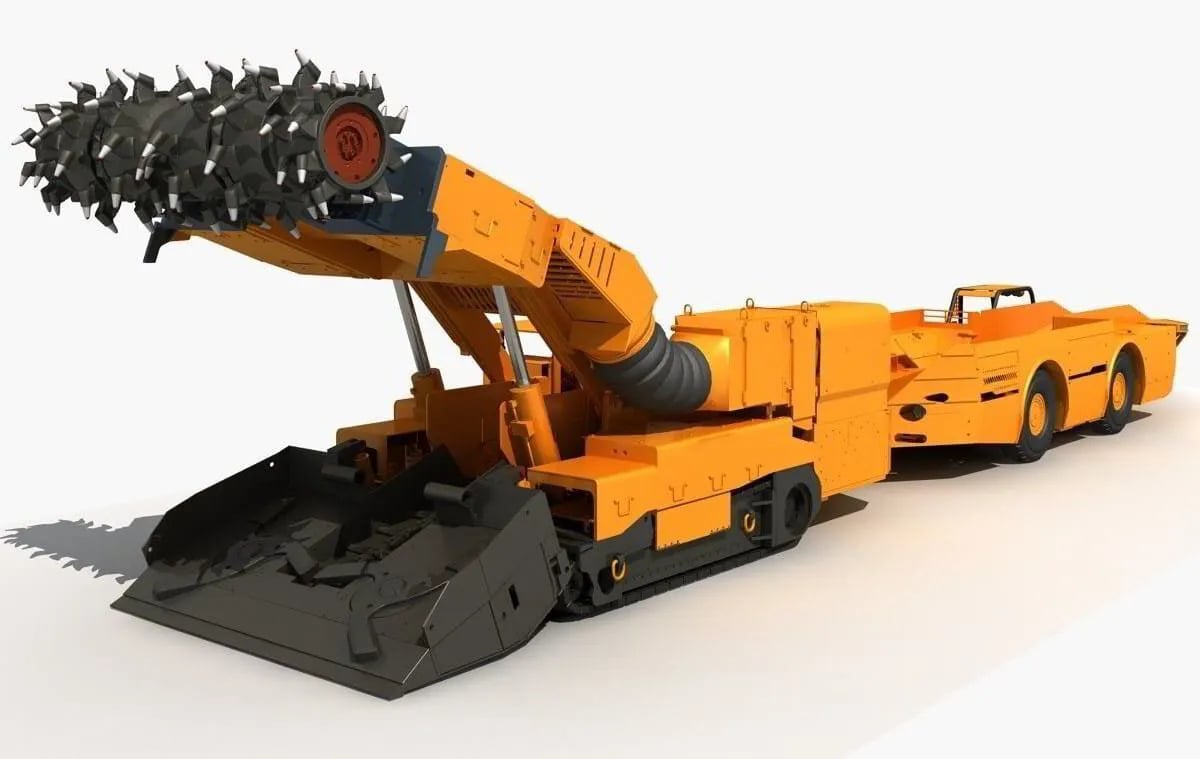

Underground mining presents an even more challenging environment. Here, the cables must function in confined spaces with limited ventilation, potential exposure to moisture and corrosive gases, and the constant threat of mechanical damage from rock falls or equipment movement. The flame-retardant properties of the cable jacket become particularly important in these environments, where a fire could trap workers underground.

Construction and Portable Equipment Applications

The construction industry relies heavily on Type W cables for powering portable equipment that must be moved frequently as projects progress. Think about a major infrastructure project like building a new bridge or highway - the equipment needs change location regularly, and the power distribution system must be flexible enough to accommodate these changes quickly and safely.

Generators, air compressors, welding equipment, and portable lighting systems all benefit from the durability and flexibility that Type W cables provide. The flat profile is particularly advantageous on construction sites, where cables often need to cross walkways or be temporarily buried under other materials.

Construction and Material Specifications: Engineering for Extremes

Understanding the construction of the Type W Four-Conductor Flat Portable Power Cable requires examining each component and how they work together to create a cable that can withstand extreme conditions while maintaining electrical integrity.

Conductor Design: The Heart of Power Transmission

The conductors in Type W cables are manufactured from stranded annealed tinned copper, a choice that reflects careful consideration of both electrical and mechanical requirements. Let's break down why each aspect of this specification matters.

The use of copper as the base conductor material provides excellent electrical conductivity, ensuring efficient power transmission with minimal losses. However, raw copper has limitations in harsh environments - it's susceptible to corrosion and can become brittle over time. This is where the annealing and tinning processes become crucial.

Annealing involves heating the copper to relieve internal stresses and improve flexibility. This process is essential for cables that will be bent, coiled, and manipulated regularly throughout their service life. The stranded construction further enhances flexibility by allowing individual copper strands to move independently as the cable flexes, distributing mechanical stress across many small conductors rather than concentrating it in a single solid conductor.

The tinning process applies a thin layer of tin to each copper strand, providing corrosion protection while maintaining excellent electrical conductivity. This is particularly important in mining and marine applications where moisture and corrosive chemicals are common.

Insulation System: Managing Electrical Stress

The insulation system in Type W cables utilises EPR (Ethylene Propylene Rubber), a material chosen for its exceptional combination of electrical and thermal properties. EPR insulation provides several critical advantages over alternatives like PVC or XLPE.

From an electrical standpoint, EPR offers excellent dielectric strength, meaning it can withstand high electrical stress without breakdown. This is crucial for a 2kV-rated cable, where electrical stress concentrations could lead to insulation failure and potentially dangerous fault conditions.

Thermally, EPR maintains its properties across a wide temperature range, from the sub-zero conditions that might be encountered in some mining operations to the elevated temperatures that can result from high current loading. The 90°C maximum operating temperature rating allows for substantial current-carrying capacity while maintaining long-term reliability.

Perhaps most importantly, EPR retains its flexibility even after extended exposure to heat, UV radiation, and mechanical stress. This is critical for portable cables that undergo frequent handling and repositioning.

Outer Sheath: The First Line of Defence

The outer sheath of the Type W cable utilises reinforced CPE (Chlorinated Polyethylene), representing the cable's primary defence against environmental hazards. Understanding the properties of CPE helps explain why it's become the material of choice for demanding applications.

CPE provides exceptional resistance to abrasion, which is crucial when cables are dragged across rough surfaces or subjected to mechanical stress from equipment movement. The material also offers outstanding chemical resistance, protecting the cable from oils, solvents, and other chemicals commonly encountered in industrial environments.

Weather resistance is another key property of CPE. The material maintains its integrity when exposed to UV radiation, ozone, and temperature extremes, ensuring that cables can be used in outdoor applications without degradation.

The reinforced construction of the CPE jacket often includes embedded fibres or other strengthening materials that enhance tear resistance and overall mechanical integrity. This reinforcement is particularly important in mining applications where cables might be subjected to sharp rocks or heavy equipment.

Optional Upgrades and Customisation

Recognising that different applications may require enhanced protection, manufacturers offer several optional upgrades to the standard Type W construction. Dual-layer jackets with reinforcing fibre between layers provide additional mechanical protection for the most demanding applications.

Alternative sheath materials including CSP (Chlorosulfonated Polyethylene), PCP (Polychloroprene), NBR (Nitrile Rubber), and PVC can be specified based on specific environmental requirements. Each material offers different advantages - for example, NBR provides enhanced oil resistance, while CSP offers superior flame resistance.

Electrical and Mechanical Properties: Performance Parameters That Matter

The electrical and mechanical properties of Type W cables represent the culmination of careful engineering design, balancing multiple requirements to create a cable that performs reliably in demanding applications.

Voltage Rating and Electrical Performance

The 2,000-volt rating of Type W cables positions them perfectly for medium-voltage applications common in heavy industry. This voltage level provides several advantages over both lower and higher voltage alternatives.

Compared to 600V cables, the higher voltage rating allows for more efficient power transmission over longer distances with reduced current requirements. This translates to smaller conductor sizes for equivalent power levels, reducing cable weight and cost while improving handling characteristics.

The 2kV rating also provides a substantial safety margin above typical operating voltages, ensuring reliable performance even under abnormal system conditions. This safety margin is particularly important in portable applications where cables may be subjected to voltage transients or other electrical stresses.

Temperature Considerations and Thermal Management

The maximum operating temperature of 90°C represents a careful balance between current-carrying capacity and long-term reliability. Higher temperature ratings would allow for increased ampacity but at the cost of reduced insulation life and increased safety risks.

The EPR insulation system maintains its electrical properties even at elevated temperatures, ensuring that the cable can handle high current loads without compromising safety or reliability. This is particularly important in mining applications where cables may be required to operate at full capacity for extended periods.

Understanding temperature derating is crucial for proper cable application. While the cable is rated for 90°C conductor temperature, ambient conditions above the standard 40°C will reduce the allowable current-carrying capacity. This is particularly relevant in Australian mining operations where ambient temperatures can be quite high.

Mechanical Properties and Installation Considerations

The minimum bending radius specification of 6 times the outer diameter reflects the balance between cable flexibility and protection of internal components. Exceeding this bending radius during installation or operation can lead to conductor damage, insulation stress, or jacket cracking.

For a typical 2×2/0 AWG cable with an outer diameter of approximately 1.65 inches, the minimum bending radius would be approximately 10 inches. While this might seem restrictive, it's actually quite reasonable for a cable of this construction and voltage rating.

The flat profile of Type W cables provides significant advantages in terms of space utilisation and installation flexibility. Unlike round cables of equivalent capacity, flat cables can be installed in narrow spaces, under grating, or in areas where headroom is limited.

Ampacity Ratings and Current-Carrying Capacity

The ampacity ratings for Type W cables are based on specific standard conditions: 90°C conductor temperature and 40°C ambient air temperature, as per ICEA S-75-381 standards. Understanding these ratings and how they apply in real-world conditions is crucial for safe and efficient cable application.

For example, a 2×2/0 AWG configuration carries 250 amperes under standard conditions. This rating assumes free air installation with adequate ventilation for heat dissipation. In buried or enclosed installations, derating factors must be applied to ensure safe operation.

The relationship between conductor size and ampacity isn't linear due to the physics of heat generation and dissipation. Larger conductors have proportionally less surface area for heat dissipation, which is why the ampacity doesn't simply double when the conductor cross-sectional area doubles.

Compliance and Standards: Ensuring Safety and Reliability

The extensive list of standards that Type W cables must meet reflects the critical nature of their applications and the need for consistent, reliable performance across different manufacturers and applications.

ICEA S-75-381 and NEMA WC 58 Standards

These standards, developed by the Insulated Cable Engineers Association and the National Electrical Manufacturers Association respectively, establish comprehensive requirements for portable power cables. They cover everything from conductor construction and insulation thickness to jacket material properties and testing requirements.

Compliance with these standards ensures that cables from different manufacturers will have consistent performance characteristics and can be used interchangeably in applications. This standardisation is crucial for mining companies and industrial facilities that may source cables from multiple suppliers.

ASTM Standards for Material Properties

ASTM B172 and ASTM B33 standards govern the properties of the tinned copper conductors used in Type W cables. These standards specify requirements for conductivity, tensile strength, and corrosion resistance that ensure consistent electrical and mechanical performance.

The importance of these standards becomes apparent when considering the long service life expected from Type W cables. Over years of service, conductor properties must remain stable to maintain safe current-carrying capacity and mechanical integrity.

Canadian Standards Association Requirements

CAN/CSA C22.2 No. 96 provides additional requirements particularly relevant for cables used in harsh environments. This standard includes specific requirements for low-temperature performance, flame resistance, and chemical compatibility that are particularly relevant for mining applications.

The inclusion of Canadian standards reflects the similar environmental challenges faced by mining operations in both countries and ensures that cables meeting these requirements will perform reliably in demanding conditions.

Mining Use Cases: Real-World Challenges and Engineering Solutions

The mining industry provides the ultimate test for Type W cables, presenting a combination of environmental and operational challenges that push these cables to their limits. Understanding these challenges and how the cable design addresses them provides insight into the engineering excellence required for success in these applications.

Underground Mining: Confined Space Challenges

Underground mining operations present unique challenges that surface applications rarely encounter. The confined nature of underground workings means that cable failures can have severe consequences, potentially trapping workers or disrupting critical ventilation systems.

Moisture control becomes critical in underground environments where humidity levels can approach 100% and water infiltration is common. The CPE jacket's water resistance is crucial, but equally important is the cable's ability to function reliably even when surface moisture is present. The jacket must not only resist water penetration but also maintain its mechanical properties when wet.

Flame resistance takes on added importance underground where evacuation routes may be limited. The CPE jacket's flame-retardant properties and low smoke generation characteristics can be literally life-saving in the event of a fire. The cable's design minimises the risk of contributing to fire spread while reducing toxic smoke generation that could impair evacuation efforts.

Surface Mining: Extreme Environmental Exposure

Surface mining operations expose cables to the full range of environmental extremes, from blazing sun to driving rain, from abrasive dust to chemical contamination. The Type W cable's construction must withstand all these challenges while maintaining reliable electrical performance.

UV resistance becomes crucial when cables are exposed to intense sunlight for extended periods. The CPE jacket includes UV stabilisers that prevent degradation from solar radiation, ensuring that the cable maintains its mechanical properties throughout its service life.

Chemical resistance is tested by exposure to various mining chemicals, from diesel fuel spills to processing chemicals that might contaminate work areas. The broad chemical resistance of CPE provides protection against most common contaminants encountered in mining operations.

Mechanical Stress and Handling Requirements

Mining equipment operates under extreme conditions, and the cables that power this equipment must be equally robust. Cables may be dragged across rough terrain, subjected to crushing forces from heavy equipment, or abraded by constant movement across abrasive surfaces.

The reinforced construction of Type W cables distributes mechanical stresses throughout the cable structure, preventing localised damage that could lead to electrical failure. The stranded conductor construction allows the cable to flex repeatedly without conductor fatigue, while the robust jacket protects against abrasion and mechanical damage.

Temperature Management in Extreme Conditions

Mining operations often involve temperature extremes that challenge cable performance. In underground operations, geothermal heating can create high ambient temperatures, while surface operations in some regions may expose cables to sub-zero conditions.

The EPR insulation system maintains its properties across this wide temperature range, ensuring reliable electrical performance regardless of environmental conditions. The 90°C temperature rating provides adequate margin for high-current applications even in elevated ambient temperatures.

Frequently Asked Questions: Practical Guidance for Mining Applications

Understanding the practical aspects of Type W cable application requires addressing the common questions and concerns that arise in real-world mining operations.

Moisture and Abrasion Resistance in Underground Conditions

The question of whether Type W cables can handle underground mining conditions reflects the critical importance of reliable power distribution in these challenging environments. The CPE jacket provides exceptional water resistance, maintaining its integrity even when subjected to constant moisture exposure. This isn't just about preventing water ingress - it's about ensuring that the cable's mechanical properties don't degrade when wet.

Abrasion resistance is equally critical, as underground cables often contact rough rock surfaces or are subjected to mechanical stress from equipment movement. The reinforced CPE construction distributes these stresses throughout the jacket structure, preventing localised wear that could lead to jacket failure.

Flame Retardancy and Confined Space Safety

The flame-retardant properties of CPE jackets are crucial for underground mining safety. Unlike some cable materials that can contribute to fire spread, CPE is self-extinguishing and produces minimal smoke when exposed to flame. This characteristic is particularly important in confined underground spaces where smoke generation could impair evacuation efforts.

The low smoke generation property of CPE is achieved through careful selection of jacket compounds that don't produce toxic gases when heated. This attention to safety extends beyond basic flame resistance to consider the broader implications of cable behaviour in emergency situations.

Cold Weather Performance and Flexibility

Australia's mining operations span diverse climatic conditions, and cables must perform reliably across this range. The EPR insulation system maintains its flexibility even at low temperatures, preventing the brittleness that can affect some other insulation materials in cold conditions.

The stranded copper conductor construction also contributes to cold weather performance by allowing individual strands to accommodate thermal contraction without creating stress concentrations that could lead to conductor failure.

Mechanical Stress and Bending Radius Compliance

Understanding the importance of minimum bending radius compliance is crucial for maintaining cable integrity throughout its service life. Exceeding the specified bending radius can create stress concentrations in the insulation system that may not cause immediate failure but can reduce the cable's long-term reliability.

The 6×OD specification provides a practical balance between installation flexibility and cable protection. While this may seem restrictive compared to some other cable types, it's actually quite reasonable given the voltage rating and construction of Type W cables.

Enhanced Protection Options for Severe Service

Recognising that some applications may require protection beyond the standard Type W construction, manufacturers offer various enhanced protection options. Dual-layer sheaths with reinforcing fibre between layers provide additional mechanical protection for applications where cables may be subjected to severe abrasion or crushing forces.

Alternative jacket materials such as PCP (polychloroprene) offer enhanced mechanical properties for applications where standard CPE might not provide adequate protection. These alternatives typically come with trade-offs in other properties, so selection requires careful consideration of the specific application requirements.

Conclusion: The Foundation of Reliable Industrial Power Distribution

The Type W Four-Conductor Flat Portable Power Cable 2kV represents far more than just an electrical component - it embodies decades of engineering evolution focused on meeting the demanding requirements of heavy industry. From the copper mines of South Australia to the coal fields of New South Wales, these cables provide the reliable power distribution that keeps Australia's resource industries operating safely and efficiently.

The comprehensive design of these cables, from the tinned copper conductors to the reinforced CPE jacket, reflects a deep understanding of the challenges faced in real-world applications. Every specification, from the 90°C temperature rating to the 6×OD minimum bending radius, represents careful engineering balancing multiple requirements to create a cable that performs reliably under extreme conditions.

For mining operations, construction companies, and industrial facilities across Australia, understanding the capabilities and proper application of Type W cables is essential for maintaining safe, efficient operations. The investment in quality cables pays dividends through reduced downtime, improved safety, and lower long-term maintenance costs.

As Australia's mining industry continues to evolve, with increased focus on automation and electrification of mining equipment, the role of robust power distribution systems becomes even more critical. Type W cables provide the foundation for these advanced systems, ensuring that the power required for tomorrow's mining operations is delivered safely and reliably.

The combination of standardised performance, proven reliability, and comprehensive protection against environmental hazards makes the Type W Four-Conductor Flat Portable Power Cable 2kV an indispensable component of modern industrial electrical systems. Whether powering a dragline in an open-cut mine or supplying electricity to portable equipment on a construction site, these cables provide the dependable power distribution that keeps Australia's heavy industries moving forward.

Understanding these cables isn't just about technical specifications - it's about appreciating the engineering excellence that enables safe, reliable operation in some of the world's most challenging industrial environments. As we continue to push the boundaries of what's possible in mining and heavy industry, cables like the Type W will continue to provide the essential foundation that makes it all possible.
