What Are MHYV and MHYVP Flame-Retardant Communication Cables for Coal Mines?

Introduction

Underground coal mining operations present some of the most challenging environments for electrical and communication systems. In these harsh conditions, where explosive gases, extreme temperatures, and high humidity are constant threats, the reliability of communication infrastructure becomes a matter of life and death. This is where MHYV and MHYVP flame-retardant communication cables come into play as essential components of modern mining safety systems.

MHYV and MHYVP cables represent a specialized category of communication cables engineered specifically for coal mine environments. These cables are not merely standard communication lines adapted for underground use; rather, they are purpose-built solutions that address the unique challenges of subterranean mining operations. The "MH" designation indicates their mining application, while the "YV" and "YVP" suffixes denote their specific construction characteristics and performance capabilities.

The importance of these specialized cables cannot be overstated in the context of mining safety and operational efficiency. Underground coal mines operate in environments where traditional communication cables would quickly fail due to the combination of mechanical stress, chemical exposure, temperature extremes, and the ever-present risk of fire or explosion. MHYV and MHYVP cables ensure that critical communication links remain operational when they are needed most, enabling real-time monitoring, emergency response coordination, and continuous operational oversight.

Understanding these cables requires appreciation of the unique challenges they must overcome. Unlike surface installations where cables might face weather-related stress, underground mining cables must withstand crushing loads from rock movement, exposure to corrosive mine gases, extreme temperature variations, and the constant threat of fire in an oxygen-rich environment filled with combustible materials.

Product Applications and Core Functions

The applications of MHYV and MHYVP cables in coal mining operations are both diverse and critical to safe mining practices. These cables serve as the nervous system of modern underground mining operations, carrying vital information that keeps miners safe and operations running smoothly.

MHYV cables, which lack the additional shielding layer found in their MHYVP counterparts, are primarily utilized for general signal transmission throughout coal mine installations. These cables excel in environments where electromagnetic interference is minimal and the primary concerns are mechanical durability and flame resistance. Think of MHYV cables as the workhorses of mine communication systems – they provide reliable, straightforward signal transmission for applications such as basic intercom systems, simple monitoring circuits, and general-purpose data transmission between surface and underground facilities.

The construction of MHYV cables makes them particularly suitable for fixed installations where the cable routing is predetermined and unlikely to change frequently. These installations might include permanent communication lines between different levels of a mine, connections to fixed monitoring equipment, or links between control rooms and critical safety systems. The robust yet economical design of MHYV cables makes them an excellent choice for applications where shielding is not a primary concern but reliability and safety remain paramount.

MHYVP cables, distinguished by their additional shielding layer, are designed for more demanding applications where electrical interference poses a significant threat to signal integrity. The "P" in MHYVP stands for "protected" or "paired with shielding," indicating the cable's enhanced ability to maintain signal quality in electrically noisy environments. This shielding becomes crucial in areas of a mine where large electrical equipment operates, such as near conveyor systems, ventilation fans, or electrical substations.

The shielding in MHYVP cables works by creating a conductive barrier around the signal-carrying conductors, effectively creating a Faraday cage that prevents external electromagnetic fields from interfering with the transmitted signals. This is particularly important in coal mines where powerful electrical equipment can generate significant electromagnetic interference that would otherwise corrupt communication signals or cause false readings in monitoring systems.

Both cable types are engineered for fixed installations rather than mobile applications, meaning they are designed to be installed once and remain in place for extended periods. This design philosophy allows for optimization of the cable construction to prioritize durability and long-term reliability over flexibility. The fixed installation approach also enables the use of more robust sheathing materials and construction techniques that might not be suitable for cables that need to flex regularly.

Application Scenarios in Mining Environments

To truly understand the value of MHYV and MHYVP cables, it's essential to examine the specific scenarios where these cables prove their worth in coal mining operations. These scenarios illustrate not just where the cables are used, but why their specialized design is necessary for successful operation.

Underground communication systems represent perhaps the most critical application for these specialized cables. In a coal mine, reliable communication can mean the difference between life and death during emergencies. MHYV and MHYVP cables form the backbone of communication networks that connect surface control rooms with underground work areas, enable communication between different mining crews, and provide emergency communication capabilities throughout the mine structure. These communication systems must function reliably even when other mine systems fail, making the robust design of these cables absolutely essential.

Consider the complexity of a modern coal mine communication system: it might include dozens of communication points spread across multiple levels and several miles of underground tunnels. Each communication point requires a reliable cable connection that can maintain signal integrity despite the challenging environment. The cables must route through areas where they may be subjected to water infiltration, temperature extremes, mechanical stress from mining equipment, and exposure to various chemical compounds present in the mine atmosphere.

Monitoring and control systems in mining operations represent another critical application area where MHYV and MHYVP cables prove indispensable. These systems continuously monitor conditions such as air quality, gas concentrations, temperature, humidity, and equipment status throughout the mine. The data collected by these monitoring systems is transmitted via MHYV and MHYVP cables to surface control centers where it is analyzed and used to make critical safety decisions.

The monitoring systems in coal mines operate continuously, 24 hours a day, seven days a week, often for years without interruption. This continuous operation places enormous demands on the communication cables that carry the monitoring data. The cables must maintain consistent performance over extended periods while subjected to the harsh underground environment. Any failure in these communication links could result in dangerous conditions going undetected, potentially leading to catastrophic accidents.

Data transmission between mining equipment represents a rapidly growing application area as mining operations become increasingly automated and interconnected. Modern mining equipment often incorporates sophisticated control systems that need to communicate with central coordination systems. This communication enables optimized equipment operation, predictive maintenance scheduling, and integration of different mining systems for maximum efficiency.

The environmental conditions in which these cables must operate are particularly challenging and deserve careful consideration. The temperature range of -40°C to +50°C represents extreme conditions that would quickly destroy conventional communication cables. The lower temperature extreme might be encountered in mines located in cold climates or at high altitudes, while the upper extreme can occur in deep mines where geothermal heating becomes significant or in areas near underground fires.

High humidity levels in coal mines create additional challenges for cable performance. Moisture can infiltrate cable jackets and insulation, leading to signal degradation, insulation breakdown, and eventual cable failure. The presence of combustible gases adds another layer of complexity, as any electrical equipment used in these environments must be designed to prevent ignition of potentially explosive atmospheres.

Electrical Parameters and Technical Specifications

Understanding the electrical parameters of MHYV and MHYVP cables is crucial for proper application and system design. These parameters define not just what the cables can do, but how they will perform in specific applications and under various operating conditions.

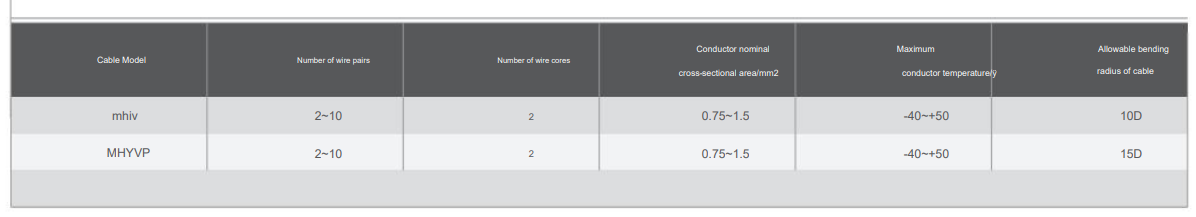

The conductor specifications form the foundation of cable performance. Both MHYV and MHYVP cables are available with 2 to 10 pairs of conductors, providing flexibility in system design to match the specific communication requirements of different applications. This range allows system designers to select the appropriate number of communication channels while minimizing cable bulk and cost.

The conductor cross-sectional area, ranging from 0.75 to 1.5 square millimeters, represents a careful balance between signal carrying capacity and cable practicality. Larger conductor cross-sections provide lower resistance and better signal transmission characteristics, but they also increase cable size, weight, and cost. The selected range provides excellent performance for communication applications while maintaining reasonable cable dimensions for underground installation.

The electrical performance metrics of these cables reveal their sophisticated engineering. The conductor DC resistance varies based on conductor size, following the fundamental electrical principle that resistance is inversely proportional to cross-sectional area. This relationship means that cables with larger conductors will have lower resistance, resulting in less signal loss over long distances.

Insulation resistance at 20°C is specified as greater than or equal to 5000 megaohm-kilometers, which represents exceptionally high insulation quality. This high insulation resistance ensures that signals remain isolated between different conductor pairs and that minimal current leakage occurs between conductors and ground. High insulation resistance is particularly important in coal mine environments where moisture and contaminants could otherwise cause signal degradation.

The capacitance specification of less than or equal to 0.06 microfarads per kilometer at 800 Hz is crucial for high-frequency signal transmission. Lower capacitance values allow better transmission of high-frequency components in communication signals, resulting in clearer voice communication and more accurate data transmission. The 800 Hz test frequency is significant because it represents a frequency commonly used in mining communication systems.

Attenuation, specified as less than or equal to 1.2 decibels per kilometer at 800 Hz, measures how much signal strength is lost as signals travel through the cable. Lower attenuation values mean that signals can travel longer distances before requiring amplification or regeneration. The specified attenuation level allows for effective communication over the distances typically encountered in coal mining operations.

Far-end crosstalk attenuation of greater than or equal to 70 decibels per 500 meters at 800 Hz measures the cable's ability to prevent signals in one conductor pair from interfering with signals in adjacent pairs. Higher crosstalk attenuation values indicate better isolation between conductor pairs, which is essential for maintaining signal quality in multi-pair cables.

Inductance, specified as less than or equal to 800 microhenries per kilometer at 800 Hz, affects the cable's ability to transmit high-frequency signals. Lower inductance values generally provide better high-frequency performance, which is important for digital communication systems and high-quality voice transmission.

The mechanical properties of these cables are equally important as their electrical characteristics. The minimum bending radius specifications – 10 times the cable's outer diameter for MHYV and 15 times for MHYVP – are critical for proper installation and long-term reliability. These specifications ensure that the cable can be installed without damaging the internal conductors or insulation.

The larger bending radius requirement for MHYVP cables reflects their more complex internal construction, which includes the additional shielding layer. This shielding layer, while providing excellent protection against electromagnetic interference, also makes the cable somewhat less flexible than the unshielded MHYV version.

Cable Models and Construction Details

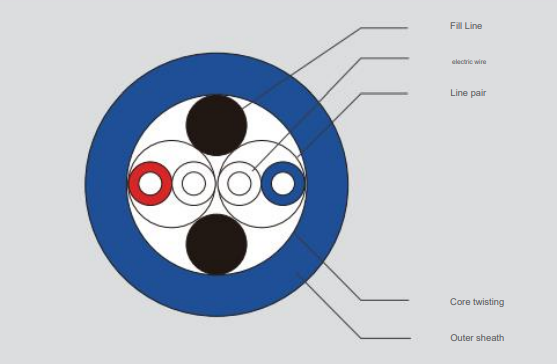

The construction details of MHYV and MHYVP cables reveal the sophisticated engineering that goes into creating communication cables capable of surviving in coal mine environments. Each element of the cable construction serves a specific purpose in ensuring reliable operation under harsh conditions.

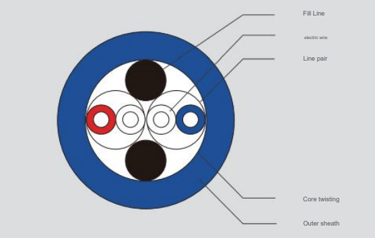

MHYV cables feature polyethylene insulation surrounding each individual conductor. Polyethylene is chosen for its excellent electrical insulation properties, resistance to moisture absorption, and stability over a wide temperature range. The polyethylene insulation maintains its properties even when exposed to the temperature extremes commonly encountered in coal mines, from the freezing conditions that might occur in mines in cold climates to the elevated temperatures found in deep mines.

The outer sheath of MHYV cables is constructed from polyvinyl chloride (PVC), which provides mechanical protection, chemical resistance, and flame retardancy. PVC has proven itself in countless applications as a reliable outer jacket material that can withstand the mechanical stresses of installation and operation while providing protection against moisture, chemicals, and physical damage.

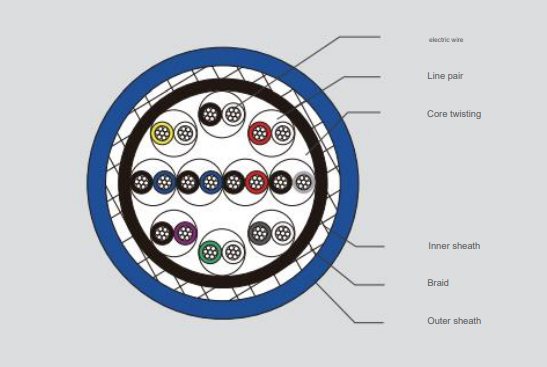

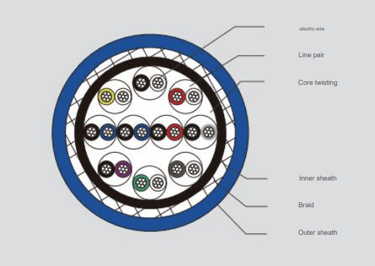

MHYVP cables incorporate the same basic construction as MHYV cables but add a crucial shielding layer between the insulated conductors and the outer sheath. This shielding, typically constructed from aluminum foil or copper tape, provides electromagnetic interference protection by creating a conductive barrier around the signal-carrying conductors.

The shielding in MHYVP cables must be properly grounded to be effective, which means that installation procedures must include provisions for connecting the shield to appropriate ground points throughout the cable run. Proper shield grounding is essential for achieving the electromagnetic interference protection that justifies the additional cost and complexity of MHYVP cables.

Both cable types incorporate flame-retardant properties throughout their construction. This flame retardancy is not achieved through surface treatments that might wear off over time, but rather through the selection of materials that are inherently resistant to ignition and flame propagation. In the event of a fire, these cables are designed to self-extinguish rather than contribute to fire spread.

The flame-retardant properties are particularly important in coal mine applications where the combination of combustible coal dust, flammable gases, and electrical equipment creates significant fire hazards. Cables that could contribute to fire spread or continue burning after the ignition source is removed would represent an unacceptable safety risk in these environments.

Frequently Asked Questions and Problem Solutions

Understanding the common questions and potential issues associated with MHYV and MHYVP cables helps ensure successful application and troubleshooting when problems arise.

What is the main difference between MHYV and MHYVP cables?

The fundamental difference lies in the presence of electromagnetic shielding in MHYVP cables. While both cables share the same basic construction with polyethylene insulation and PVC sheathing, MHYVP cables include an additional metallic shielding layer that protects against electrical interference. This shielding makes MHYVP cables the preferred choice in environments where large electrical equipment operates nearby, such as areas with powerful motors, variable frequency drives, or high-current electrical systems. The shielding effectively creates a protective barrier that prevents external electromagnetic fields from corrupting the communication signals carried by the cable.

Can these cables be used in mobile applications?

MHYV and MHYVP cables are specifically engineered for fixed installations rather than mobile applications. Their construction prioritizes long-term reliability and durability over flexibility, making them less suitable for applications where frequent movement is required. For mobile applications in coal mines, such as connections to mobile mining equipment or temporary installations, other cable types like MHYVR (flexible version of MHYV) or MHYVRP (flexible shielded version) are more appropriate choices. These alternative cables incorporate construction features that provide the flexibility needed for mobile applications while maintaining the safety and performance characteristics required for coal mine environments.

What safety standards do these cables meet?

MHYV and MHYVP cables are manufactured to comply with the MT818-2011 standard, which specifically addresses flame-retardant communication cables for coal mine applications. This standard encompasses not only flame retardancy requirements but also specifications for mechanical properties, electrical performance, and environmental resistance. Compliance with MT818-2011 ensures that the cables meet the stringent safety requirements necessary for use in potentially explosive atmospheres where ignition sources must be carefully controlled. The standard also addresses issues such as gas and moisture resistance, temperature stability, and mechanical durability that are critical for safe operation in coal mine environments.

How do environmental conditions affect cable performance?

Environmental conditions in coal mines can significantly impact cable performance, which is why MHYV and MHYVP cables are specifically designed to operate reliably within a temperature range of -40°C to +50°C. At low temperatures, cable jackets and insulation materials can become brittle, potentially leading to cracking or mechanical failure. At high temperatures, insulation materials may soften or degrade, potentially causing electrical failures. High humidity levels can lead to moisture infiltration, which can cause insulation breakdown, corrosion of metallic components, and signal degradation. The specialized materials and construction techniques used in these cables are specifically chosen to maintain performance across these environmental extremes.

What causes signal degradation in mine communication cables?

Signal degradation in mine communication cables can result from several factors. Moisture infiltration is one of the most common causes, as water can reduce insulation resistance and create signal paths between conductors that should remain isolated. Electromagnetic interference from nearby electrical equipment can corrupt signals, particularly in unshielded cables. Physical damage to cables from mining equipment, rock movement, or improper installation can create signal interruptions or quality degradation. Chemical exposure to mine gases or other contaminants can cause gradual deterioration of cable materials, leading to long-term performance degradation. Proper cable selection, installation techniques, and maintenance practices can minimize these issues.

How should these cables be properly installed in mine environments?

Proper installation of MHYV and MHYVP cables in mine environments requires careful attention to several critical factors. Cable routing must consider potential hazards such as blast areas, equipment movement zones, and areas subject to rock fall or ground movement. Adequate mechanical protection should be provided in areas where physical damage is likely, such as cable trays, conduits, or protective coverings. Proper support spacing must be maintained to prevent excessive mechanical stress on the cables. For MHYVP cables, shield grounding must be implemented according to engineering specifications to ensure electromagnetic interference protection. Installation must also consider the minimum bending radius requirements to prevent damage to internal cable components.

Conclusion

MHYV and MHYVP flame-retardant communication cables represent critical infrastructure components that enable safe and efficient coal mining operations. Their specialized construction addresses the unique challenges of underground mining environments, providing reliable communication capabilities that are essential for operational coordination, safety monitoring, and emergency response.

The distinction between MHYV and MHYVP cables – primarily the presence of electromagnetic shielding in MHYVP variants – allows system designers to select the most appropriate cable type based on specific environmental conditions and application requirements. Understanding the electrical parameters, mechanical properties, and environmental capabilities of these cables is essential for successful system design and installation.

The importance of proper cable selection cannot be overstated in coal mining applications where communication system failures can have serious safety implications. By choosing the appropriate cable type and following proper installation practices, mining operations can ensure reliable communication systems that support both daily operations and emergency response capabilities.

As coal mining operations continue to evolve toward greater automation and integration, the role of specialized communication cables like MHYV and MHYVP becomes increasingly important. These cables provide the foundation for the communication networks that will enable the next generation of mining safety and efficiency improvements, making their proper specification, installation, and maintenance essential elements of modern mining operations.
