What is AS/NZS 1802 Type 241 1.1 kV Mining Cable?

1. Introduction

Mining operations rely heavily on specialized power cables that can withstand harsh environments while maintaining consistent power delivery to critical equipment. These cables must endure constant movement, abrasion, moisture, and mechanical stress while ensuring safe power transmission. The AS/NZS 1802 Type 241 1.1 kV cable is specifically engineered for these demanding conditions. This guide aims to help readers understand the structure, applications, and maintenance of these specialized mining cables.

2. What is AS/NZS 1802 Type 241 1.1 kV Cable?

AS/NZS 1802 Standard

The AS/NZS 1802:2003 standard is a joint Australian and New Zealand standard that specifies requirements for flexible reeling and trailing cables used in mining applications. These cables are designed to provide electrical power in environments where the cable must withstand repeated mechanical stress, bending, and environmental challenges.

Type 241 Explained

Type 241 designates a specific construction of reeling and trailing cable designed for applications requiring extreme flexibility and durability. These cables are built to handle the high mechanical stress of constant movement, making them ideal for mobile mining equipment. The Type 241 series includes several voltage ratings, with 1.1 kV (Type 241.1) being the entry-level option.

1.1 kV Rating

The 1.1 kV rating indicates that these cables are designed for operating voltages up to 1100 volts. This makes them suitable for many standard mining applications while maintaining a balance between insulation requirements and cable flexibility.

3. Application Scenarios

Surface and Underground Mining

Type 241 1.1 kV cables are extensively used in both surface and underground mining operations. They are particularly suitable for powering continuous miners, pump systems, and primary power distribution. Their robust construction makes them ideal for the harsh conditions found in mining environments.

Mobile and Dynamic Equipment

The primary application for these cables is with equipment that requires constant movement of power cables. The document specifically mentions:

• Continuous miners

• Pump cable applications

• Power supply cables

These applications typically involve continuous winding and unwinding of cables, often at speed, requiring exceptional flexibility and mechanical strength.

Environments with High Mechanical Stress

The construction of Type 241 cables, with their reinforced sheathing and multi-layer design, makes them particularly suitable for environments where cables are subjected to pulling, dragging over rough surfaces, and frequent flexing.

Tunneling and Temporary Power Systems

While not explicitly mentioned in the provided document, these cables are also commonly used in tunneling operations and temporary power installations where equipment is frequently relocated as work progresses.

4. Electrical and Mechanical Parameters

According to the provided document, Type 241.1 cables have the following key parameters:

Voltage Rating

1.1 kV (1100 volts)

Conductor

Flexible stranded tinned annealed copper conductors that provide both excellent electrical conductivity and mechanical flexibility. Available in various sizes from 6mm² to 300mm².

Insulation

EPR (Ethylene Propylene Rubber) with thickness varying from 1.5mm for smaller conductors up to 3.0mm for larger ones. EPR offers excellent thermal stability, electrical properties, and resistance to environmental factors.

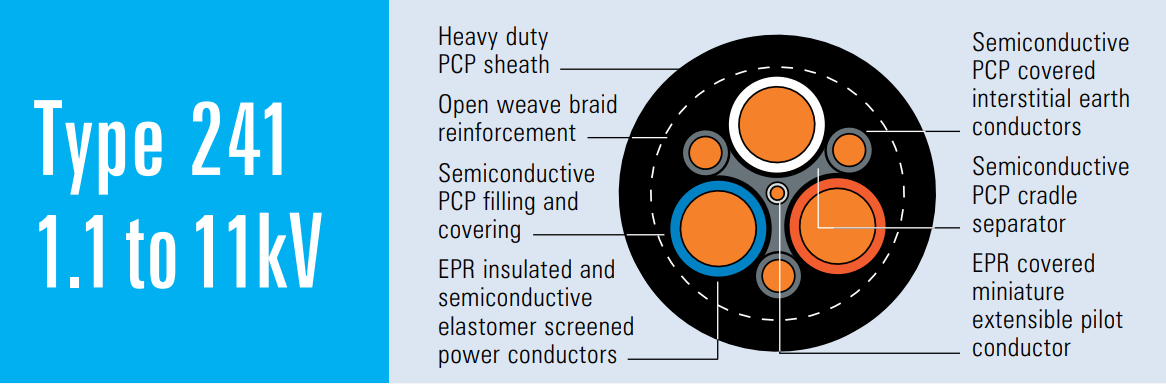

Core Configuration

The standard configuration includes:

• 3× main power conductors

• 3× interstitial earth conductors (semiconductive PCP covered flexible stranded tinned copper)

• 1× central extensible pilot (EPR covered flexible stranded tinned copper)

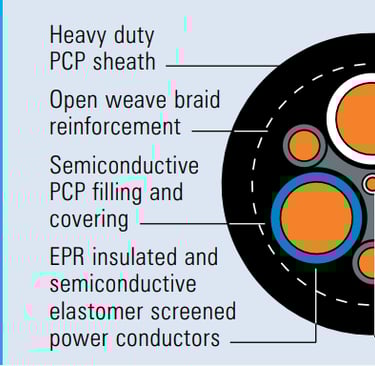

Sheathing and Protection

• Conductor Screen: Semiconductive compound (for cables rated 3.3/3.3kV and above)

• Insulation Screen: Semiconductive elastomer

• Cradle Separator: Semiconductive PCP

• Overall Core Screen: Semiconductive PCP filling and covering

• Textile Reinforcement: Open-weave braid reinforcement

• Outer Sheath: Heavy duty PCP sheath (Heavy duty CPE/CSP available upon request)

Physical Dimensions

The Type 241.1 cables range in diameter from 28.5mm (for 6mm² conductors) to 91.2mm (for 300mm² conductors), with weights ranging from 106 kg/100m to 1600 kg/100m respectively.

5. Common Problems in Mining and Cable Challenges

Cable Twisting or Tangling During Reeling

The multi-layer design with semiconductive screens helps maintain the cable's structural integrity during reeling operations, but proper cable handling systems are still essential.

Solution: Use appropriate cable reeling systems and maintain proper tension during operation.

Abrasion from Movement Over Sharp Surfaces

Mining environments often contain sharp rocks and abrasive surfaces that can damage cable sheaths.

Solution: The heavy-duty PCP sheath provides excellent abrasion resistance. Regular inspection of the outer sheath for signs of wear is recommended.

Heat Buildup in Cables

Electrical resistance in the conductors generates heat, which can be problematic if not properly managed.

Solution: The EPR insulation provides good thermal stability. Additionally, proper sizing of cables for the load is essential to prevent overheating.

Moisture Ingress

Mining environments often contain water and high humidity.

Solution: The multi-layer construction with semiconductive screens and heavy-duty sheath provides good moisture resistance, but proper cable terminations are crucial to prevent water ingress at connection points.

Safety Concerns with Damaged Cables

An important safety feature of these cables is the overall semiconductive screen, which provides protective earth contact if any object breaches the sheath before it contacts the power conductors.

6. Frequently Asked Questions (FAQ)

Q1: What makes Type 241 cables different from other mining cables?

A1: Type 241 cables are specifically designed for reeling and trailing applications with enhanced mechanical strength and flexibility. They feature an overall semiconductive screen for additional safety and are constructed with multiple protective layers to ensure durability in harsh mining environments.

Q2: Can Type 241 1.1 kV cables be used in wet areas?

A2: Yes, they are designed with water-resistant components, but proper terminations are essential to maintain the integrity of the water protection.

Q3: How should these cables be stored when not in use?

A3: These cables should be stored on reels in dry, shaded areas to prevent UV and ozone degradation of the sheath material.

Q4: Are there higher voltage versions of this cable available?

A4: Yes, the document shows that Type 241 cables are available in several voltage ratings:

• Type 241.1: 1.1 kV

• Type 241.3: 3.3 kV

• Type 241.6: 6.6 kV

• Type 241.11: 11 kV

These higher voltage versions have increased insulation thickness to accommodate the higher voltage requirements.

Q5: What standards do these cables comply with?

A5: According to the document, these cables comply with:

• AS/NZS 1802:2003

• AS/NZS 1125

• AS/NZS 3808

• AS/NZS 5000.1

7. Conclusion

AS/NZS 1802 Type 241 1.1 kV mining cables are essential components in the mining industry, providing reliable power delivery in challenging environments. Their specialized construction with multiple protective layers, flexible conductors, and robust sheathing makes them ideal for applications requiring frequent movement and exposure to harsh conditions.

The proper selection of cable size and type is crucial for ensuring safety, performance, and longevity. When specifying mining cables, it's always advisable to consult with certified suppliers or engineers who understand the specific requirements of your application and can recommend the appropriate cable solution.

By understanding the construction, applications, and maintenance requirements of Type 241 cables, mining operations can ensure reliable power distribution while minimizing downtime and safety risks associated with cable failures.
