What is the AS/NZS 2802 Type 440 1.1 to 22kV Mining Cable?

1. Introduction

Mining operations around the world rely on specialized electrical infrastructure to power the heavy machinery and equipment that make modern resource extraction possible. Among the most critical components of this infrastructure are mining cables, specifically engineered to withstand the harsh conditions of both underground and open-cut mining environments.

The AS/NZS 2802 standard represents the Australian and New Zealand specification for reeling and trailing cables used in mining applications. Within this standard, Type 440 cables constitute a specialized category designed to provide reliable power distribution in the voltage range of 1.1kV to 22kV. These cables serve as the lifelines of mining operations, delivering power to mobile equipment while maintaining the highest standards of safety and durability.

2. Application Scenarios

Underground Mining

Type 440 cables are extensively utilized in underground mining operations, powering essential equipment such as shuttle cars that transport coal or ore from the mining face to conveyor systems, drill rigs for exploration and production drilling, and conveyor systems that move materials throughout the mine. Their flexibility and durability make them ideal for equipment that must constantly move and reposition during operations.

Open-Cut Mining

In surface mining environments, Type 440 cables supply power to massive equipment like draglines that remove overburden, mobile substations that distribute power across mining sites, and electric shovels that excavate and load materials. These applications require cables that can withstand significant tensile forces, abrasion, and exposure to environmental elements.

Tunnel Boring Operations

During tunnel construction, Type 440 cables provide temporary power to boring machines, lighting systems, and auxiliary equipment. The cables must perform reliably in dusty, confined spaces with high humidity levels while being repeatedly repositioned as tunneling progresses.

Harsh Industrial Environments

Beyond mining, these cables are suitable for any industrial setting characterized by high mechanical stress, abrasive conditions, and challenging operational parameters. Their robust construction ensures reliability in environments where standard cables would quickly fail.

Key Point: Type 440 cables are engineered specifically for durability, mobility, and resistance to the numerous hazards present in mining environments, including crushing, abrasion, moisture, chemicals, and temperature fluctuations.

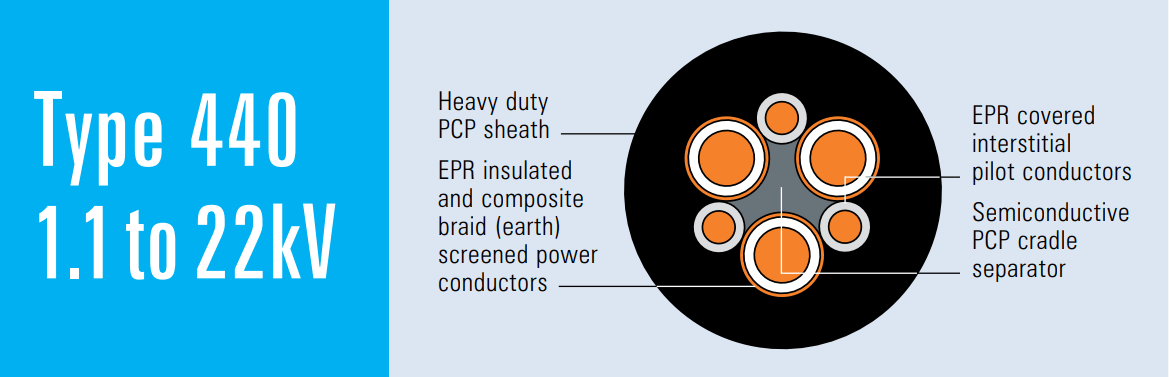

3. Electrical Parameters and Construction

Voltage Ratings

Type 440 cables are available in various voltage ratings from 1.1kV to 22kV AC. According to the documentation, these are categorized as Type 440.1, 440.3, 440.6, 440.11, and 440.22, with the number indicating the approximate voltage rating in kilovolts.

Conductor Types

The cables utilize flexible stranded tinned annealed copper conductors, which provide excellent electrical conductivity while maintaining the flexibility required for reeling and trailing applications. The documentation reveals conductor sizes ranging from 6mm² to 300mm², with strand configurations such as 84/0.30 (84 strands of 0.30mm diameter wire) for smaller cables and 854/0.67 for larger ones.

Insulation

The primary insulation material used is EPR (Ethylene Propylene Rubber), which offers superior electrical properties, flexibility, and resistance to heat. The insulation thickness varies based on voltage rating, from 1.5mm for Type 440.1 cables to 10.5mm for Type 440.22 cables.

Sheath

Type 440 cables feature a heavy-duty PCP (Polychloroprene) outer sheath, with thickness ranging from 3.8mm to 10.7mm depending on the cable size and voltage rating. Heavy-duty CPE (Chlorinated Polyethylene) or CSP (Chlorosulfonated Polyethylene) sheaths can also be offered upon request. These materials provide excellent resistance to flame, oil, chemicals, abrasion, and weather exposure.

Earth and Pilot Cores

The cables include a composite screen serving as an earth conductor, consisting of tinned annealed copper braiding interwoven with polyester yarn. Additionally, three interstitial pilot cores with EPR covering and flexible stranded tinned copper conductors are incorporated for control and monitoring functions.

Core and Insulation Screening

For cables rated 3.3/3.3kV and above, both conductor screening (using semiconductive compound) and insulation screening (using semiconductive elastomer) are applied. These screens ensure uniform electrical stress distribution within the cable, enhancing reliability and safety.

Structural Support

The cables feature a semiconductive PCP cradle separator, which provides support and protection for the power cores. This design element helps maintain the cable's structural integrity during repeated reeling and trailing operations.

Mechanical Strength

With overall diameters ranging from approximately 30mm to 111.2mm and weights from 135kg to 2190kg per 100 meters (depending on specifications), these cables are built to withstand significant mechanical forces while maintaining electrical performance.

4. Mining Cable Challenges: FAQs

Q1: What makes mining cables different from standard industrial cables?

A: Mining cables are engineered to withstand extreme conditions that would quickly destroy standard industrial cables. They feature reinforced construction with heavier insulation and sheathing, more flexible conductors, additional protective layers, and integrated safety features like pilot cores. The specialized design addresses the unique challenges of mining operations: constant movement, crushing forces, abrasion against rock surfaces, exposure to water and chemicals, and the need for fail-safe operation in hazardous environments.

Q2: How do these cables handle mechanical stress from moving equipment?

A: Type 440 cables incorporate several features to manage mechanical stress. Their flexible stranded copper conductors can bend repeatedly without breaking. The heavy-duty outer sheath (3.8mm to 10.7mm thick) protects against abrasion and impact. The semiconductive cradle provides additional structural support to the power cores. The composite screen adds tensile strength while maintaining flexibility. Together, these elements allow the cable to withstand the constant reeling, trailing, and dragging that occurs during normal mining operations.

Q3: What happens if the cable is cut or damaged?

A: The three interstitial pilot cores integrated into Type 440 cables serve a critical safety function. These cores are part of monitoring systems that can detect damage to the cable's integrity. When a fault is detected, the power system can automatically shut down to prevent electrical hazards such as shock, fire, or explosion. This rapid response capability is essential in mining environments where potential ignition sources must be immediately controlled.

Q4: How is water ingress prevented underground?

A: The PCP or optional CPE/CSP outer sheath is inherently water-resistant. The tight construction of the cable, with each layer properly sealed, creates multiple barriers against moisture. While the standard doesn't specifically mention water-blocking features, the overall design minimizes the risk of water penetration that could compromise electrical performance or safety.

Q5: Can these cables be used with variable speed drives (VSDs)?

A: Yes, Type 440 cables can be used with variable speed drives, but care must be taken regarding harmonics and voltage spikes. The semiconductive screening layers help manage electrical stress from the high-frequency components generated by VSDs. For optimal performance and longevity, VSD-rated versions with enhanced insulation properties and screening may be preferred for applications with significant harmonic content.

Q6: What is the service life of a mining cable?

A: Under proper installation, handling, and maintenance conditions, Type 440 mining cables can last 5-10 years or more. However, service life varies significantly based on operating conditions, reeling frequency, exposure to abrasive surfaces, chemical contact, and mechanical stress. Regular inspection for sheath damage, moisture ingress, or conductor issues can help identify potential failures before they occur and maximize the useful life of the cable.

5. Conclusion

The AS/NZS 2802 Type 440 mining cables represent a specialized solution for the demanding power distribution requirements of mining operations. Their robust construction, featuring flexible copper conductors, EPR insulation, semiconductive screening, pilot cores, and heavy-duty outer sheaths, enables reliable performance in environments where standard cables would quickly fail.

Selecting the appropriate mining cable involves careful consideration of voltage requirements, conductor size, flexibility needs, and environmental conditions. The Type 440 range offers options from 1.1kV to 22kV with conductor sizes from 6mm² to 300mm², providing solutions for virtually any mining application.

For mining operations, where downtime means significant financial loss and where electrical safety is paramount, investing in high-quality cables that comply with the AS/NZS 2802 standard ensures both operational efficiency and workplace safety. Always consult with certified suppliers and refer to the latest standards when specifying cables for mining projects to ensure compliance with regulatory requirements and optimal performance in the field.
